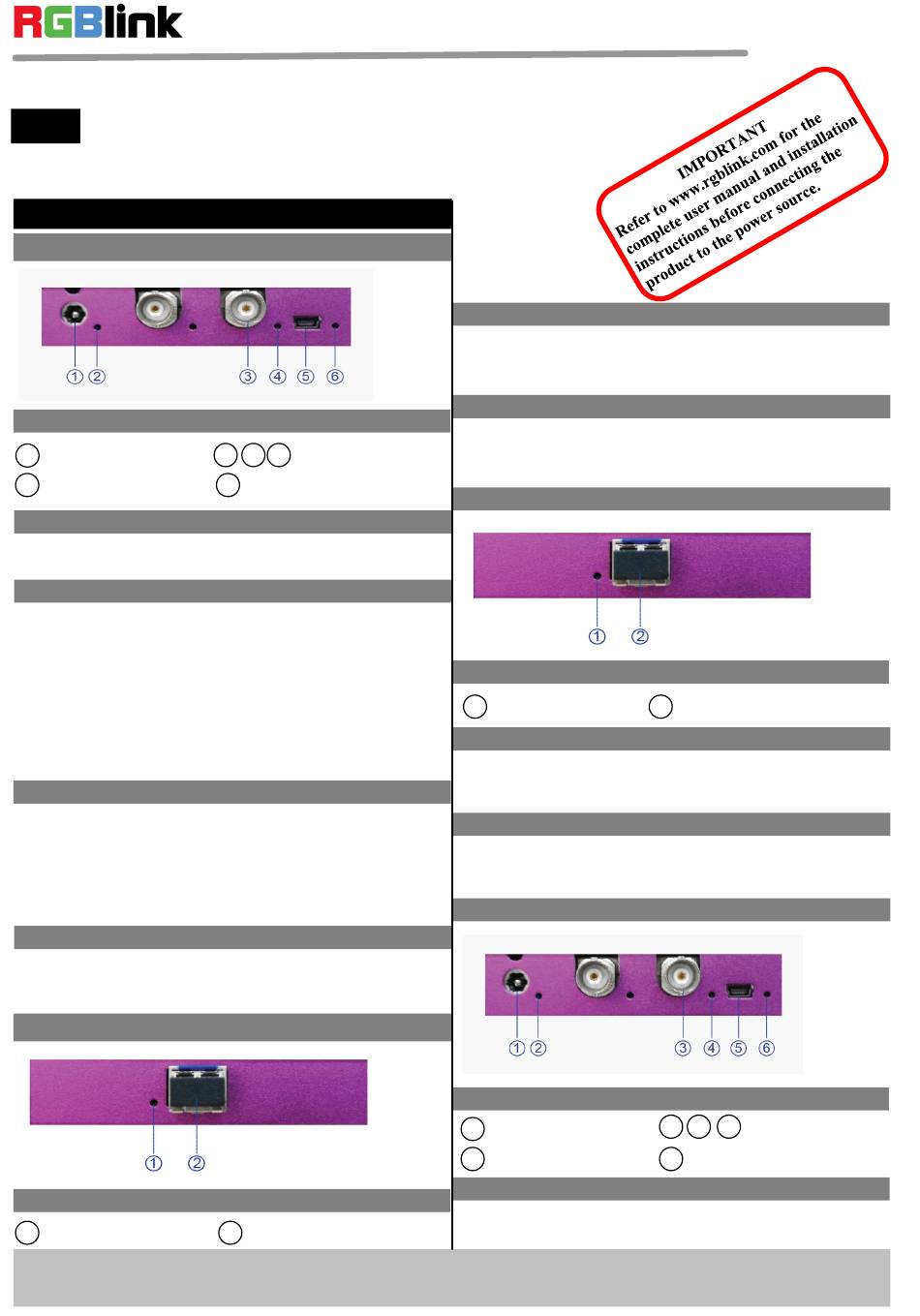

RGBlink MSP 217 Series Quick Start

MSP 217 –
For full installation, configuration, and operation details, please refer to
NOTE
the MSP 217 user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer
to set up and operate the MSP 217.
Interface
MSP 217-TX SDI to Fiber Right Panel
Connection
1
Power Interface
3 SDI Input Interface
Power Interface
The device uses the standard 12V/1.5A power supply.
Signal Indicator
Power indicator 2 lights when device has power
supply.
LED indicator 4 is on when connect SDI cable and
the device is in normal Operation.
LED indicator 6 is on when connect USB cable and
the device is in normal Operation.
SDI Input Interface
SDI input interface Can receive video signal from
HD player, and HD camera, connect interface 16 via
75 ohms impedance BNC port. Connect LED screens
via network cable.
USB Interface
Remote communication device control interface, used
to connect to the computer or console.
MSP 217-TX SDI to Fiber Left Panel
Connection
1 Signal Indicator
Address: S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone, Xiamen, Fujian Province, P.R.C
Tel: 00865925771197
Email: sales@rgblink.com
VIEW SIZE THE WORLD
Quick Start
2 6
4
Signal Indicator
5
USB Interface
2
Fiber Output Interface
Fax:00865925771202
http://www.rgblink.cn
Signal Indicator
LED indicator 1 is on when connect fiber cable and
the device is in normal operation.
Fiber Output Interface
Used to connect fiber cable, the device uses single
mode one-core, LC interface.
MSP 217-RX Fiber to SDI Left Panel
Connection
1 Signal Indicator
Signal Indicator
LED indicator 1 is on when connect fiber cable and
the device is in normal operation.
Fiber Input Interface
Used to connect fiber cable, the device uses single
mode one-core, LC interface.
MSP 217-RX Fiber to SDI Right Panel
Connection
Power Interface
1
SDI Output Interface
3
Power Interface
The device uses the standard 12V/1.5A power supply.
2 Fiber Input Interface
2 4 6 Signal Indicator
USB Interface
5
MSP 217 Quick Start
Page 1 of 2
Rev 1.0
