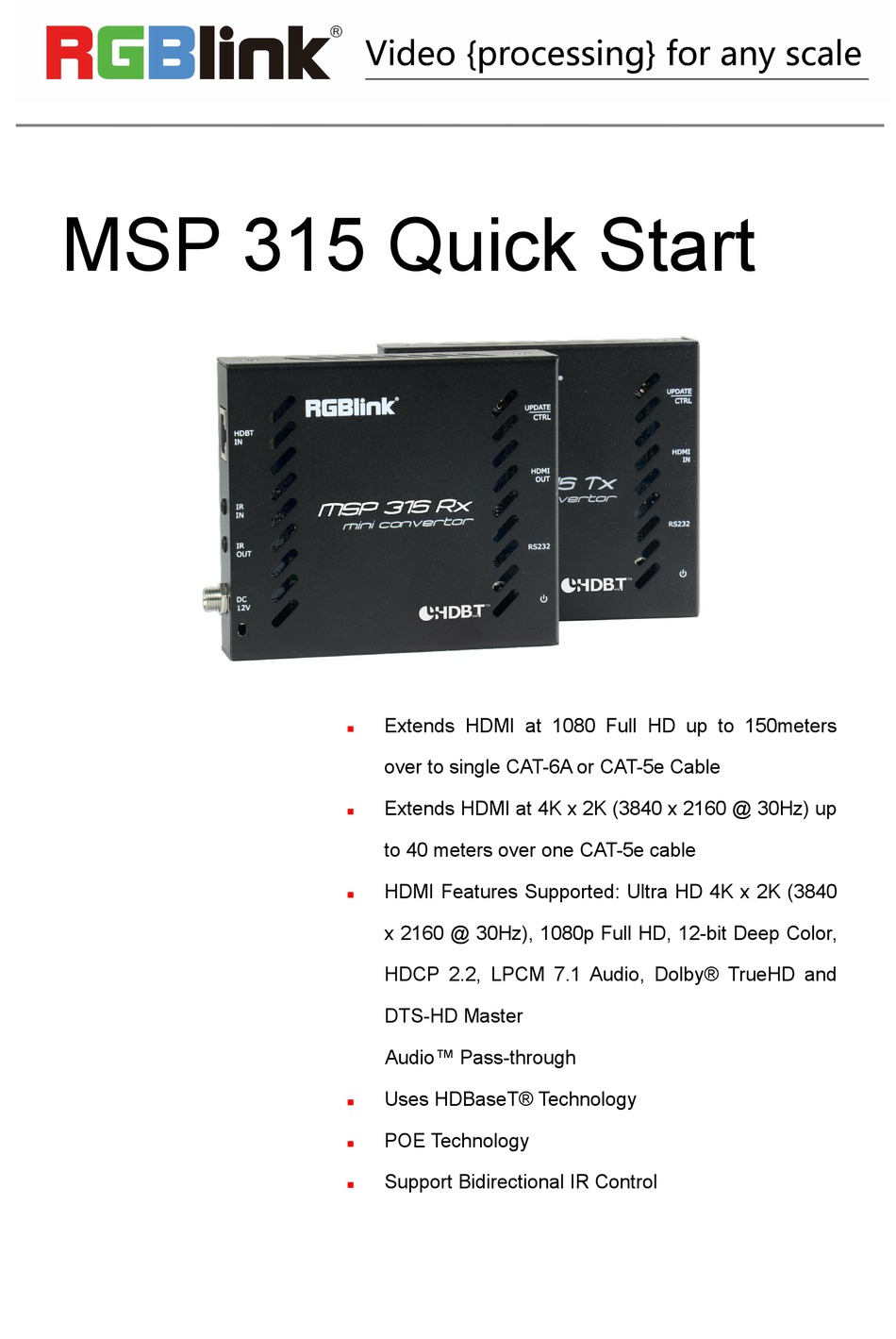

MSP 315 Quick Start
Extends HDMI at 1080 Full HD up to 150meters
over to single CAT-6A or CAT-5e Cable
Extends HDMI at 4K x 2K (3840 x 2160 @ 30Hz) up
to 40 meters over one CAT-5e cable
HDMI Features Supported: Ultra HD 4K x 2K (3840
x 2160 @ 30Hz), 1080p Full HD, 12-bit Deep Color,
HDCP 2.2, LPCM 7.1 Audio, Dolby® TrueHD and
DTS-HD Master
Audio™ Pass-through
Uses HDBaseT® Technology
POE Technology
Support Bidirectional IR Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSP 315 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RGBlink MSP 315

  • Page 1 MSP 315 Quick Start Extends HDMI at 1080 Full HD up to 150meters  over to single CAT-6A or CAT-5e Cable Extends HDMI at 4K x 2K (3840 x 2160 @ 30Hz) up  to 40 meters over one CAT-5e cable HDMI Features Supported: Ultra HD 4K x 2K (3840 ...
  • Page 2: Table Of Contents

    CONTENTS Product Introduction..............................2 Packing Configuration..............................3 Hardware Orientation...............................4 MSP 315 HDMI Extender TX Panel......................4 MSP 315 HDMI Extender RX Panel......................6 Operation Manual..............................8 MSP 315 HDMI Extender TX..........................8 Function Block Diagram.......................... 8 MSP 315 HDMI Extender RX......................... 8 Function Block Diagram.......................... 8 Operating Principle............................9...
  • Page 3: Product Introduction

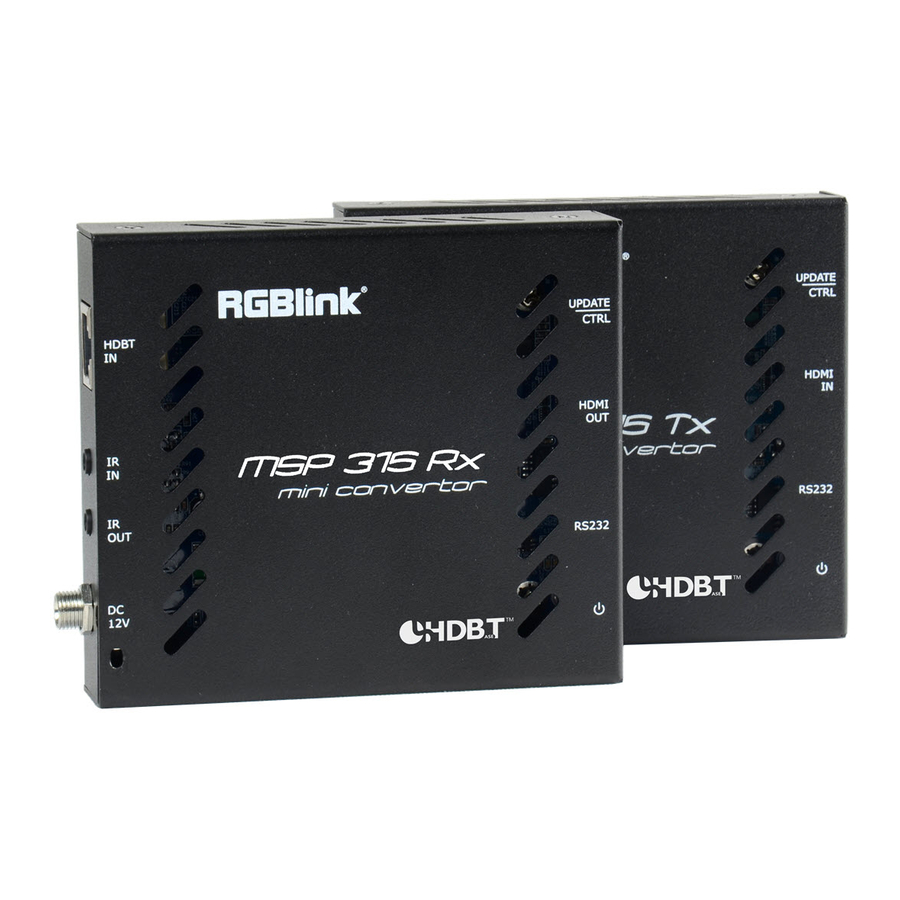

    Product Introduction MSP 315 Extender for HDMI over one CAT5 / CAT6 consists of a Sender (MSP 315 Tx) and a Receiver (MSP 315 Rx) unit, MSP 315 supports resolution up to 4K x 2K (3840 x 2160 @30Hz) and 1080p Full HD, as well as the pass-through of HDCP and High Bit Rate (HBR) lossless audio formats such as Dolby®...
  • Page 4: Packing Configuration

    Packing Configuration Certification Power Cord © Xiamen RGBlink Science & Technology Co., Ltd. 3 / 12 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 5: Hardware Orientation

    Hardware Orientation MSP 315 HDMI Extender TX Panel INTERFACE INTERFACE Power Indicator HDMI Input Interface HDMI-A Port RS232 CTRL/UPDATE © Xiamen RGBlink Science & Technology Co., Ltd. 4 / 12 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 6 INTERFACE INTERFACE HDBaseT Output RJ45 Port IR OUT IR IN CTRL/UPDATE © Xiamen RGBlink Science & Technology Co., Ltd. 5 / 12 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 7: Msp 315 Hdmi Extender Rx Panel

    MSP 315 HDMI Extender RX Panel INTERFACE INTERFACE Power Indicator HDMI Output Interface HDMI-A Port RS232 CTRL/UPDATE © Xiamen RGBlink Science & Technology Co., Ltd. 6 / 12 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 8 INTERFACE INTERFACE HDBaseT Input RJ45 Port IR OUT IR IN CTRL/UPDATE © Xiamen RGBlink Science & Technology Co., Ltd. 7 / 12 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 9: Operation Manual

    Operation Manual MSP 315 HDMI Extender TX Function Block Diagram MSP 315 HDMI Extender RX Function Block Diagram © Xiamen RGBlink Science & Technology Co., Ltd. 8 / 12 Ph: +86 592 5771197 | support@rgblink.com www.rgblink.com...
  • Page 10: Operating Principle

    Operating Principle Connect the output of signal sources such as computers to the "HDMI IN" of the MSP 315 HDMI extender TX with HDMI/HDMI-DVI cable;connect the "HDMI OUT" of the MSP 315 HDMI extender RX to display devices such as LED display/LCD/projector, or to video processers with HDMI/HDMI-DVI cable.
  • Page 11: Dial Switch Function

    CTRL/UPDATE Instructions Operations are as follows : The dial switch upwards is UPDATE, for updating the MSP 315 ; The dial switch downwards is CTRL, for connecting the MSP 315 and computer through the RS232 cable, and use software to control the MSP 315.
  • Page 12: Contact Information

    All video products are designed and tested to the highest quality standard and backed by full 3 years parts and labor warranty. Warranties are effective upon delivery date to customer and are non-transferable. RGBlink warranties are only valid to the original purchase/owner. Warranty related repairs include parts and labor, but do not include faults resulting from user negligence, special modification, lighting strikes, abuse (drop/crush), and/or other unusual damages.
