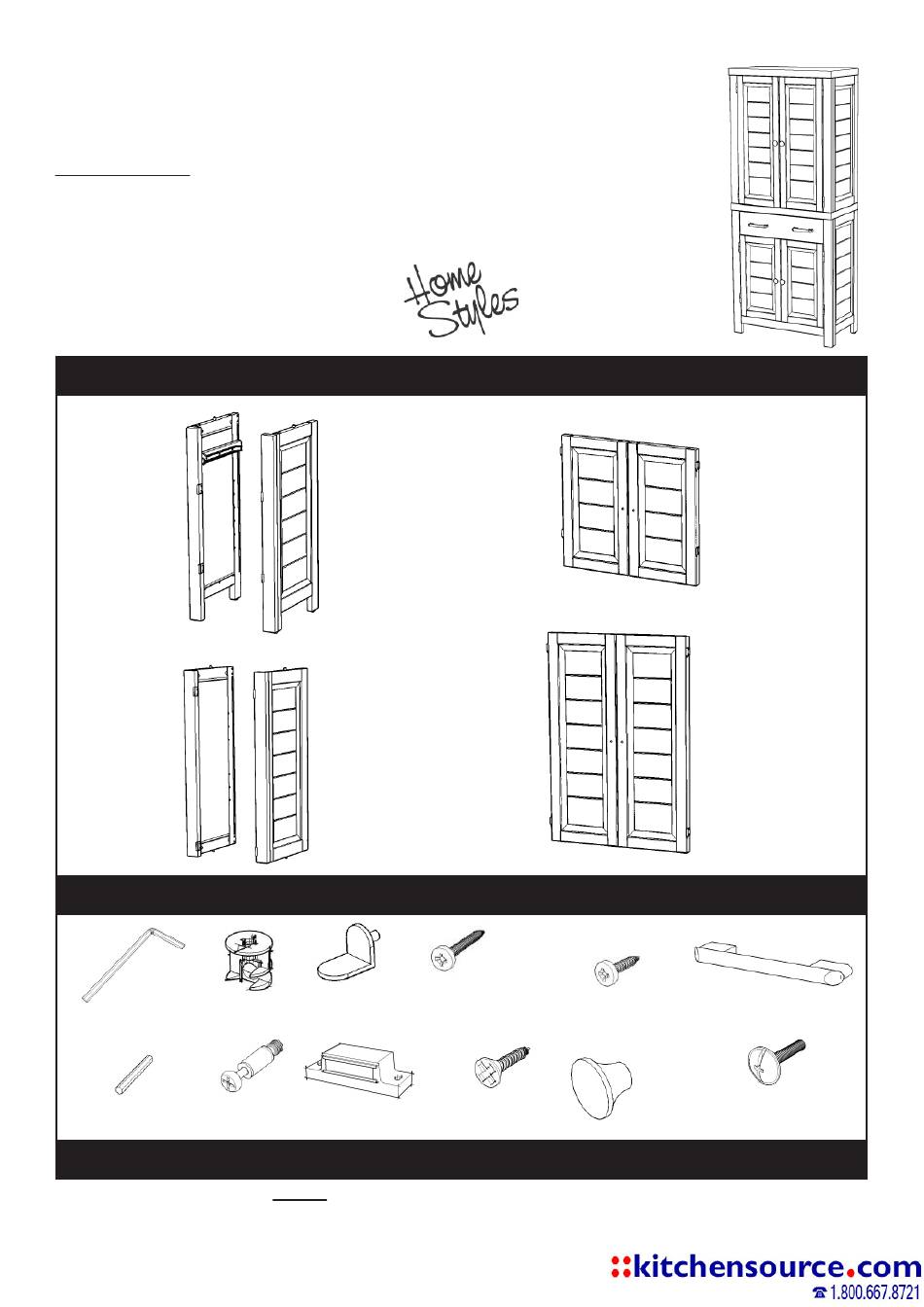

88 5516 653
Barnside Pantry
IMPORTANT NOTE
Carefully remove all the parts from the carton and put
them individually on a soft cloth to prevent scratches
or other damage occurring to the parts.
We have taken great care in the design of this
product and request that you carefully and strictly
follow our assembly instructions to ensure a
completed product as it was designed.
B.
Side Panel
1 Pc.
J.
Side Panel
1 Pc.
Hardware List
Cam Lock
Hex Wrench
30 Pcs. (+6 extra)
1 Pc.
Small Hex Wrench
Cam Lock Screw
1 Pc.
30 Pcs. (+2 extra)
For assembly see instructions in carton 88 5516 654
Tools required for assembly : Phillips screwdriver
C.
Side Panel
1 Pc.
K.
Side Panel
1 Pc.
M3x20
Adjustable Pin
Wood Screw (long)
16 Pcs. (+1 extra)
8 Pcs. (+1 extra)
M3x10
Wood Screw
Magnet
for Magnet
4 Pcs.
8 Pcs. (+1 extra)
M.
Door
1 Pc.
O.
Door
1 Pc.
M3x15
Wood Screw (short)
30 Pcs. (+1 extra)
Door Handle
4 Pcs.
N.
Door
1 Pc.
P.
Door
1 Pc.
Drawer Handle
2 Pcs.
M4x25
Machine Screw
8 Pcs.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Barnside Pantry 88 5516 653 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Styles Barnside Pantry 88 5516 653

  • Page 1 88 5516 653 Barnside Pantry IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damage occurring to the parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 2 88 5516 654 Barnside Pantry IMPORTANT NOTE Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent scratches or other damage occurring to the parts. We have taken great care in the design of this product and request that you carefully and strictly follow our assembly instructions to ensure a completed product as it was designed.
  • Page 3 Assembly Instructions 3 IMPORTANT * Please keep Hex Wrench in a safe place as you may need to tighten up the Head Cap Bolts in the future. * Do not tighten up all the bolts until each part is properly assembled. * Use a soft cloth between these parts and the fl...
  • Page 4 Assembly Instructions 4 STEP 3 Attach Side Panel (C) to unit with Cam Locks. Cam Lock STEP 4 Attach Middle Panel (I) to unit with Cam Locks. STEP 5 Attach Back Stretchers (F) to Side Panel (J) with Cam Locks. Attach Stretcher (E) to Side Panel (J) then slide Side Panels (L) into position.
  • Page 5 Assembly Instructions 5 STEP 6 Attach Top (A) to unit with Cam Lock. Adjustable Pin Figure 3 Figure 4 STEP 7 Attach unit from Step 6 to unit from Step 4 with Cam Locks. Attach Door Handles to Doors (M), (N), (O) and (P) with Machine Screws.
  • Page 6 Assembly Instructions 6 Drawer R STEP 1 Attach R1, R2 and R3 using a Phillips screwdriver and long wood screws Figure 1 (4X), tighten halfway. MAKE SURE ROLLER IS ON THE BACK Attach R1, R2 and R4 using long wood screws (4X), tighten halfway. (See Figure 1) STEP 2 Slide R5 into grooves in R3 and R4.
