Summary of Contents for Flightline F8F-1 BEARCAT

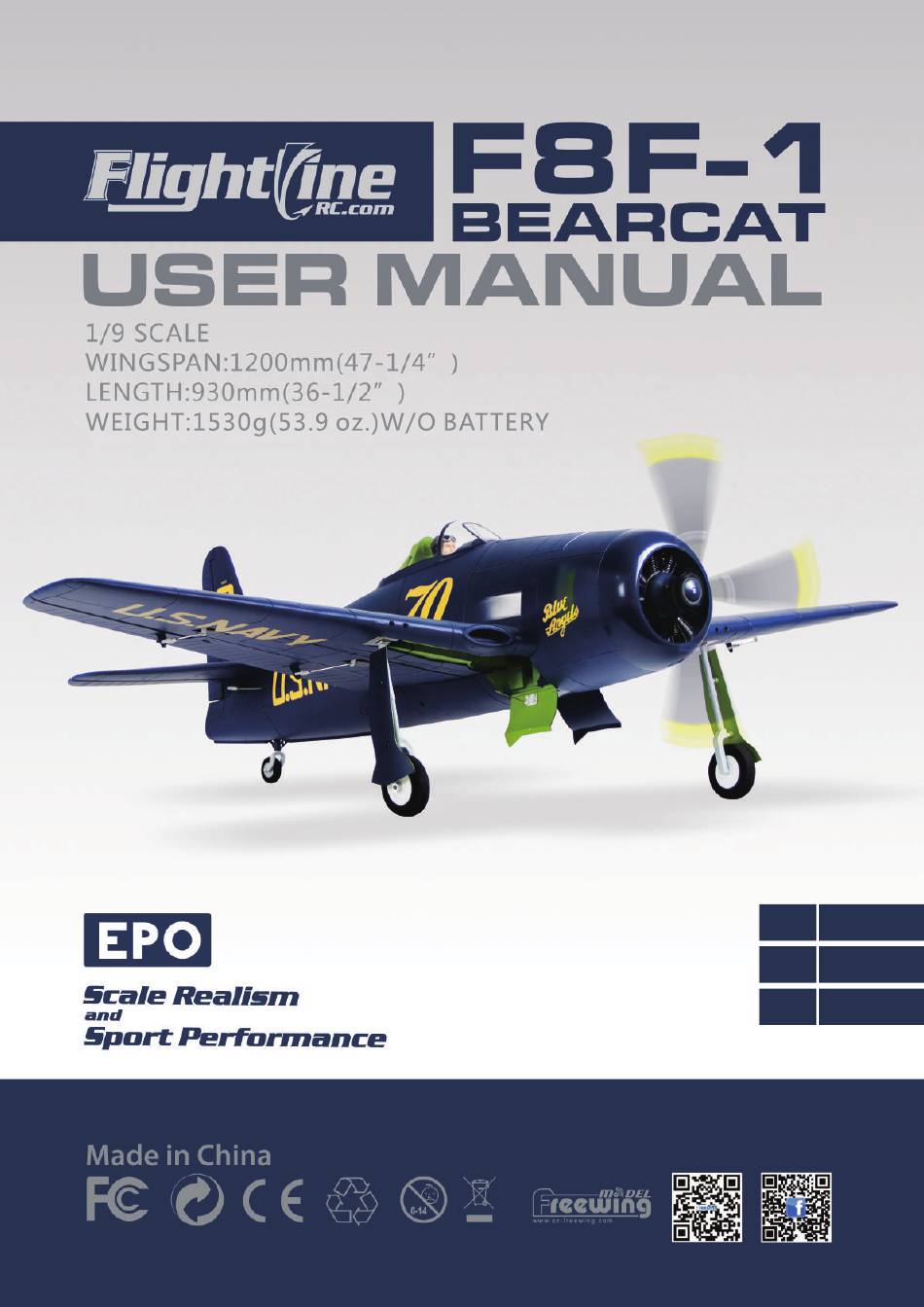

  • Page 1 1~11 中 12~23 24~41...
  • Page 2: Table Of Contents

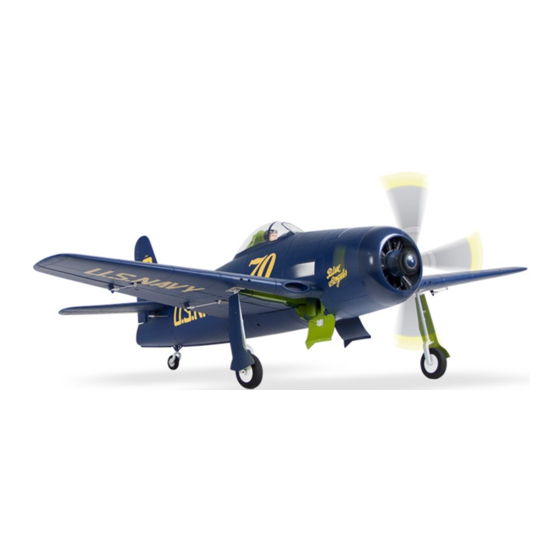

    Landing under power with full flaps can yield a very short landing length, which is ideal for pilots flying in confined areas. Color scheme introduction The FlightLineRC F8F-1 Bearcat arrives completely painted in dark blue, with green gear wells. Included in the box are two optional decal sets: 1.Blue Angels Demonstration Team, 1946 (including our special 70 anniversary decal) 2.US Naval Reserve, Olathe, Kansas, 1948...
  • Page 3: ProductBasicInformation

    Wing loading:76g/dm² Motor:3748-580KV brushless motor Propeller:4-blade 12×7 ESC: 60A brushless ESC Servo:9g MG×2, 9g plastic×4 Weight: 1530g (w/o battery) Aileron: Yes Elevator: Yes Rudder: Yes Flap: Yes Landing gear: Retract landing gear Main landing gear cabin door Material: EPO High speed DIY spare-part (The following is DIY spare-part, please contact distributor to purchase separately.) 1200mm...
  • Page 4: PnpInstallInstructions

    PNP Install instructions Install main wing (Ø8x255mm) A-Carbon tube B-Servos wire C-Servo trough 1.Before install, remove the battery compartment cover. 2.Insert the carbon tube to the fuselage. 3.Insert the main wing to the fuselage. 5.Insert the guns to the main wing carbon tube holes. Screw ( PA3x12 4pcs) Guns...
  • Page 5: ServoInstructions

    PNP Install instructions Install elevator/rudder pushrod 1. Insert one side of elevator pushrod A ,through plastic tube B, to the servo arm C. 2.Buckle the clevis of elevator pushrod to the rudder horn D. Steering arm Rudder pushrod Rudder horn Plastic cover 1.Use rudder pushrod to connect the steering arm and rudder horn.
  • Page 6: PushrodInstructions

    Servos install introduction A - 9g servo Install main wing servos B - Main wing pushrod C - Aileron horn 1.Use servo tester or radio to center the D - Main wing servo trough servo. 2.Use glue to install the servo and aileron horn on the main wing.
  • Page 7: LandingGearAssembleInstructions

    Landinggearassembleinstructions 前 起 落 架 组 装 Nose Landing Gear Assemble Please assemble、disassemble the nose landing gear according to the following photo. Nose gear main supporting rod Screw (M3x3mm) (Ø65×16mm) Nose wheel Screw (KA2.6x12mm 4pcs) Wheel chocks (Ø5.5ר4.2mm) Nose landing gear Jimi screw Landing gear mount (M3×3mm)
  • Page 8: ParameterOfMotor

    Battery install on the front of Tape lift up and remove fuselage, and use magic tape to fix. the battery compartment cover Battery Velcro Battery tray Battery Cabin Size:177×80×58mm Before connect the battery and receiver, please switch on the transmitter power and make sure the 4S 14.8V 2600mAh ~ 4S 14.8V 4000mAh throttle stick is in the lowest position.
  • Page 9: InstallPowerSystem

    Install power system Screw (KM3×5mm 4pcs) Motor X-fixed base 3748-580KV out-runner motor Propeller folder Screw (HM2.5×10mm 4pcs) Motor fixed mount Screw (PA3×12mm 4pcs) Radial Engine Cover Screw (PWA2×8mm 4pcs) Spinner Propeller (12×74pcs) Propeller fixed plate Screw (KA2.3×20mm 8pcs) 3748-580KV brushless motor Screw (PM3×10mm 1pcs) Install 2-blade propeller high power system...
  • Page 10 Install power system Install on ESC Screw (PWA3×8mm 4pcs) Battery tray Tray holder Put the ESC under the battery tray, there is a special designed ventilation ducts, it can cool the electric equipment effectively. 85mm (3-3/8") F8F-1BEARCAT...
  • Page 11 F8F-1BEARCAT...
  • Page 12: DualRates

    Dual Rates Aileron Flaps Elevator Rudder Flaps Aileron Elevator Rudder H1 / H2 16mm / 16mm H1 / H2 20mm / 20mm H1 / H2 20mm / 20mm Low Rate H1 20mm D/R Rate:80% D/R Rate:90% D/R Rate:80% H1 / H2 20mm / 20mm H1 / H2 25mm / 25mm H1 / H2 23mm / 23mm High Rate...
  • Page 13 前 言 中文版 历史简介 F8F“熊猫”是格鲁曼公司最后一种使用活塞发动机的战斗机,1944年8月21日首飞,使用了普拉特-惠特尼公司的R- 2800“双黄蜂”系列发动机。在小型、轻量化的机身内装配了如此强劲的发动机,直接造就了F8F“熊猫”优异的操控性 和 出 色 的 爬 升 率 。F8F“熊 猫 ” 各 型 号 共 计 生 产 了1263架 ,1952年 全 部 退 役 。 法 国 空 军 曾 经 在 越 南 战 场 使 用 了F8F“熊 猫”,从诞生到谢幕,这是它唯一一次在战场上使用的机会。但是,这并不影响F8F“熊猫”是一款优秀螺旋桨战斗机的事...
  • Page 14 产 品 基 本 参 数 中文版 翼载荷:76g/dm² 电机 : 3748-580KV外转无刷电机 螺旋桨 : 4叶 12×7 电调 : 60A 无刷电调 舵机 : 9g数码金属×2, 9g数码塑料×4 重量 : 1530g (不含电池) 副翼功能:有 平尾功能:有 方向舵: 有 襟翼功能:有 起落架:电动可收放起落架 舱门:主起落架舱门 机体材料:EPO 高速版本改装配件 3648-880KV 外转无刷马达 12×8 二叶桨 1200mm (47-1/4") 注意:...
  • Page 15 PNP 组 装 中文版 主 翼 安 装 碳纤管 (Ø8x255mm) 步骤 舵机线、前起落架线 主翼线槽 1.机体组装前,取下电池舱盖。 2.把碳纤管穿入机身。 3.将二侧主翼插入机身。 步骤 5.将机枪插入主翼碳纤管孔内。 PA3x12 4pcs) 机枪 4.使用4颗螺丝拧紧固定主翼,以防脱落。 平 尾 安 装 1.如图所示,将左、右平尾安装到机身尾部! 2.用4颗螺丝固定已安装好的平尾,防止松脱! Ø4x300mm KA2.3x8 4pcs F8F-1BEARCAT...
  • Page 16 PNP 组 装 中文版 安 装 尾 翼 舵 面 控 制 钢 丝 1.将平尾控制钢丝A未装塑料夹头的一端,通过塑料管B,插入到舵机摇臂C内; 2.将平尾控制钢丝A上的塑料夹头扣入尾舵摇臂D上内。 转向摇臂 垂尾控制钢丝 垂尾舵面摇臂 塑料盖 1.用垂尾控制钢丝将转向摇臂与垂直尾翼上的舵面摇臂连接起来; 注意:安装垂尾舵面控制钢丝时,首先需要确保我们已经 将后轮调试到居中位置;然后再安装垂尾舵面控制钢丝,并通过 2.使用胶水粘上塑料盖。(如上图所示) 调节塑料夹头,使垂直尾翼保持居中位置; 舵 机 参 数 介 绍 我们的舵机正、反向标准是: 当舵机输入信号从 到 时, 如果舵机摇臂, 顺时针旋转---正向舵机 逆时针旋转---反向舵机 如果您需要选购其它品牌的舵机进行安装, 请参考下面的表格选择正确的舵机 舵机位置...
  • Page 17 舵 机 安 装 说 明 中文版 舵机 主翼舵机安装 主翼舵机控制钢丝 1 .通过舵机测试仪或者遥控器,把舵机摇臂校 舵面摇臂 正到居中位置; 主翼舵机线槽 2 .用胶水分别把舵机和舵面摇臂粘到主翼; 3 .将舵机线卡到舵机线槽内,待所有主翼舵机 安装完成,贴上贴纸; 4 .钢丝一端穿入到舵机摇臂后,调节钢丝长度, 在保持舵面居中的情况下,将夹头扣入舵面 摇臂内; 5 .重复以上步聚,安装襟翼舵机和另外一侧主 翼舵机。 平尾、垂尾舵机安装 1.通过舵机测试仪或者遥控器,把舵机摇 臂校正 到居中位置; 2.使用螺丝C把舵机固定在木板上; 3.将舵机线从木板中间拉出至电池舱,接入接 收机! 注意:自选舵机时,可能因为舵机尺寸的关系,无法 固定。此时,我们可以取下舵机固定木片,直接将舵机粘 在木片下方的泡沫舵机孔内,不会影响使用; 控 制 钢 丝 尺 寸 方向舵控制钢丝尺寸...
  • Page 18 起 落 架 组 装 中文版 前 起 落 架 组 装 请参考以下图示,组装、更换、维修前起落架; 机米螺丝 (M3x3mm) 前起落架主撑杆 螺丝 前机轮 (KA2.6x12mm 4pcs) (Ø65x16mm) 前起落架套件 轮档 (Ø5.5xØ4.2mm) 起落架固定座 机米螺丝 (M3x3mm) 舱门固定座 前起落架随动舱门 舱门旋转轴 螺丝 (PB2.3x4mm) 舱门钢丝 电动收放控制器 (65x10mm 2pcs) 步骤 步骤 步骤 步骤 尾轮组装...
  • Page 19 电 池 安 装 说 明 中文版 胶纸向上提, 取下电池舱罩 电池安装在最前方,用魔术带绑紧 电池舱罩 电池 电池托盘 电池舱尺寸:177 80 58mm 魔术贴 将电池与接收机连接前,首先请打开发射机电源, 我们建议使用的电池容量和放电倍率如下: 确认油门杆处于低位。 4S 14 8V 2600mAh 4S 14 8V 4000mAh 安装电池后,启动油门前,请保证没有任何物体在 > 放电倍率 螺旋桨转动直径以内,避免造成事故和人身伤害! 集 线 盒 使 用 说 明 起落架 起落架...
  • Page 20 动 力 系 统 的 安 装 中文版 螺丝 (KM3x5mm 4pcs) 电机固定十字架 3748-580KV无刷外转马达 螺旋桨桨夹 螺丝 (HM2.5x10mm 4pcs) PA3x12mm 4pcs PWA2x8mm 4pcs 螺旋桨固定盘 仿真螺旋桨 (12x7,四片组合) 螺旋桨桨罩 螺丝 (KA2.3x20mm 8pcs) 3748-580KV无刷马达 螺旋桨套件 螺丝 (PM3x10mm 1pcs) 2叶 高 速 版 改 装 套 件 的 安 装 螺丝...
  • Page 21 动 力 系 统 的 安 装 中文版 无 刷 电 子 调 速 器 安 装 PWA3×8mm 4pcs 电调放置在电池托盘B下方,这里是一个 特别设计的通风管道,可以有效对电子 设备降温。如右侧图示,当我们取下电 池托盘B时,你可以方便地更换电调! 重 心 示 意 图 正确的重心,直接关系到飞行的成功与否,请参考下面的重心标示图,来调整飞机的重心。 -您可以将电池向前,或者向后移动,来调整飞机的重心; -如果通过电池的移动无法调整到正确的重心位置,您还可以适当的使用一些其它材料来配重,使 飞机的重心处于正确的位置! 85mm (3-3/8") F8F-1BEARCAT...
  • Page 22 舵 面 测 试 中文版 当您按前面的步骤组装好飞机后,在飞行前,我们需要用一块充饱电的电池,连接到电调。用遥控 器测试每个舵面的工作情况,检查是否正常! 副 翼 副翼摇杆 副翼摇杆 向左运动 向右运动 升 降 舵 升降摇杆 升降摇杆 向下运动 向上运动 方 向 舵 方向摇杆 方向摇杆 向左运动 向右运动 襟 翼 襟翼放下 F8F-1BEARCAT...
  • Page 23 大 、 小 舵 参 数 中文版 根据我们的测试经验,我们认为,按以下参数来设置副翼和升降舵的大、小舵,将有助于飞行。在小 舵角的情况下,飞机的可操控性能会好一些,适合初次飞行或者不太熟练的玩家飞行。而大舵角的设置, 可以提高动作灵敏度,使用经验丰富的玩家。您可以根据自身的情况,来选择其中一种舵量进行飞行! 副 翼 襟 翼 升降舵 方向舵 副 翼 升降舵 方向舵 襟 翼 H1/H2 20mm/20mm H1/H2 20mm/20mm H1/H2 16mm/16mm 小舵角 H1 20mm 舵量比率:80% 舵量比率:90% 舵量比率:80% H1/H2 25mm/25mm H1/H2 23mm/23mm H1/H2 20mm/20mm 大舵角...
  • Page 24 Dongguan Freewing Electronic Technology Ltd HK Freewing Model International Limited Add.:FeiYi Building,face to Labor Bureau, Fumin Middle Road, Dalang Town, Dongguan City,Guangdong Province, China Web: http://www.sz-freewing.com Email:freewing@sz-freewing.com Tel: 86-769-82669669 Fax:86-769-82033233 东莞市飞翼电子科技有限公司 香 港 飞 翼 模 型 国 际 有 限 公 司 地址: 广东省东莞市大朗镇富民中路402-408号飞翼楼四楼...
  • Page 30 Warnungen und Vorsichtsmassnahmen zum Umgang mit Akkus...
