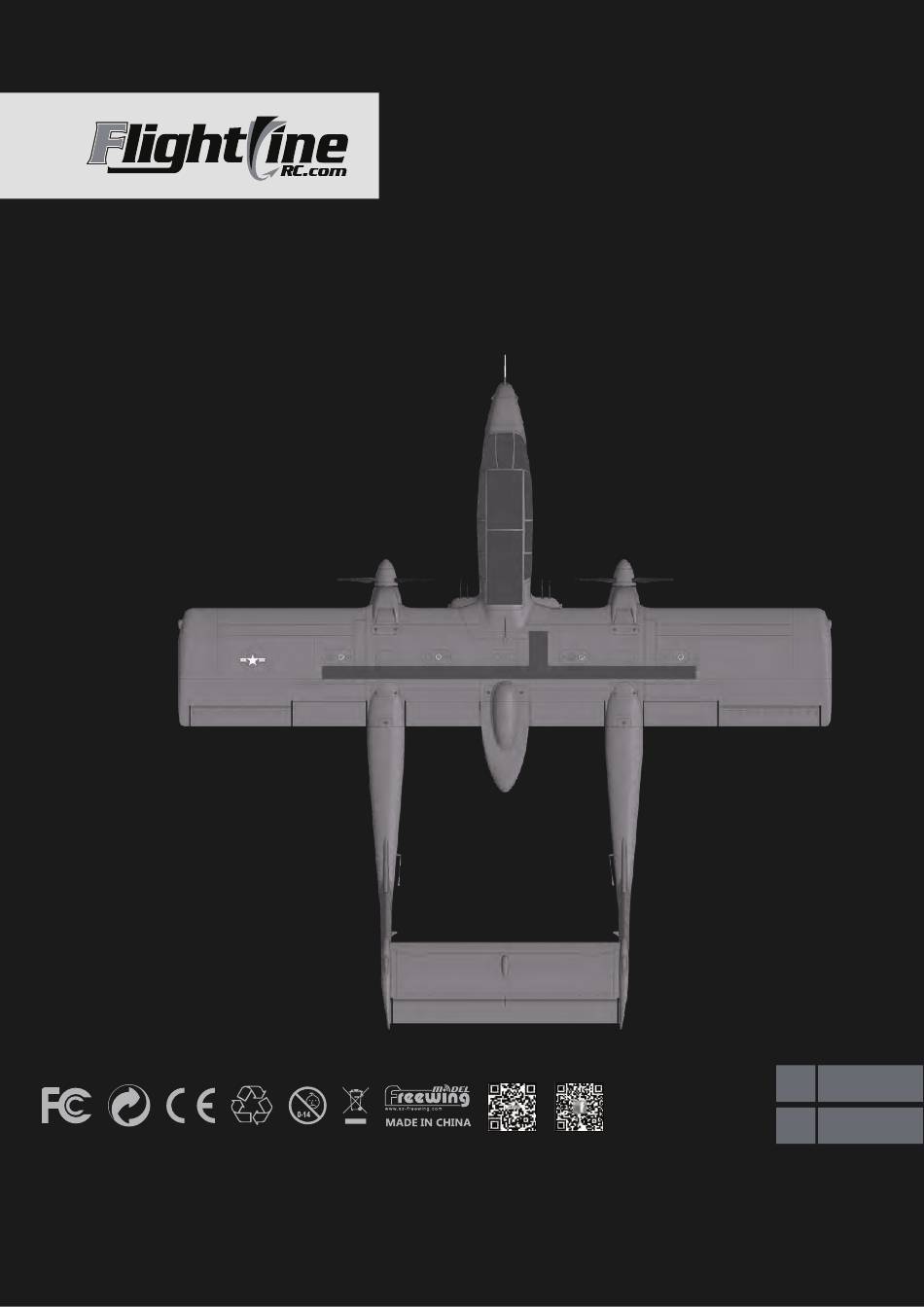

- Page 1 FlightLine OV-10 Bronco User Manual Wingspan: 1400mm Length: 1390mm Empty Weight: 3050G[w/o Battery] 1~10 中 11~20...
- Page 2 基本介绍 Introduction 产品规格参数 Product basic information 包装列表 Package list PNP Assembly instructions PNP组装步骤介绍 安装中段主翼 Install main wing middle part 安装左右机体 Install two sides of the fuselage 安装水平尾翼 Install horizontal stabilizer 安装左右主翼 Install main wing (Left and right side) 安装螺旋桨及桨罩 Install propeller and spinner 其它配件安装...
-
Page 3: Products Introduction

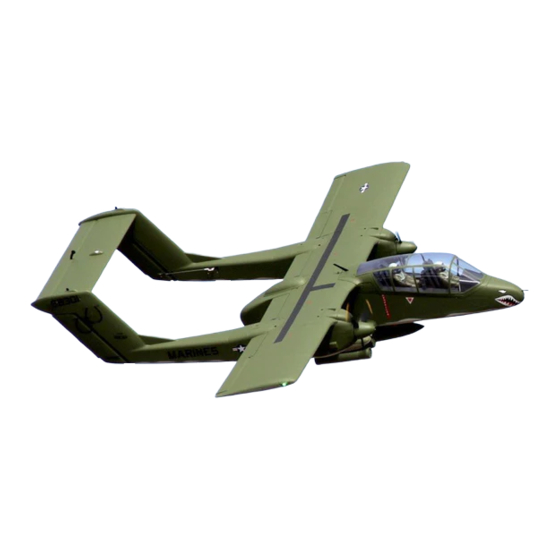

Products introduction Thank you for purchasing our FlightLine OV-10A Bronco. It features an upper single-wing, double-engine, twin-tailed beam layout with a 1390mm length and a wingspan of 1400mm. It is made of EPO material and is reinforced with carbon and fiberglass. The modular design, in addition to a small number of parts of the imitation decorative accessories, the body parts are fastened with screws. -
Page 4: Product Basic Information
Pre-installed all electronic parts Pre-installed servo Manual Main wing Pushrod Pre-installed all electronic parts Pre-installed servo Horizontal tail Non-slipmat Vertical tail Screw bag Pre-installed all electronic parts Pre-installed servo Glue Foam parts FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01... -
Page 5: Install The Horizontal Stabilizer
Finally, fix it with screws line inside the vertical tail. Screw : PA 3×12mm 4pcs FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01... - Page 6 Cabon tube : Φ 10×500mm 2pcs Install propeller and spinner Reverse Propeller Standard Propeller Screw : M3×6mm 2pcs Nut : M3×6mm 2pcs 7.Mount the corresponding accessories on the motor shaft as shown. FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01...
- Page 7 FlightLine OV-10 Bronco Item No.:FLW305...
-
Page 8: Pushrod Instructions
4S 14.8V 3300mAh~4S 14.8V 4000mAh > 35C the throttle stick is in the lowest position. Bind your Discharge rate of C receiver to your transmitter according to your transmitter’s instruction manual. FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01... -
Page 9: Center Of Gravity
At the buttom of middle wing, close to the fuselage. It has a CG sign. You can according this sign to confirm the right CG. FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01... - Page 10 Ailero n S tic k Le ft S tic k Right Ru dder S tic k Le ft St ick R ight Elevator Stick up Stick down Flaps Flaps down FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01...
- Page 11 In order to ensure the consistency of the left and right motor speeds, in the following cases, you need to refer to the ESC manual to recalibrate the throttle. -First time to use. -First use after change the raido or receiver. FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01...
-
Page 12: Motor Specification
200mm 9g Digital-Hybrid Flap(R) Positive 300mm 9g Digital-Hybrid Aileron(L) Positive 300mm Aileron(R) 9g Digital-Hybrid Positive 600mm 9g Digital-Hybrid Rudder(L) Positive 600mm 9g Digital-Hybrid Rudder(R) Positive 300mm 17g Digital-MG Positive Elevator Motor Specification FlightLine OV-10 Bronco Item No.:FLW305 Version No.: FLW305-01...
