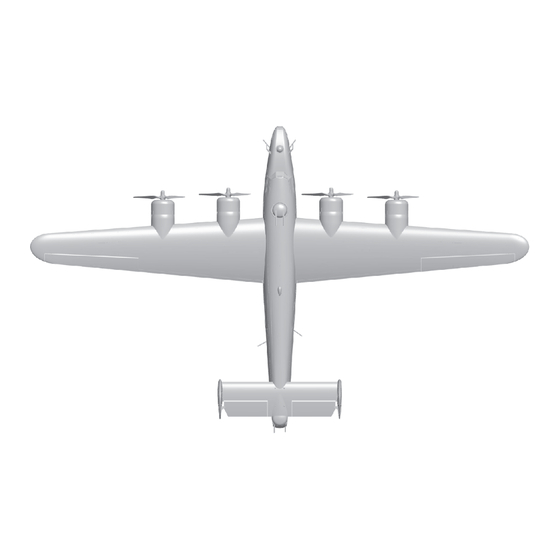

- Page 1 B-24 LIBERATOR USER MANUAL 1~11 WINGSPAN:2000MM(78.7in.) LENGTH:1230MM(48.4in.) 中 12~22 WEIGHT:2190G (W/O BATTERY)
-
Page 2: Table Of Contents
The famed B-24 Liberator is one of the most recognizable WWII aircraft of all time. Serving in every theater of that global conflict, the B-24 fought to bring its brave crews home through unimaginable danger. With humility and reverence, FlightLineRC and Motion RC are proud to introduce the world’s first foam electric PNP B-24 Liberator, in remembrance of the crews who gave the ultimate sacrifice and those who carry on its memory. -
Page 3: Package List
Horizontal tail Linkage Set electronic parts equipment servo Pre-installed all No electronic Pre-installed Vertical tail Glue & Non-slip mat electronic parts equipment servo Propeller & Spinner Carbon tube & Screw Manual & Decals Nose Turret & Nose B-24 LIBERATOR Iten No.:... -
Page 4: Wire Pull-Through Tool Instruction
As shown in the photo below: Fix the propeller on the motor. 。 As the photo show, install the left/right propeller. Screw (PM2.5x6 4pcs) Spinner Screw nut Washer Propeller fixing bolt A Scale propelle Step Propeller fixing bolt B B-24 LIBERATOR Iten No.:... -
Page 5: Install Main Wing
(PNP includes two optional forward nose sections for the B-24-D (”Greenhouse”) and B-24-J (”Emerson Turret”) Nose Turret A Nose Turret B Nose Turret Base B-24-J Variant Foam Nose Washer Tiller Screw (PA2.3x8) Lower Windshield Gun Barrels Install Nose Section -D Greenhouse for -D Variant Antennas Gun Barrels B-24 LIBERATOR Iten No.:... -
Page 6: Install Scale Accessories
Aileron pushrod length Aileron pushrod mounting hole Pushrod diameter Ø1.2mm 41.5mm (1-5/8") Elevator pushrod length Elevator pushrod mounting hole Pushrod diameter Ø1.2mm 41.5mm (1-5/8") Rudder pushrod mounting hole Rudder pushrod length Pushrod diameter Ø1.2mm 53mm (2-1/16") B-24 LIBERATOR Iten No.:... -
Page 7: Control Board Connection Diagram
Connect to the Elevator channel in the receiver Connect to the Throttle channel in the receiver Receiver Connect to the Rudder channel in the receiver Connect to the landing Gear channel in the receiver Connect to the Flap channel in the receiver B-24 LIBERATOR Iten No.:... -
Page 8: Battery Size
CG. However, with the recommended battery size, a counterweight is not required. We recommend flying without unnecessary counterweight. 76mm (3") B-24 LIBERATOR Iten No.:... -
Page 9: Servo Direction
Flap(R) 9g Digital-MG Positive 850mm Elevator(L) 9g Digital-MG Positive 850mm Elevator(R) 9g Digital-MG Positive 950mm Rudder(L) 9g Digital-MG Positive 950mm Rudder(R) 9g Digital-MG Positive Motor Specification 51.5 41.5 M2.5 3530-860KV Units:mm 14.8 1350 3-Blade 9.5x7 860RPM/V B-24 LIBERATOR Iten No.:... -
Page 10: Mount & Motor Shaft
3530-860KV out-runner motor Prop shaft adapter Cup head screws (M2.5x6) As the left diagram,install ESC and Motor Motor Screw (PA3x15 16pcs) Engine cowl Screw (PA2.3x6 12pcs) Engine Pod cover Screw (PA2.3x6 8pcs) Step Step Step Step B-24 LIBERATOR Iten No.:... -
Page 11: Control Direction Test
After installed the plane, before flying, we need a fully charged battery and connect to the ESC,then use radio to test and check that every control surface work properly. Aileron Stick Left Stick Right Elevator Stick down Stick Up Rudder Stick Left Stick Right Flaps Flas down B-24 LIBERATOR Iten No.:... -
Page 12: Dual Rates And Flight Attention
2 - When flaps are deployed, do not advance the throttle very quickly. The B-24 is intended to be flown as a scale bomber, with moderate throttle advance. Add rudder input to flatten turns for more scale appearance. Elevator Neutral Position 1. Before your first flight, mechanically set the Elevator's Neutral Position to 1.5mm Up. B-24 LIBERATOR Iten No.:... - Page 13 PNP 组装说明 中文版 中文版 舵 面 测 试 当您按前面的步骤组装好飞机后，在飞行前，我们需要用一块充饱电的电池，连接到电调。用遥控 器测试每个舵面的工作情况，检查是否正常！ 副 翼 副翼摇杆 副翼摇杆 向左运动 向右运动 升降舵 升降摇杆 升降摇杆 向下运动 向上运动 方向舵 方向摇杆 方向摇杆 向左运动 向右运动 襟 翼 襟翼放下 B-24 LIBERATOR Iten No.:...
- Page 14 H1/H2 18mm/18mm H1/H2 15mm/15mm 小舵量 H1 13mm 舵量比率：85% 舵量比率：75% 舵量比率：80% H1/H2 22mm/22mm H1/H2 23mm/23mm H1/H2 19mm/19mm 大舵量 H1 29mm 舵量比率：100% 舵量比率：100% 舵量比率：100% 特别注意事项： 飞行 前检测： 第一次飞行此产品或者更换遥控器后，必须校准油门，这样才能保持4套动力产生的拉力一致，具体校正方法见 电调说明书。 飞行前设定： 1. 降落开襟翼飞机抬头比较明显，需要混控点降舵才能很好降落，小舵量襟翼需要1.5mm降舵，大舵量襟翼需 要3mm降舵 2. 升降舵调平飞机飞行会有比较明显的低头现象，这样需要1.5-2mm升舵飞机就能够很好的平飞； 3. 放下襟翼飞行时，我们需要较柔和的增加油门，不能瞬间加大油门量，否则会出现飞机突然向下飞行，容易 造成飞机坠毁事故. B-24 LIBERATOR Iten No.:...
- Page 15 Dongguan Freewing Electronic Technology Ltd HK Freewing Model International Limited Add.:FeiYi Building,face to Labor Bureau, Fumin Middle Road, Dalang Town, Dongguan City，Guangdong Province, China Web: http://www.sz-freewing.com Email:freewing@sz-freewing.com Tel: 86-769-82669669 Fax:86-769-82033233 东莞市飞翼电子科技有限公司 香 港 飞 翼 模 型 国 际 有 限 公 司 地址: 广东省东莞市大朗镇富民中路402-408号飞...
