3.1.4 Castor control (S6015655)

Castor levers have 3 positions. When green pedal is down one castor is arrested in bed direction. In middle position of both pedals
castors are freely rotating on both axes. When red pedal is down each castor is braked. Pedals are located on bed foot end and
bed head end. Transmission between individual pedals depends on operating rods and levers. Adjustment of the transmission is
not possible.
Installation of castor control pedals on both sides of the bed (with the same function) is optional.
If 5th castor is used it is pressed down to the floor when one castor is arrested in bed directon (green pedal down). In the middle
position of castor levers the 5th castor is slightly lifted. In the case of braked bed the 5th castor is lifted up. The 5th castor is contro-
led automatically by system of castor levers.
RED
GREEN

3.1.5 Castors

8
RED GREEN
RED
GREEN

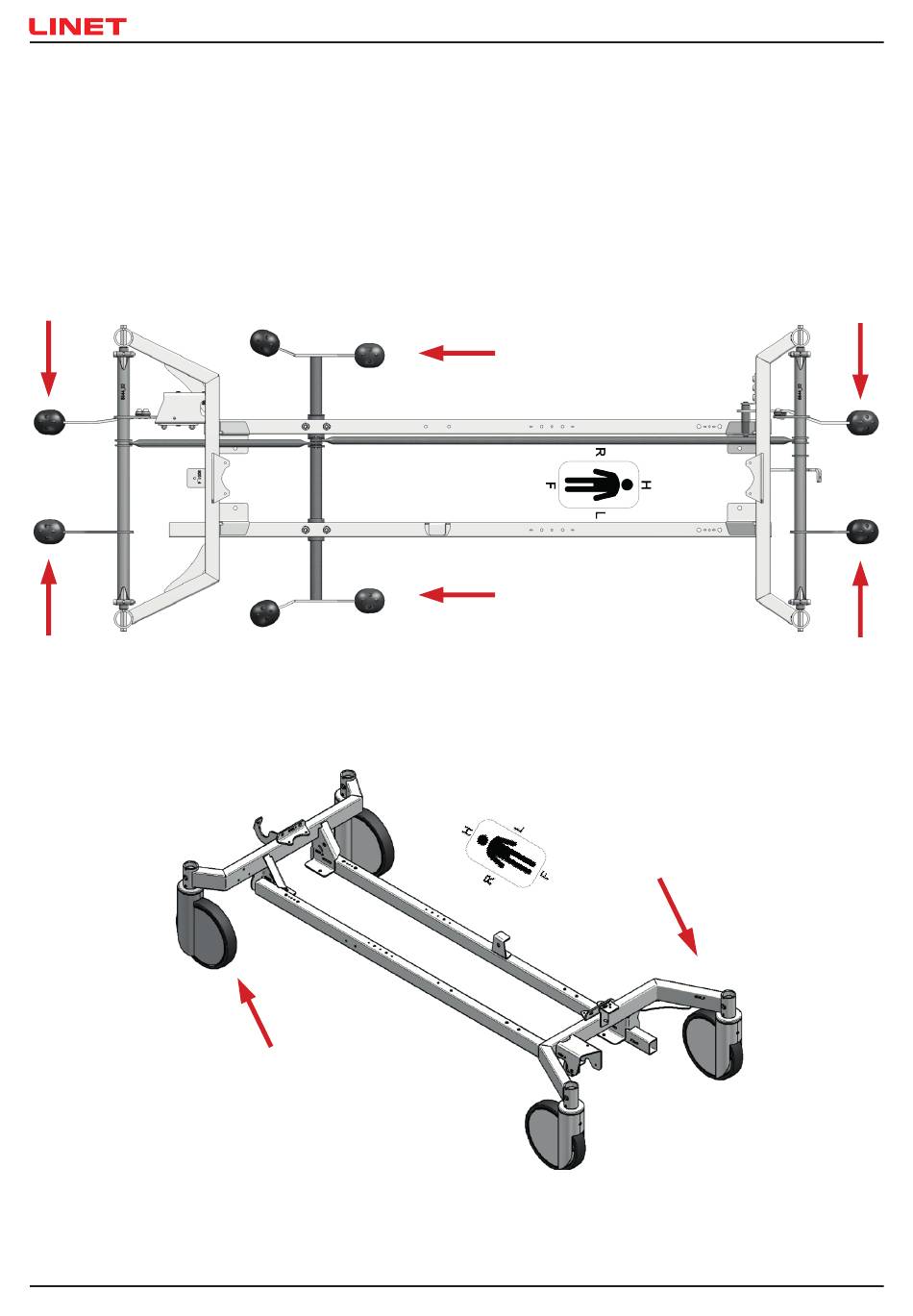

Fig.7 Castor control (S6015655)
Braking from foot end -
Directional castor
Fig.8 Braking from foot or head end (S6015960)
OPTION
OPTION
Braking from head end
- Directional castor
D9S001ES1-0101
GREEN
RED
