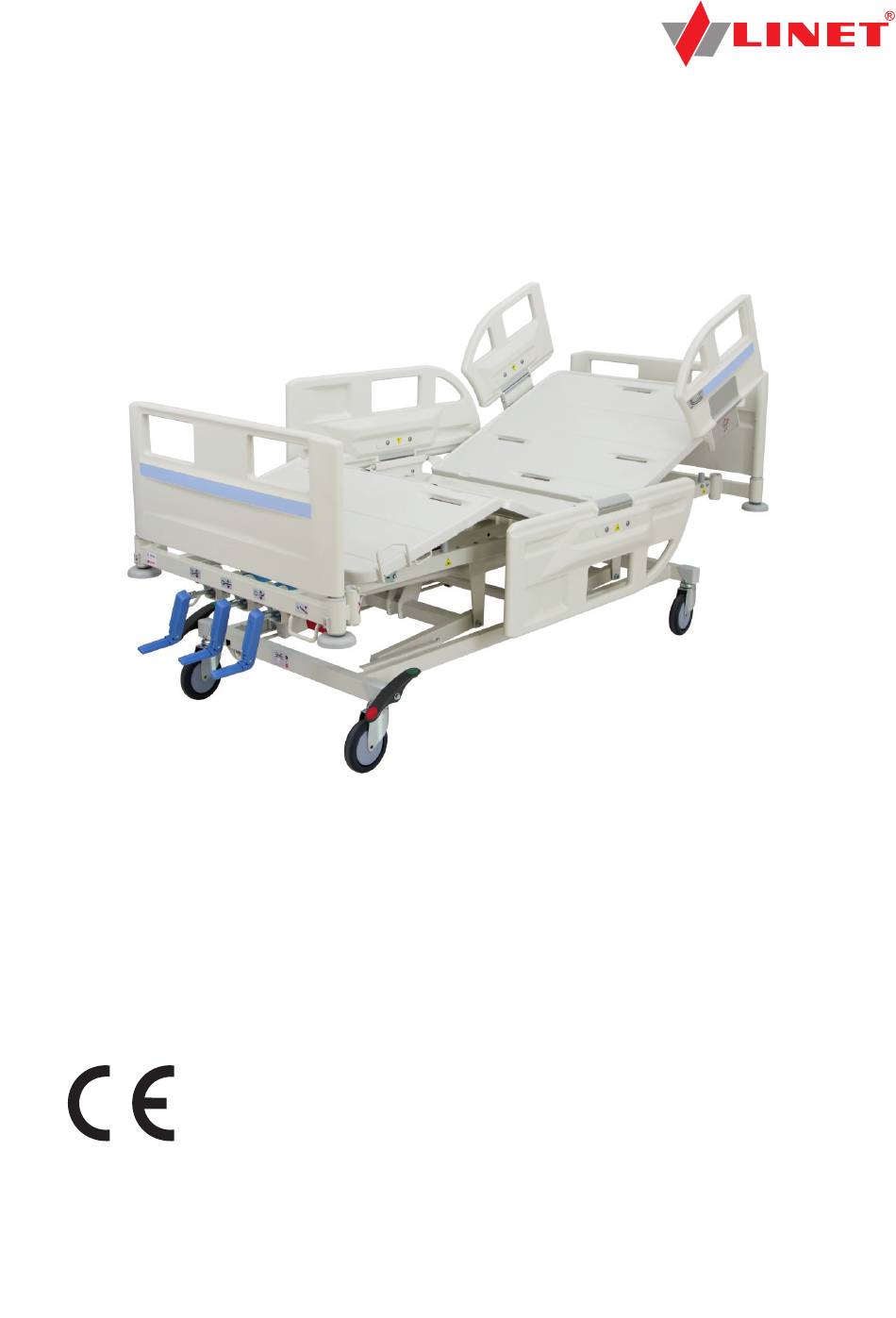

- Page 1 Instructions for Use and Technical Description Praktika 2 Positionable hospital bed D9U001F20-0101 Version: 07 Publication Date: 2020-02...
- Page 2 D9U001F20-0101 Version: 07 Publication Date: 2020-02 Copyright © LINET, s.r.o., 2020 Translation © LINET, 2020 All rights reserved. All trademarks and brands are the property of the appropriate owners. The manufacturer reserves the right to changes in the contents of the instructions for use that relate to the product´s technical regulations. It is for this reason that the contents of the instructions for use may indicate differences from the current manufacture of the product.
-
Page 3: Table Of Contents
3.1 User population ............14 3.2 Contraindications ............14 3.3 Operator ..............14 4 Incorrect Use ..............14 5 Product Description .............15 5.1 Praktika 2 with Split Plastic Siderails ......15 6 Technical Specification ..........16 6.1 Applied Parts Type B ...........16 6.2 Mechanical Specification ..........16 7 Use Conditions .............17 8 Scope of Delivery and Bed Variants ...... -
Page 4: Symbols And Definitions
1 Symbols and Definitions 1.1 Warning Notices 1.1.1 Types of Warning Notices Warning notices are differentiated by the type of danger using the following key words: ► CAUTION warns about the risk of material damage. ► WARNING warns about the risk of physical injury. ► DANGER warns about the risk of fatal injury. 1.1.2 Structure of Warning Notices SIGNAL WORDS! Type and source of danger! ►... -
Page 5: Symbols On The Package
1.4 Symbols on the Package FRAGILE, HANDLE WITH CARE THIS WAY UP KEEP DRY (PROTECT FROM HUMIDITY) PAPER RECYCLING SYMBOL DO NOT USE HAND TRUCK HERE DO NOT STACK DURING STORAGE D9U001F20-0101_07... -
Page 6: Symbols And Labels On The Bed
1.5 Symbols and Labels on the Bed READ INSTRUCTIONS FOR USE WARNING WARNING AGAINST CRUSHING OR TRAPPING! CAUTION. REFER TO INSTRUCTIONS FOR USE TO INFORM YOURSELF ABOUT RIS- KS WHEN REMOVING HEAD BOARD OR FOOT BOARD DESCRIPTION „HOW TO CONTROL LEVER MECHANISMS“ TRENDELENBURG / Antitrendelenburg POSITION DO NOT PLACE ANY OBJECTS UNDER MATTRESS PLATFORM USE MATTRESS RECOMMENDED BY MANUFACTURER... - Page 7 ONLY SUITABLE FOR INDOOR USE PROTECTION AGAINST ACCIDENTS DUE TO ELECTRICAL CURRENT – TYPE B APPLIED PARTS CE MARK OF CONFORMITY WITH EU REGULATION DESIGNATION OF HOSPITAL BED FOR ADULTS MEDICAL DEVICE (COMPATIBLE WITH MEDICAL DEVICE REGULATION) WEEE SYMBOL (RECYCLE AS ELECTRONIC WASTE, DO NOT PUT INTO THE HOUSEHOLD WASTE) RECYCLING SYMBOL DO NOT POLLUTE THE ENVIRONMENT...
- Page 8 SERIAL NUMBER D9U001F20-0101_07...
-
Page 9: Serial Label With Udi
20000084 (01) 8592654182901 2020-02-04 (11) 200204 CUC: (21) 20190101170 Fig. Serial Label with UDI (Praktika 2) Address of Manufacturer Manufacturing Date (Year-Month-Day) DI (Device Identifier) / GTIN (Global Trade Item Number) 1D Bar code GS1-128 (Serial Number) Symbols Configuration number... -
Page 10: Definitions
1.7 Definitions Basic Bed Configuration the pricelist model configuration, not including a mattress Bed Weight The value depends on the product configuration, accessories or customer adjustments. Clearance of Undercarriage the height from the floor to the lowest point of the undercarriage between the castors, for the manipulation of accessories under a braked bed in the standard position Duty Cycle... -
Page 11: Safety Instructions
2 Safety Instructions WARNING! Praktika 2 bed should be left in its lowest position when the patient is unattended in order to reduce risk of injury due to falls! WARNING! Siderails of Praktika 2 should be located in the „up“ position to reduce the risk of the patient accidentally slipping or rolling off the mattress! WARNING! Incompatible siderails and mattresses can cause an entrapment hazard! WARNING! When routing cables from other equipment in the Praktika 2 bed avoid squeezing those between parts of the ... - Page 12 WARNING! Only use accessories approved by manufacturer! Injuries may occur in case of usage of other than approved accessories! WARNING! Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established! WARNING! This medical device is not intended for oxygen enriched environment! WARNING!
- Page 13 ► It is necessary to read the instructions for use before operating the bed. ► Follow the instructions carefully. ► Use the bed exclusively in its original condition. ► If necessary, check the bed functions daily or at each staff rotation. ►...
-
Page 14: Intended Use
LINET®’s efforts in research, design and manufacture ensure LINET® products are of the highest quality and fit for their intended purpose. However, LINET® can take no responsibility for any damage to the products or any harm to patients, staff or other indivi- duals resulting from: ►... -
Page 15: Product Description

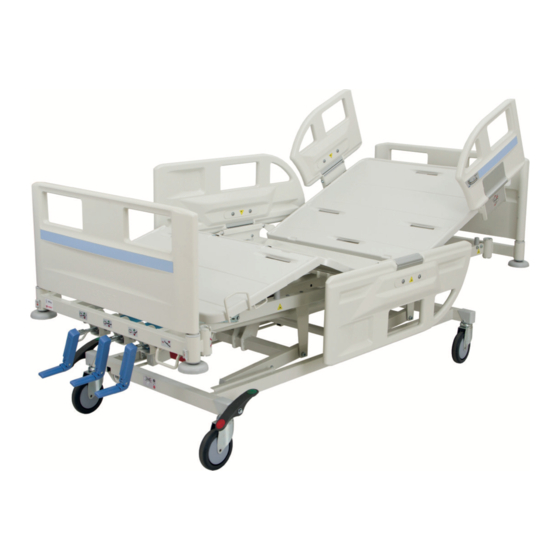

5 Product Description 5.1 Praktika 2 with Split Plastic Siderails Fig. Praktika 2 with split plastic siderails Foot board Center split plastic siderail in highest positions Head split plastic siderail in highest positions Head board Head siderail release mechanism Protective bumper Castor 150mm Center siderail release mechanism... -
Page 16: Technical Specification
6 Technical Specification 6.1 Applied Parts Type B All the parts of the bed which patient can reach are type B applied parts. List of type B applied parts: ► Siderails ► Head Board and Foot Board ► Mattress platform 6.2 Mechanical Specification Parameter Value External dimension... -
Page 17: Use Conditions
Notify the carrier and supplier of any deficiencies or damages immediately as well as in writing or make a note on the delivery note. 8.2 Bed Variants Features – Praktika 2 1F (model number is located on the serial label) s = standard o = optional ■... -
Page 18: Putting Into Service
9 Putting into Service WARNING! Risk of injury when working on the bed! ► Ensure that the bed is disconnected from the mains connection prior to putting into service, putting out of service and maintenance. ► Ensure that the castors are locked prior to putting into service, putting out of service and maintenance. CAUTION! Material damage due to incorrect putting into service! ►... -
Page 19: Head Board And Foot Board
9.1 Head Board and Foot Board WARNING! Risk of injury when inserting the head board and foot board! ► Always hold head board and foot board by their top corner handles with both hands when installing or removing. ► Install head board and foot board before the first use. WARNING! Risk of injury due to incorrectly installed head board and foot board! ►... -
Page 20: Mattress Support Platform
9.2 Mattress support platform Mattress platform of Praktika 2 bed can bed made of fi xed steel parts or optionable with removable plastic parts. Fig. Steel mattress platform Fig. Mattress platform with removable plastic parts 9.3 Initial Operation Prepare the bed for service as follows: ►... -
Page 21: Manipulation - Bed Positioning
10 Manipulation – Bed Positioning WARNING! Risk of injury when adjusting the bed! ► Secure or remove any items on the bed. The bed is controlled via two control levers which are plaved on the bar under foot board of the bed. Controlling lever – thighrest positioning Controlling lever –... -
Page 22: Bed Positioning
CAUTION! Risk of damaging the lever mechanism due to incorrect use! ► If you feel more resistance than usual when turning the lever, stop turning the lever further. Fig. Setting the lever to the working position Set the lever to the working position as follows: ► Grab and pull the lever toward you (1). ►... -
Page 23: Thighrest Positiong
Raise the backrest as follows: ► Set the right ever to its working position. ► By rotating the lever clockwise, raise the backrest to desired position. Fig. Raising the backrest Lower the backrest as follows: ► Set the right lever to its working position. ► By rotating the lever counterclockwise, lower the backrest to desired position. -
Page 24: Bed Height Positiong
Lower the backrest as follows: ► Set the left lever to its working position. ► By rotating the lever counterclockwise, lower the thighrest to desired position. Fig. Lowering the thighrest 10.3.3 Bed Height Positiong It is necessary to set lever into its working position (see Mani- pulation with levers). -
Page 25: Mechanical Positioning Of Calfrest
Lower the bed as follows: ► Set the left lever to its working position. ► By rotating the lever counterclockwise, lower the bed height to desired position. Fig. Lowering the bed height 10.3.4 Mechanical positioning of calfrest Calfrest can be positioned mechanically using raster. 1. -
Page 26: Trendelenburg / Antitrendelenburg Position
10.3.5 Trendelenburg / Antitrendelenburg position WARNING! Risk of damaging the lever mechanism due to incorrect use! ► Always ensure before positioning that foot board is locked. ► Positioning of heavier patients (100kg and more) should be performed by two persons. Red lever on the right side of foot board is designed for positioning the bed to Trendelenburg / Antitrendelenburg positions. -
Page 27: Quick Backrest Lowering For The Crisis Situations
10.4 Quick Backrest Lowering for the Crisis Situations WARNING! Risk of injury due to lowering the backrest too quickly! ► Ensure single collapsible siderails are in their lowest position. ► Ensure split plastic siderails are in their highest position. ► Ensure there are no body parts between siderails and backrest. The bed allows quick mechanical lowering of the backrest using quick counterclockwise rotatition of the right lever. Backrest will lower to horizontal position after approx. -
Page 28: Siderails
11 Siderails WARNING! Risk of injury due to crushing! ► Ensure that there are no objects or body parts between siderail and mattress platform when folding the siderail up or down. ► Ensure that no body part or objects are under the siderail when folding the siderail down. ►... -
Page 29: Split Plastic Siderails
11.2 Split Plastic Siderails Fold siderails down as follows: Fig. Siderail manipulation – Split plastic siderail ► Grab the upper handle of the siderail and push towards mattress platform 1. ► Pull out the locking mechanism 2 to unlock. ► Fold the siderail down 3. NOTE In certain cases (e.g. -
Page 30: Castors With Individual Brake
12.1 Castors with Individual Brake Castors are unbraked Castors are braked Fig. Castor with individual brake 12.2 Castors with Single Axe Brake The bed is equipped with central brake system. Braking levers are lo- cated on the both sides of the bed. Central brake system is designed for easier castor control. -
Page 31: Mattress
14 Mattress The manufacturer recommends the use of the following mattress systems on the Praktika 2 bed: ■ EFFECTACARE 10 ■ EFFECTACARE 20 ■ PRIMACARE 10 ■ PRIMACARE 20 ■ CLINICARE 10 ■ CLINICARE 20 ■ CLINICARE 30 15 Accessories WARNING! Risk of injury due to incompatible accessories! ► Only the manufacturers original accessories can be used. ► The manufacturer assumes no responsibility for the use of accessories not approved by the manufacturer. NOTE: All accessories conform to IEC 60601-2-52. -
Page 32: Lifting Pole
15.2 Lifting Pole WARNING! Risk of patient‘s injury or damage to the bed due to incorrect use! ► Never exceed the maximum load of lifting pole – 75 kg. ► Never use the lifting pole for rehabilitation exercises. ► To prevent the bed from tipping over, ensure the lifting pole does not project out from the bed. ►... -
Page 33: Infusion Stand
15.3 Infusion Stand WARNING! Risk of injury or collision when placing other accessories than described in the instructions for use! ► Use infusion stands exclusively for accessories listed in the instructions for use. ► Only mount an infusion pump to the lower (wider) telescopic section of an infusion stand above the head board / foot board. ►... -
Page 34: Protector
15.4 Protector® WARNING! Risk of injury due to patient falling out of bed! ► Ensure the Protector® is securely anchored to the bushing. ► To check stability, push the Protector® up without touching the release button. ► Always check the siderail is properly locked. WARNING! Risk of damaging the bed or injuring the patient! ►... -
Page 35: Extender - For Single Collapsible Siderails
15.5 Extender – for Single Collapsible Siderails WARNING! Risk of injury or collision due to incorrect use! ► Extender can be used only with single collapsible siderails. Manufacturer will held no responsibility due using the Extender with different types of siderails. ►... -
Page 36: Cleaning/Disinfection
16 Cleaning/Disinfection WARNING! Risk of injury when working on the bed! ► Pay extra attention when cleaning any movable or controlling mechanisms of the bed to prevent invol-untary activation, entrapping or crushing. ► Cleaning should be entrusted to the person who has been trained to control the bed. WARNING! Risk of damaging the bed due to use of incorrect cleaning detergents or cleaning processes! ►... -
Page 37: Safety Instructions For Cleaning And Disinfection Of The Bed
16.1 Safety Instructions for Cleaning and Disinfection of the Bed Preparation for cleaning: ► Drive the bed on a place where the cleaning process will be performed and then brake the bed. ► Position backrest and thighrest so the back side of those parts are accessible for cleaning. Recommendations for cleaning: ►... -
Page 38: Choosing Of Detergents Or Disinfections
Risk of damaging the bed due to use of incorrect detergent! ► Always consult choosing of the detergent and its dilution with manufacturer of the detergents according to the material table below. Part of bed – Praktika 2 Daily C&D Changing patient C&D Complete C&D Siderails (stickers) ■... -
Page 39: Troubleshooting
17 Troubleshooting Error/Fault Cause Solution Adjusting functions of mattress platform are There is an object under mattress plaftorm. Remove the object. not working Defective mechanism. Notify service department. Back/thighrest cannot be lowered from the There is an object under the bac-krest or in the Remove the object. -
Page 40: Maintenance
Ensure that maintenance is performed exclusively by manufacturer´s customer service or by authorised service personnel certified by the manufacturer. ► If the defect cannot be repaired, do not use the bed. LINET ® recommends attaching the maintenance plaque to the bed. 18.1 Regular maintenance ► Check regularly movable parts for wear. -
Page 41: Disposal
19 Disposal 19.1 Environment Protection The company LINET® is aware of the importance of environmental protection for future generations. Within this company the envi- ronmental management system is applied in accordance with the internationally agreed standard ISO 14001. The compliance with this standard is annually tested by the external audit executed by an authorised company. -
Page 42: Warranty
20 Warranty LINET ® will only be held responsible for the safety and reliability of products that are regularly serviced, maintained and used in accordance with the safety guidelines. Should a serious defect arise that cannot be repaired during maintenance: ►...
