3.1.6 Fifth Castor
Technical data
Neutral position (pedal in middle position)
- space between floor and castor
Braked position (Red pedal down)
- Space between floor and castor
Active position (Green pedal down)
- possible drop of the wheel below the horizontal level
Maximum obstacle height
Wheel downforce to the floor in the basic (activated) position
D9S001ES1-0101
Fig.9

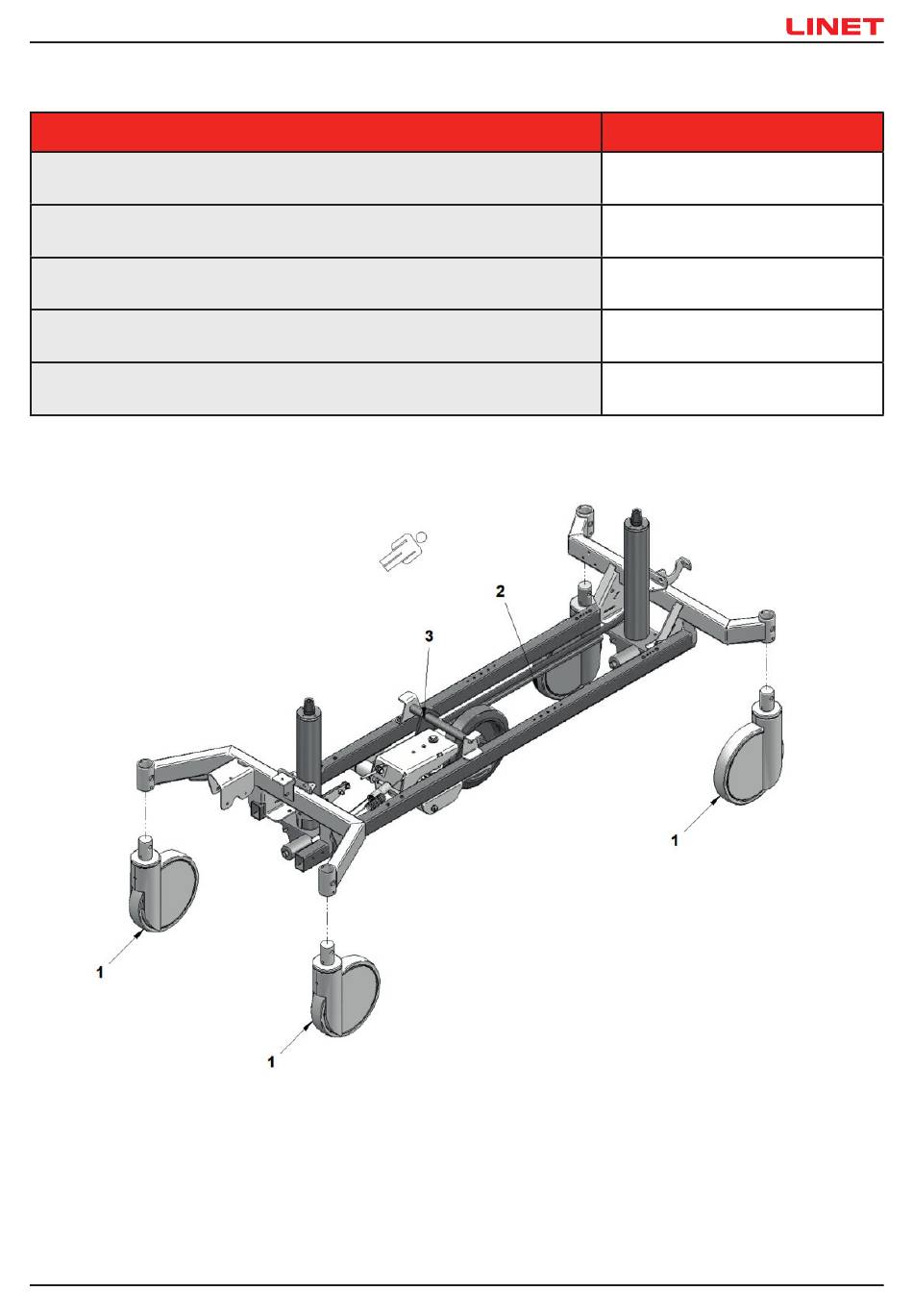

Fifth castor - side view (S6015959)
1) Standard castor, 2) Antistatic castor 3) Fifth castor
Value
12 mm
65 mm
12 mm
28 mm
430 N
9
