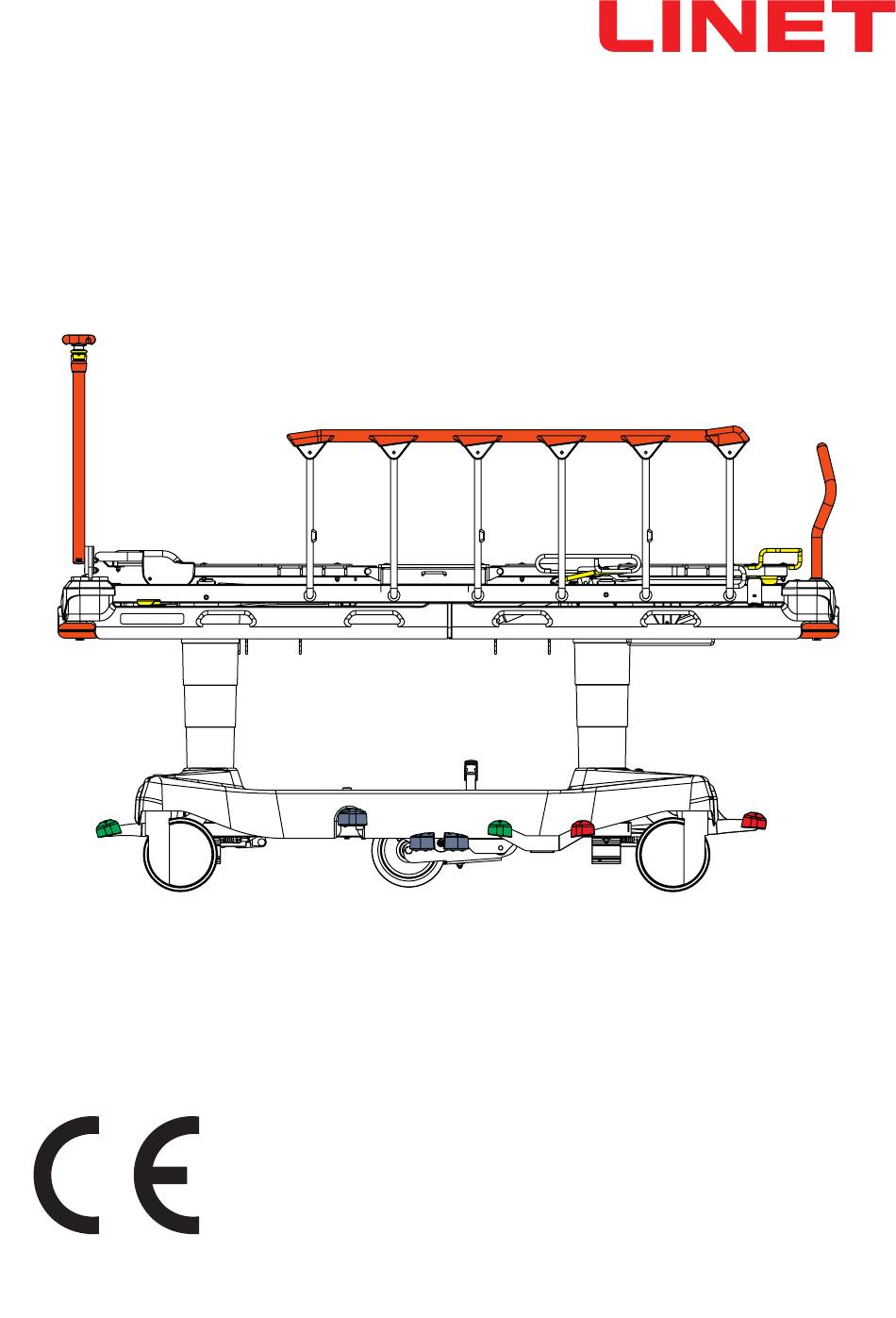

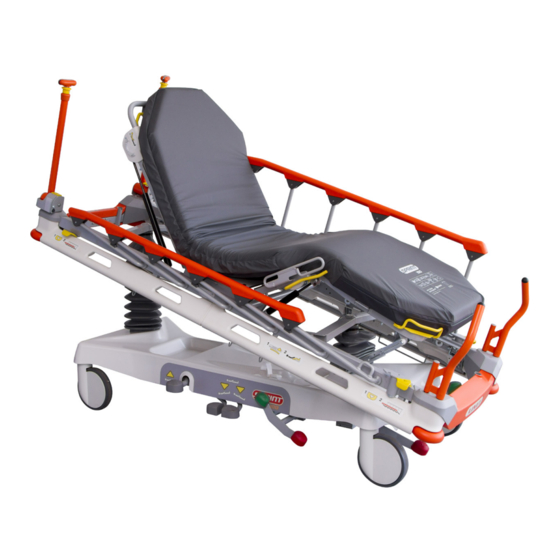

Sprint 100
Universal Transport Stretcher
Instructions for Use
D9U001ES1-0101
Version: 08
Publication Date: 2021-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sprint 100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LINET Sprint 100

Summary of Contents for LINET Sprint 100

  • Page 1 Instructions for Use and Technical Description Sprint 100 Universal Transport Stretcher D9U001ES1-0101 Version: 08 Publication Date: 2021-08...
  • Page 2 274 01 Slaný Tel.: +420 312 576 111 Fax: +420 312 522 668 E-mail: info@linet.cz http://www.linet.com Service department: service@linetgroup.com Sprint 100 Universal Transport Stretcher Author: L I N E T, s.r.o. Related links: www.linet.com D9U001ES1-0101 Version: 08 Publication Date: 2021-08 Copyright ©...

  • Page 3: Table Of Contents

    12.3.1 Sprint 100 with Standard Mattress Support Platform 1.6 Symbols on the Mattress ..........9 ..................52 1.7 Serial Label with UDI ..........10 12.3.2 Sprint 100 with Wide Mattress Support Platform ... 53 1.8 Definitions ..............11 12.4 Cleaning of Passive Mattress ........54 1.9 Abbreviations ..............11 12.4.1 General Guidance ..........54...

  • Page 4: Symbols And Definitions

    1 Symbols and Definitions 1.1 Warning Notices 1.1.1 Types of Warning Notices Warning notices are differentiated by the type of danger using the following key words: ► CAUTION warns about the risk of material damage. ► WARNING warns about the risk of physical injury. ► DANGER warns about the risk of fatal injury. 1.1.2 Structure of Warning Notices SIGNAL WORDS! Type and source of danger! ►...

  • Page 5: Symbols On The Package

    1.4 Symbols on the Package FRAGILE, HANDLE WITH CARE THIS WAY UP KEEP DRY (PROTECT FROM HUMIDITY) PAPER RECYCLING SYMBOL DO NOT USE HAND TRUCK HERE DO NOT STACK DURING STORAGE D9U001ES1-0101_08...

  • Page 6: Symbols On The Bed

    1.5 Symbols on the Bed READ INSTRUCTIONS FOR USE SAFE WORKING LOAD WARNING AGAINST CRUSHING OR TRAPPING JACK FOR ATTACHMENT OF CONDUCTOR FOR POTENTIAL EQUALISATION POSSIBLE RISK APPLIED PARTS TYPE B ONLY SUITABLE FOR INDOOR USE MAXIMUM WEIGHT OF PATIENT WEIGHT OF BED (depending on confi guration) CE MARKING RECYCLING SYMBOLS...
  • Page 7 MAXIMUM LOAD OF THE MONITOR SHELF 15 KG PLACE MONITOR ON THIS SIDE OF THE MONITOR SHELF MAXIMUM LOAD OF THE MONITOR SHELF 15 KG DO NOT PLACE MONITOR ON THIS SIDE OF THE MONITOR SHELF INSTRUCTION FOR PLACEMENT OF THE MONITOR SHELF (L=LEFT, R=RIGHT) MAXIMUM LOAD OF ONE HOOK 5 KG FOLD THE MARKED FOLDABLE INFUSION STAND AS THE FIRST ONE...
  • Page 8 MEDICAL DEVICE (COMPATIBLE WITH MEDICAL DEVICE REGULATION) WEEE SYMBOL (RECYCLE AS ELECTRONIC WASTE, DO NOT PUT INTO THE HOUSEHOLD WASTE) BATCH NUMBER (ACCESSORIES) UNIQUE DEVICE IDENTIFICATION (FOR MEDICAL DEVICES) MASS OF MOBILE HOSPITAL BED (MASS OF EMPTY BED + SAFE WOR- KING LOAD) Fig.

  • Page 9: Symbols On The Mattress

    1.6 Symbols on the Mattress READ INSTRUCTIONS FOR USE CE MARKING COVER MATERIALS ARE FIRE RESISTANT TO BS7175, SOURCE 0, 1 AND 5 DO NOT IRON DO NOT USE PHENOL DO NOT WRING REGULARLY INSPECT THE INSIDE OF THE COVER FOR CONTAMINATION MACHINE WASH AT MAX.

  • Page 10: Serial Label With Udi

    TUMBLE DRY ON LOW HEAT SETTING (MAX. 60°C) MATTRESS FOOT PART HANDWASH WITH DETERGENT (INITIAL TEMPERATURE OF HOT WATER SHOULD NOT EXCEED 50°C) 1.7 Serial Label with UDI There is a serial label of the bed under the Backrest. Fig. Position of serial label on the bed D9U001ES1-0101_08...

  • Page 11: Definitions

    1.8 Definitions Basic Bed Configuration the pricelist model configuration, not including a mattress Bed Weight The value depends on the product configuration, accessories or customer adjustments. Clearance of Undercarriage the height from the floor to the lowest point of the undercarriage between the castors, for the manipulation of accessories under a braked bed in the standard position Reference number Reference number depends on configuration.

  • Page 12: Safety Instructions

    2 Safety Instructions WARNING! Staff expert assessment is needed to consider all individual cases of contraindications! WARNING! Risk of trapping or squeezing because of patient´s body constitution disproportionate to the size of mattress  support platform! WARNING! Certain bed positions are not suitable for specific diagnosis/medical conditions. Fowler position is not suita- ble for spinal cord injuries! Trendelenburg position is not suitable for patients with higher intracranial pressu- WARNING! Any serious incident that has occurred in relation to the device should be reported to the manufacturer and the competent authority of the Member State in which the user and/or patient is established! WARNING! This medical device is not intended for oxygen enriched environment! WARNING! This medical device is not intended for use with flammable substances! WARNING!
  • Page 13 Additional instructions for correct use: ► Follow the instructions for use carefully. ► Use the bed exclusively if it is in perfect working order. ► If necessary, check the bed functions daily or at each shift change. ► Ensure any user has read and understood this manual completely before operating the product. ►...

  • Page 14: Intended Use (Sprint 100)

    4 Intended use (Sprint 100 mattresses) The intended use is provide basic support surface for patient being treated on LINET’s sprint range of Stretchers only. They are designed to provide comfort and reduce likelihood of pressure ulcers during short term use. The use of these mattresses does not remove the need for regular repositioning in line with best clinical practice (ref: NPUAP, EPUAP).

  • Page 15: Product Description

    5 Product Description SPRINT 100 WITH 4-PART MATTRESS SUPPORT PLATFORM 11 10 Fig. Bed Overview (Sprint 100 with 4-part Mattress Support Platform) Mattress Support Platform Collapsible Siderail Thighrest Handle Bushings for Accessories Corner Bumper 6.  Brake Pedal Siderail Release Mechanism Thighrest Control 9. ...
  • Page 16 SPRINT 100 WITH 2-PART MATTRESS SUPPORT PLATFORM Fig. Bed Overview (Sprint 100 with 2-part Mattress Support Platform) Mattress Support Platform Collapsible Siderail Bushings for Accessories Corner Bumper 5.  Brake Pedal Siderail Release Mechanism 7.  Drive Pedal and Brake Pedal (optional) 8.   Foot End Lowering Pedal 9.  Head End Lowering Pedal Lifting Pedal 11. ...

  • Page 17: Technical Specification

    ■ Siderails ■  Bed Ends ■  Mattress 6.2 Mechanical Specifications  6.2.1 Sprint 100 with Standard Mattress Support Platform SPRINT 100 WITH 4-PART MATTRESS SUPPORT PLATFORM Parameter Value External Dimensions in Standard Bed Position (length x width) 211 cm x 76 cm Siderail Height above Mattress Support Platform 4 cm (minimum), 36,5 cm (maximum) Siderail Length 125 cm Distance between siderail bars...

  • Page 18: Sprint 100 With Wide Mattress Support Platform

    SPRINT 100 WITH 2-PART MATTRESS SUPPORT PLATFORM Parameter Value External Dimensions in Standard Bed Position (length x width) 211 cm x 76 cm Siderail Height above Mattress Support Platform 3 cm (minimum), 35,5 cm (maximum) Siderail Length 125 cm Distance between siderail bars 21 cm Mattress dimensions (length x width) 193 cm x 66 cm...

  • Page 19: Environment Conditions (Sprint 100)

    SPRINT 100 WITH 2-PART MATTRESS SUPPORT PLATFORM Parameter Value External Dimensions in Standard Bed Position (length x width) 211 cm x 86 cm Siderail Height above Mattress Support Platform 3 cm (minimum), 35,5 cm (maximum) Siderail Length 125 cm Distance between siderail bars 21 cm Mattress dimensions (length x width) 193 cm x 76 cm...

  • Page 20: Scope Of Delivery And Bed Variants

    Notify the carrier and supplier of any deficiencies or damages immediately as well as in writing or make a note on the delivery note. 8.2 Scope of Delivery ■ Sprint 100 Universal Transport Stretcher ■ Instructions for use 8.3 Sprint 100 Variants Basic Configuration:...

  • Page 21: Putting Into Service

    Material damage due to incorrect use! ► Do not use pedals for lifting or lowering if the bed undercarriage is not in horizontal position! NOTE For safe, easy handling, LINET ® recommends having two technicians assemble the bed. Set up the bed as follows: ► Unpack the bed.

  • Page 22: Mattress Support Platform

    9.1 Mattress Support Platform Sprint 100 has Mattress Support Platform with two sections or four sections. 2-PART MATTRESS SUPPORT PLATFORM LEFT SIDE RIGHT SIDE Fig. 2-part Mattress Support Platform 4-PART MATTRESS SUPPORT PLATFORM LEFT SIDE RIGHT SIDE Fig. 4-part Mattress Support Platform...

  • Page 23: Potential Interconnection (Optional)

    9.2 Potential Interconnection (optional) The bed is equipped with a standard protective connector. This connector is used for potential equalisation between the bed and any intravascular or intracardiac device connected to the patient to protect the patient from static electric shocks. Fig.
  • Page 24 Suitable surfaces: ■ Tile ■ Hard linoleum ■ Poured flooring Unsuitable surfaces: ■ Too soft, unsealed or defective flooring ■ Soft wooden flooring ■ Soft and porous stone floors ■ Carpeted floors with underlay ■ Soft linoleum Outdoor transport (especially from heliport) is allowed under these conditions: Surface of an outdoor environment is not too soft and too segmented and too coarse but hard and flat as required for indoor use. D9U001ES1-0101_08...

  • Page 25: Manipulation

    10 Manipulation WARNING! Risk of injury when adjusting the bed! ► Ensure that there are no body parts between the Mattress Support Platform elements and the Mattress Support Platform frame when adjusting the bed. ► Ensure that there are no body parts below the Mattress Support Platform frame before adjusting the bed. WARNING! Risk of injury when sitting on the Foot End! ►...

  • Page 26: Collapsible Siderails

    10.1 Collapsible Siderails The collapsible siderails are components of the bed in contact with patient. The nursing personnel are responsible for the siderails being raised up while the patient is in bed. WARNING! Risk of injury due to incorrectly latched siderail! ► Ensure that siderail is secured in the upper position or folded down to the lowest position. WARNING! Risk of injury due to incorrect position of siderails! ►...

  • Page 27: Castor Control

    Fig. Manipulation with Siderail Release Mechanism at foot end Fig. Manipulation with Siderail Release Mechanism at head 10.2 Castor Control CAUTION! Material damage due to incorrect transport and involuntary movement! ► Ensure that the castors are braked prior to assembly, disassembly and maintenance. ►...

  • Page 28: Braked Bed

    10.2.1 Braked Bed To brake the bed: ► Press red Brake pedal (1 or 2) to the lower position. All four castors are braked. Fig. Positions of Brake pedals 1. Brake Pedal (standard) - RED 2. Brake Pedal (optional) - RED 10.2.2 Forward Movement (Steering) To set forward movement: ► Press green Drive pedal (3 or 4) to the lower position. The front left castor is locked after its forward movement was reached.

  • Page 29: Unrestricted Movement

    10.2.3 Unrestricted Movement To set unrestricted movement: ► Leave all Brake pedals and Drive pedals in their middle position. All four castors are unlocked. Unrestricted movement is enabled. D9U001ES1-0101_08...

  • Page 30: Bed Positioning

    10.3 Bed Positioning 10.3.1 Backrest WARNING! Risk of injury or material damage due to incorrect lifting of the Backrest without any patient on the mattress  support platform! ► During lifting the Backrest up without any patient on the mattress support platform, hold the Backrest carefully so that a fast movement of the Backrest does not hit you! ► Before lifting the Backrest up without any patient on the mattress support platform, ensure that there are no ob- jects or body parts between the lateral bars of raised siderails and the Backrest! To position Backrest:...

  • Page 31: Thighrest (Only 4-Part Mattress Support Platform)

    10.3.2 Thighrest (only 4-part Mattress Support Platform) To lift Thighrest: ► press Thighrest control and repeat it until intended position is reached If the Thighrest is loaded use Thighrest handle to lift the Thighrest. To lower Thighrest: ► press and hold Thighrest control and push Thighrest down until intended position is reached Fig.

  • Page 32: Calfrest (Only 4-Part Mattress Support Platform)

    10.3.3 Calfrest (only 4-part Mattress Support Platform) To position Calfrest, position Thighrest firstly. To lift Calfrest: ► lift Calfrest by the handle to intended position ► lower the Calfrest so that catch fits in the ratchet-bar To lower Calfrest: ► lift Calfrest slightly by the handle ► lower Calfrest to intended position ►...

  • Page 33: Lifting

    10.3.4 Lifting To lift Mattress Support Platform: ► press Lifting pedal and repeat it until intended position is reached To perform bleeding procedure of hydraulic units: ► press Lifting pedal 10 times in the highest bed position Fig. Positions of Lifting pedals D9U001ES1-0101_08...

  • Page 34: Lowering

    10.3.5 Lowering  CAUTION! Risk of material damage due to objects on the undercarriage cover! ► Do not place objects on the undercarriage cover outside storage space! ► Respect dimensions of objects placed in storage space of the undercarriage cover! ► For information about objects intended for storage in the space of undercarriage cover follow chapter Accesso- ries.

  • Page 35: Trendelenburg Position

    10.3.6 Trendelenburg Position WARNING! Risk of injury due to improper use of Trendelenburg Position! ► Hospital staff is responsible for assessing if the physical and psychological state of the patient is in accordance with use of the Trendelenburg Position. ► Hospital staff is responsible for assessing whether used bedclothes increase the risk of patient´s sliding from the bed! To reach Trendelenburg position: ►...

  • Page 36: Anti-Trendelenburg Tilt

    10.3.7 Anti-Trendelenburg Tilt WARNING! Risk of injury due to patient´s sliding! ► Hospital staff is responsible for assessing whether used bedclothes increase the risk of patient´s sliding from the bed! To reach Anti-Trendelenburg Tilt: ► press Foot End Lowering pedal until intended position is reached Fig. Positions of Foot End Lowering pedals D9U001ES1-0101_08...

  • Page 37: Cardiac Chair Position (Only 4-Part Mattress Support Platform)

    10.3.8 Cardiac Chair Position (only 4-part Mattress Support Platform) To reach Cardiac Chair Position: ► lift the Mattress Support Platform to facilitate Thighrest and Backrest positioning (1) ► lift the Thighrest (2) ► lift the Backrest (3) ► lift the Mattress Support Platform to the maximum position (4) ►...

  • Page 38: Cpr Backrest Release

    10.4 CPR Backrest Release In order to adjust Mattress Support Platform for Cardiopulmonary Resuscitation (CPR) it is necessary to position Backrest to the lowest position and Mattress Support Platform to the lowest position. In the case of Mattress Support Platform with 4 sections posi- tion Backrest and Thighrest to the lowest position and Mattress Support Platform to the lowest position.

  • Page 39: The 4-Part Mattress Support Platform

    10.4.2 The 4-part Mattress Support Platform Set the position as follows: ► Adjust Backrest and Thighrest to the lowest position. ► Adjust Mattress Support Platform to the lowest position. Fig. Preparation for Cardiopulmonary Resuscitation (4-part Mattress Support Platform) D9U001ES1-0101_08...

  • Page 40: Equipment

    11 Equipment Product equipment depends on product configuration. 11.1 Accessory Holders (optional) Accessory holders are intended for hanging accessories. Fig. Accessory holders - 4 hooks (on side) Fig. Accessory holders - 2 hooks (on side) D9U001ES1-0101_08...

  • Page 41: Accessory Rail With Plastic Hooks

    11.2 Accessory Rail with plastic hooks CAUTION! It is not recommended to place the hooks suspended on the accessory rail and the accessories suspended on  these hooks directly above the pedals on the sides of Sprint 100 in order to facilitate the use of pedals during  bed height adjustment and the use of brake pedals during bed transport! Accessory rail with 4 plastic hooks is intended for hanging accessories. It is located on the sides of bed or at head end / foot end. Fig. Accessory Rail with plastic hooks (on side) Fig.

  • Page 42: Din Rail

    11.3 DIN Rail DIN Rail is intended for hanging accessories. It is located on the sides of bed or at head end / foot end. Fig. DIN Rail (on side) Fig. DIN Rail (at head end or foot end) D9U001ES1-0101_08...

  • Page 43: Undercarriage Cover

    11.4 Undercarriage Cover CAUTION! Risk of material damage due to objects on the undercarriage cover! ► Do not place objects on the undercarriage cover outside storage space! ► Respect dimensions of objects placed in storage spaces of the undercarriage cover during lifting, lowering and tilting of the bed! There are 2 types of storage spaces of the undercarriage cover. Longitudinal storage spaces (1) are intended for oxygen bottle (with capacity 10 litres (type E only), 5 litres or less).

  • Page 44: Iv&Drive (Foldable Infusion Stands)

    11.6 IV&Drive (Foldable Infusion Stands) WARNING! Risk of injury due to incorrect placement of an infusion pump! ► Ensure the infusion pump on the Foldable infusion stand will not collide with any movable parts of the Sprint 100 (especially Backrest) or with the patient! CAUTION! Risk of material damage due to incorrect placement of an infusion pump! ► Place an infusion pump carefully on the orange non-telescopic part of the Foldable infusion stand in order to prevent the risk of injury or damage! Foldable infusion stand equipped with 2 hooks is intended for carrying IV bags or baskets for intravenous solutions.

  • Page 45: Handles

    To fold Foldable infusion stands down: ► Ensure the right Foldable infusion stand is not extended. ► Grasp orange bar of the right Foldable infusion stand. ► Lift the right Foldable infusion stand up (1) to unlock it. ► Fold the right Foldable infusion stand down (2). ►...

  • Page 46: Foldable Handles

    Fig. Removable handles on head end and on foot end (side view) 11.7.2 Foldable handles To fold Foldable handle down: ► Lift the Foldable handle up (1) to unlock it. ► Fold the Foldable handle down (2). To lift Foldable handle up: ► Lift the Foldable handle up. ►...

  • Page 47: Fixed Handles

    11.7.3 Fixed handles Fixed handles are screwed to corners of the bed on head end or on foot end. User is not allowed to change positions of the Fixed handles. Removal and installation must be performed by trained service technician according to the corresponding service instruction provided by manufacturer.

  • Page 48: Examination With C-Arm (In-Bed Fluoroscopy)

    The in-bed C-arm examination is suitable above all for the unstable patients contraindicated to be moved. Sprint 100 beds intended for use with C-arm have different structure of the Backrest in order to avoid artifacts on the x-ray images.

  • Page 49: Mattress

    CAUTION! Incompatibility with bed due to incorrect mattress dimensions! ► In the case of other mattresses check maximum approved mattress dimensions (chapter Technical Specification) and its specific shape. Sprint 100 bed is designed for special passive mattresses from LINET portfolio. The manufacturer recommends the use of the following mattress systems on the Sprint 100 bed: SPRINT 100 PASSIVE MATTRESSES ■  Sprint Standard                                                                      ...

  • Page 50: Anti-Slip Coating

    The bottom surface of the Sprint 100 mattress has an ‘anti-slip’ coating. This is intended to help prevent the mattress moving around on the Sprint 100 mattress support platform during patient transport, mattress support platform articulation or whilst the patient is moving around.
  • Page 51 Fig. Fixation of mattress with straps on the Sprint 100 with 2-part mattress support platform Fig. Fixation of mattress with straps on the Sprint 100 with 4-part mattress support platform D9U001ES1-0101_08...

  • Page 52: Mattresses Specifications

    12.3 Mattresses Specifications 12.3.1 Sprint 100 with Standard Mattress Support Platform MATTRESS FOR 2-PART MATTRESS SUPPORT PLATFORM Specification Sprint Standard Sprint Comfort Sprint Advanced Length 193 cm 193 cm 193 cm Width 66 cm 66 cm 66 cm Height 8 cm 10 cm 13 cm Maximum Mattress Weight 7 kg Foam Type one sided...

  • Page 53: Sprint 100 With Wide Mattress Support Platform

    12.3.2 Sprint 100 with Wide Mattress Support Platform MATTRESS FOR 2-PART STANDARD MATTRESS SUPPORT PLATFORM Specification Sprint Advanced Sprint Comfort Length 193 cm 193 cm Width 76 cm 76 cm Height 13 cm 10 cm Maximum Mattress Weight 11 kg Foam Type one sided one sided Number of Layers Used Materials (Foam) Polyurethan + Viscoelastic...

  • Page 54: Cleaning Of Passive Mattress

    12.4 Cleaning of Passive Mattress CAUTION! Incorrect cleaning/disinfection can damage the mattress! ► Do not use pressure or steam cleaners. ► Follow the instructions and observe the dosages recommended by the manufacturer. ► Ensure that disinfectants are selected and applied by qualified hygiene experts only. ►...

  • Page 55: Routine Cleaning And Disinfection

    12.4.2 Routine Cleaning and Disinfection Cleaning the mattress: ► Check mattress cover top for any signs of damage or for liquid ingress. ► Replace or repair and completely disinfect mattress cover top if damaged. Also check if the mattress core is not contami- nated.

  • Page 56: Accessories

    13 Accessories WARNING! Risk of injury due to incompatible accessories! ► Use exclusively original accessories from the manufacturer. The manufacturer is not responsible for the use of unapproved accessories. WARNING! Risk of injury due to damaged accessories! ► Use exclusively accessories in perfect condition. Compatible Identification  Compatible Configurations Accessories Numbers Sprint 100 with Standard Mattress  Sprint 100 with Wide Mattress  Support Platform (2-part Mattre- Support Platform (2-part Mattre- ss Support Platform and 4-part ss Support Platform and 4-part...

  • Page 57: Infusion Stand

    13.1 Infusion Stand WARNING! Risk of injury due to incorrect placement of an infusion pump! ► Ensure the infusion pump on the Infusion stand will not collide with any movable parts of the Sprint 100 (especia- lly Backrest) or with the patient! WARNING! Risk of injury and risk of material damage due to incorrect use! ► Do not use the infusion stand as driving/pushing device during the bed transport.

  • Page 58: Telescopic Infusion Stand

    WARNING! Risk of injury due to incorrect placement of an infusion pump! ► Ensure the infusion pump on the Infusion stand will not collide with any movable parts of the Sprint 100 (especially Backrest) or with the patient! WARNING! Risk of injury and risk of material damage due to incorrect use! ► Do not use the infusion stand as driving/pushing device during the bed transport.

  • Page 59: Monitor Shelf

    13.4 Monitor Shelf Monitor shelf is intended for carrying a monitor when the monitor shelf is folded inwards the bed (4). When the monitor shelf is folded outwards the bed (3) it serves for writing. When the monitor shelf is folded down (2) it serves as a foot board. Monitor shelf is equipped with straps to fix a monitor on the monitor shelf.

  • Page 60: Paper Roll Holder

    13.5 Paper Roll Holder Paper Roll Holder is intended for holding a paper bed sheet. Paper Roll Holder is located at foot end. On the opposite bed end, the paper bed sheet can be fixed under the mattress. Fig. Positions for Paper Roll Holder Fig.

  • Page 61: Oxygen Bottle Holder

    13.7 Oxygen Bottle Holder WARNING! Risk of injury with Oxygen Bottle Holder due to incorrect use or due to careless driving! ► Ensure the Oxygen Bottle Holder is correctly fitted in correct position. ► It is necessary to place Oxygen Bottle Holder (with or without O2 bottle) before transport to secure transport position. ► Be aware of people or objects in close proximity when driving or manipulating the bed equipped with Oxygen Bottle Holder.

  • Page 62: X-Ray Cassette Holder (Optional)

    Accessory rail at head end is not compatible with both X-Ray Cassette Holders when Backrest is down! ► Accessory rail at foot end (only Sprint 100 with 2-part Mattress Support Platform) is not compatible with both X- -Ray Cassette Holders! ►...
  • Page 63 Mattress Support Platform Covers are x-ray translucent. The Sprint 100 with 2-part Mattress Support Platform can be equipped with an X-Ray Cassette Holder which can be inserted under the Backrest or under the Foot section. The Sprint 100 with 4-part Mattress Support Platform can be equipped with an X-Ray Cassette Holder which can be inserted just under the Backrest.
  • Page 64 Fixed X-Ray Cassette Holder This X-Ray Cassette Holder can be used for the x-ray cassettes with length 58 cm. 1. X-ray cassette 2. Strip indicating where the X- -Ray Cassette Holder ends Fig. Fixed X-Ray Cassette Holder D9U001ES1-0101_08...
  • Page 65 Backrest adjustment during X-Ray Examinati- on. In the case of the Sprint 100 with 2-part Mattress Support Platform the both X-Ray Cassette Holders can be adjusted also under the Foot section without fixation or both of them can be pushed to the most remote position.
  • Page 66 Fig. Adjustable X-Ray Cassette Holder under the Foot section (Sprint 100 with 2-part Mattress Support Platform) Fig. Adjustable X-Ray Cassette Holder under the Backrest (Sprint 100 with 4-part Mattress Support Platform) To fix X-Ray Cassette Holder under the Backrest: To fix X-Ray Cassette Holder under the Foot section: ► Insert the rightly oriented X-Ray Cassette Holder ►...

  • Page 67: Instructions For X-Ray Examination

    ► Insert back the X-Ray Cassette Holder with x-ray cassette to the intended position under the Backrest (or also under the Foot section in the case of Sprint 100 with 2-part Mattress Support Platform). ► Adjust parameters of the x-ray device and do the image.
  • Page 68 Scope of the X-Ray Examination (Sprint 100 with 2-part Mattress Support Platform) It is possible to perform the X-Ray Examination under all parts of the Mattress Support Platform of the Sprint 100 with 2-part Mattre- ss Support Platform because the both X-Ray Cassette Holders can be placed under the Backrest or under the Foot section.

  • Page 69: Cleaning/Disinfection

    Mattress support platform cover High Pressure Laminate (HPL) (Thighrest/Foot section) Mattress support platform cover only Sprint 100 with 4-part mattress support platform: High Pressure Laminate (HPL) (Calfrest) Seat section only Sprint 100 with 4-part mattress support platform: High Pressure Laminate (HPL)

  • Page 70: Cleaning (Sprint 100)

       ■ by the environmental protection agency of the country in which the mattress replacement system is to be used. 14.1 Cleaning (Sprint 100) Prepare for cleaning as follows: ► Put the Mattress Support Platform in the highest position.

  • Page 71: Complete Cleaning And Disinfection

    14.1.3 Complete Cleaning and Disinfection Clean the following bed parts: ■ All control elements for adjusting the bed ■ All handles ■ Bed ends ■ Siderails (in highest position) ■ Freely accessible mattress surface ■ Accessory rails ■ All Mattress Support Platform covers ■ Plastic undercarriage covers ■...

  • Page 72: Maintenance

    Ensure that maintenance is performed exclusively by manufacturer´s customer service or by authorised service personnel certified by the manufacturer. ► If the defect cannot be repaired, do not use the bed. LINET ® recommends attaching the maintenance plaque to the bed. 16.1 Regular maintenance ► Check regularly movable parts for wear.

  • Page 73: Disposal

    Hire an approved waste disposal company for disposal! 18 Warranty LINET ® will only be held responsible for the safety and reliability of products that are regularly serviced, maintained and used in accordance with the safety guidelines. Should a serious defect arise that cannot be repaired during maintenance: ►...
