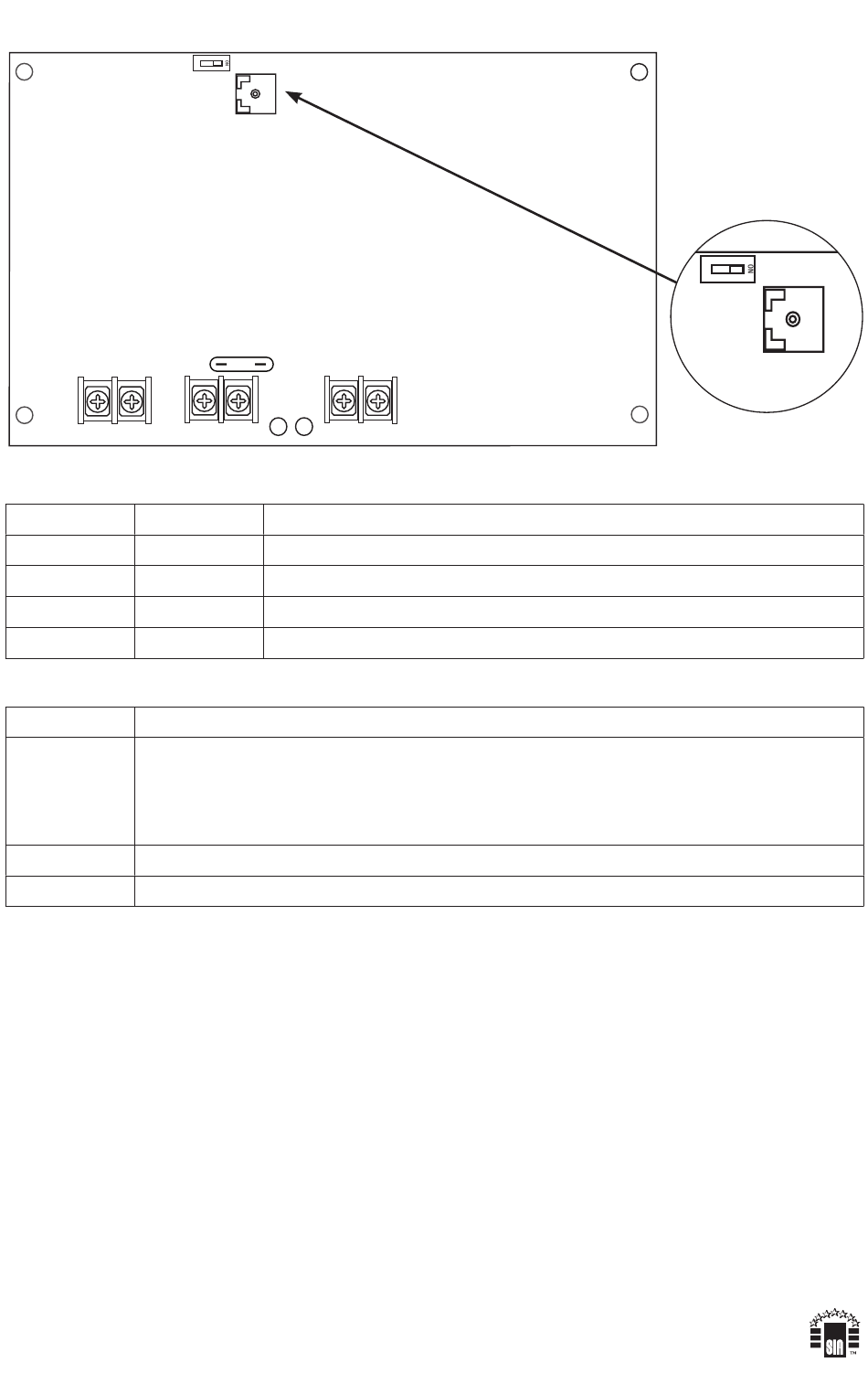

Fig. 1
AC AC
Red (DC) Green (AC)
ON ON
ON OFF
OFF ON
OFF OFF
Terminal Function/Description
Low voltage AC input (Voltage Output/Transformer Selection Table).
For 12VDC output use 28VAC or higher with 175VA power rating or higher.
AC/AC
For 24VDC output use 28VAC with 175VA power rating or higher.
Caution: Do not apply voltages above 28VAC (28VAC is maximum input rating).
– DC + 12VDC / 24VDC @ 10A continuous output.
– BAT + Stand-by battery connections. Maximum charge rate 0.7A.
Altronix is not responsible for any typographical errors.
––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056
website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty
IISMP10 - Rev. 110606
OFF 24VDC
ON 12VDC
15
AC DC
--- DC + --- BAT +

LED Diagnostics:

Power Supply Status
Normal operating condition.
Loss of AC. Stand-by battery is supplying power.
No DC output. Short circuit or thermal overload condition.
Loss of AC. Discharged or no stand-by battery. No DC output.

Terminal Identification:

AC AC
H18U
Fig. 1a
OFF 24VDC
ON 12VDC
15
AC DC
--- DC +
