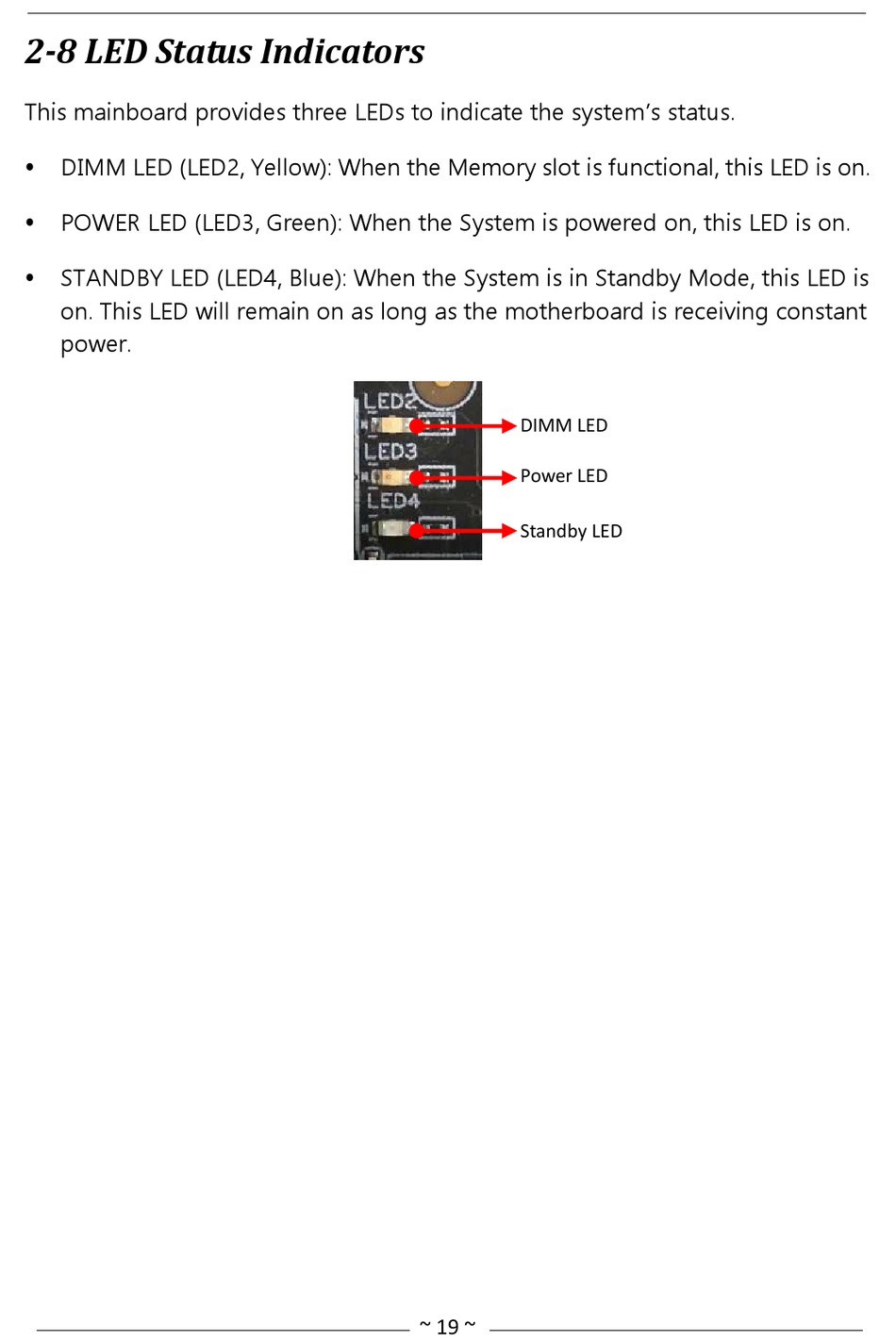

2-8 LED Status Indicators

This mainboard provides three LEDs to indicate the system's status.
 DIMM LED (LED2, Yellow): When the Memory slot is functional, this LED is on.
 POWER LED (LED3, Green): When the System is powered on, this LED is on.
 STANDBY LED (LED4, Blue): When the System is in Standby Mode, this LED is
on. This LED will remain on as long as the motherboard is receiving constant
power.
DIMM LED
Power LED
Standby LED
~ 19 ~
