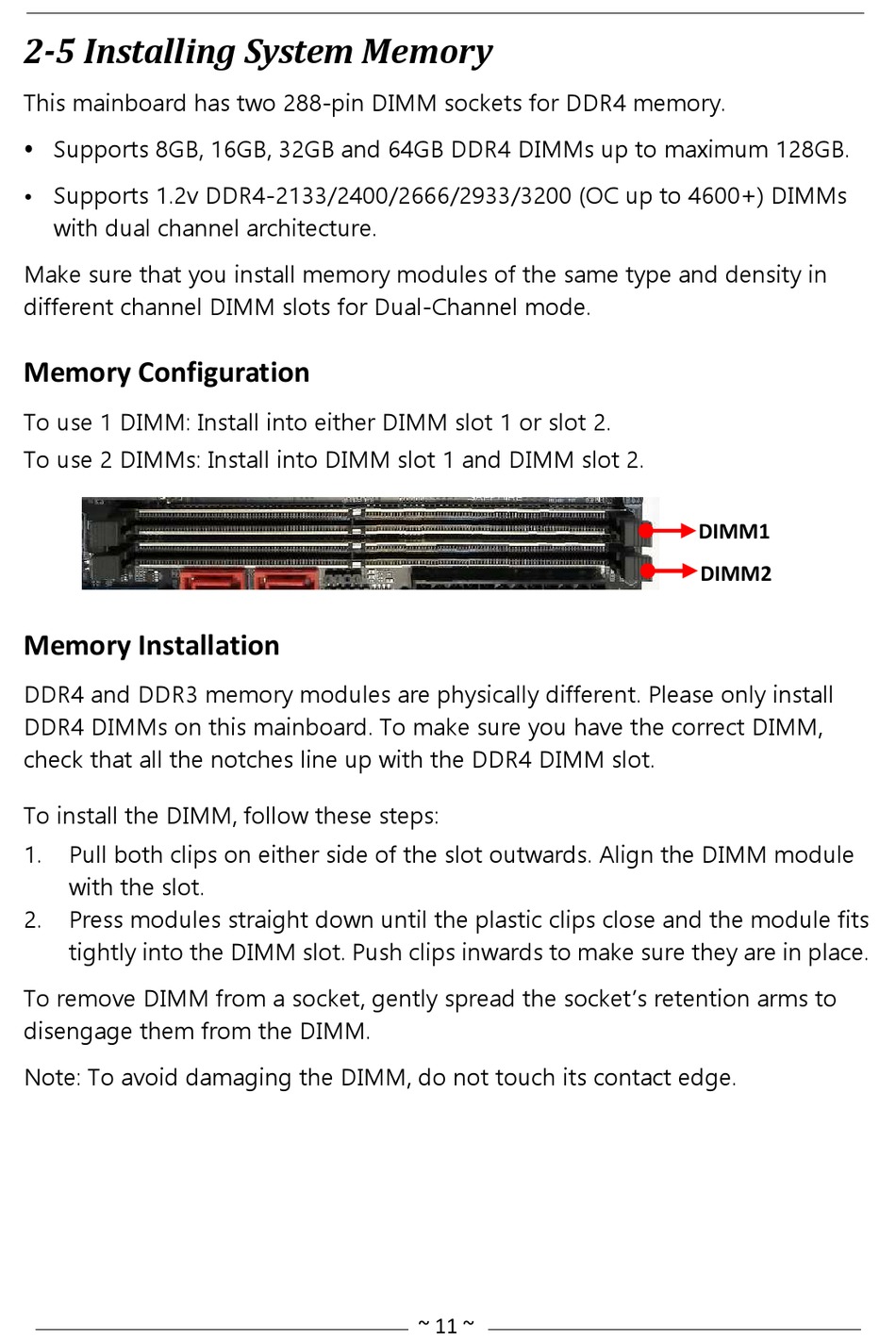

2-5 Installing System Memory

This mainboard has two 288-pin DIMM sockets for DDR4 memory.
 Supports 8GB, 16GB, 32GB and 64GB DDR4 DIMMs up to maximum 128GB.
Supports 1.2v DDR4-2133/2400/2666/2933/3200 (OC up to 4600+) DIMMs

with dual channel architecture.
Make sure that you install memory modules of the same type and density in
different channel DIMM slots for Dual-Channel mode.

Memory Configuration

To use 1 DIMM: Install into either DIMM slot 1 or slot 2.
To use 2 DIMMs: Install into DIMM slot 1 and DIMM slot 2.

Memory Installation

DDR4 and DDR3 memory modules are physically different. Please only install
DDR4 DIMMs on this mainboard. To make sure you have the correct DIMM,
check that all the notches line up with the DDR4 DIMM slot.
To install the DIMM, follow these steps:
1. Pull both clips on either side of the slot outwards. Align the DIMM module
with the slot.
2. Press modules straight down until the plastic clips close and the module fits
tightly into the DIMM slot. Push clips inwards to make sure they are in place.
To remove DIMM from a socket, gently spread the socket's retention arms to
disengage them from the DIMM.
Note: To avoid damaging the DIMM, do not touch its contact edge.
~ 11 ~
DIMM1
DIMM2
