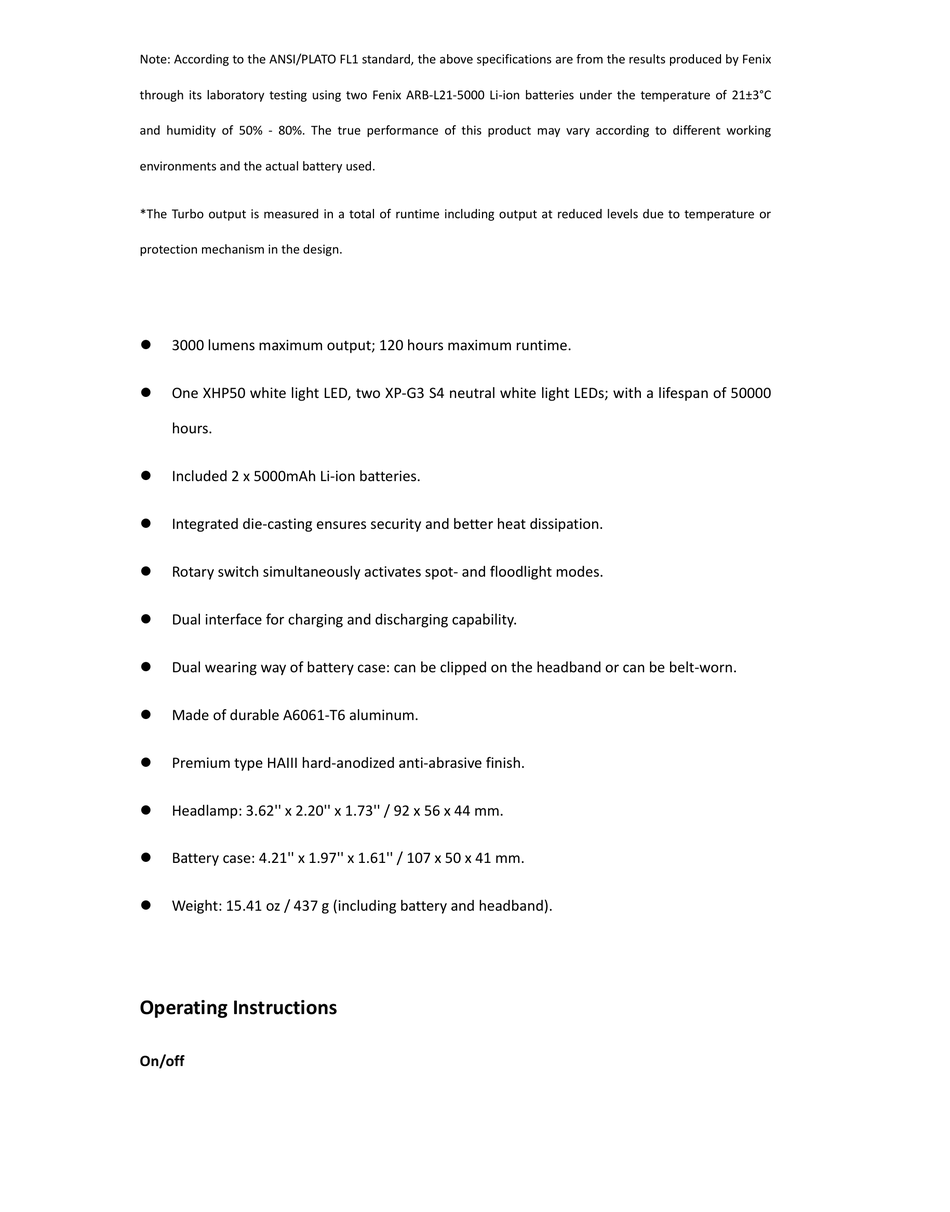

Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix
through its laboratory testing using two Fenix ARB‐L21‐5000 Li‐ion batteries under the temperature of 21±3°C
and humidity of 50% ‐ 80%. The true performance of this product may vary according to different working
environments and the actual battery used.
*The Turbo output is measured in a total of runtime including output at reduced levels due to temperature or
protection mechanism in the design.

3000 lumens maximum output; 120 hours maximum runtime.

One XHP50 white light LED, two XP‐G3 S4 neutral white light LEDs; with a lifespan of 50000
hours.

Included 2 x 5000mAh Li‐ion batteries.

Integrated die‐casting ensures security and better heat dissipation.

Rotary switch simultaneously activates spot‐ and floodlight modes.

Dual interface for charging and discharging capability.

Dual wearing way of battery case: can be clipped on the headband or can be belt‐worn.

Made of durable A6061‐T6 aluminum.

Premium type HAIII hard‐anodized anti‐abrasive finish.

Headlamp: 3.62'' x 2.20'' x 1.73'' / 92 x 56 x 44 mm.

Battery case: 4.21'' x 1.97'' x 1.61'' / 107 x 50 x 41 mm.

Weight: 15.41 oz / 437 g (including battery and headband).
Operating Instructions
On/off
