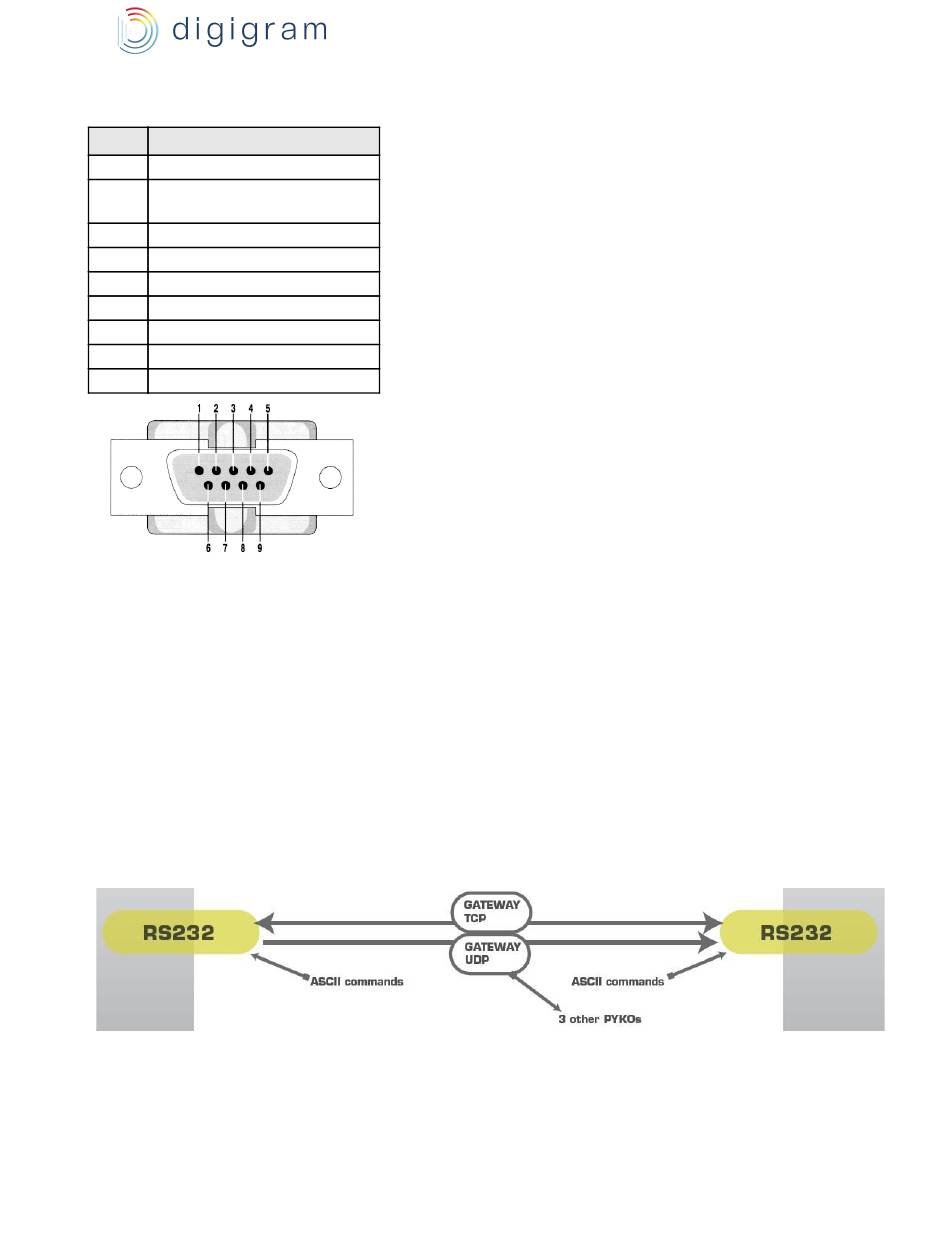

14. APPENDIX G: SERIAL PORT (RS232 ON DB9)
Pin Description
1
not connected
2
RxD (received data)RxD
(received data)
3
TxD (transmitted data)
4
not connected
5
signal ground
6
not connected
7
RTS (request to send)
8
CTS (clear to send)
9
not connected
PYKO-out provides an RS232 serial port on a male DB-9 connector on its back panel. This port can be
used for remote control of PYKO-out through an external interface such as e.g. Vity, AMX or Crestron,
or for tunneling purposes.
It is possible to use the RS232 in gateway mode, in multicast, and in multi-destination (up to 4
destinations)
PYKO-out: Professional IP audio endpoint
35
