Summary of Contents for Digigram PYKO-in

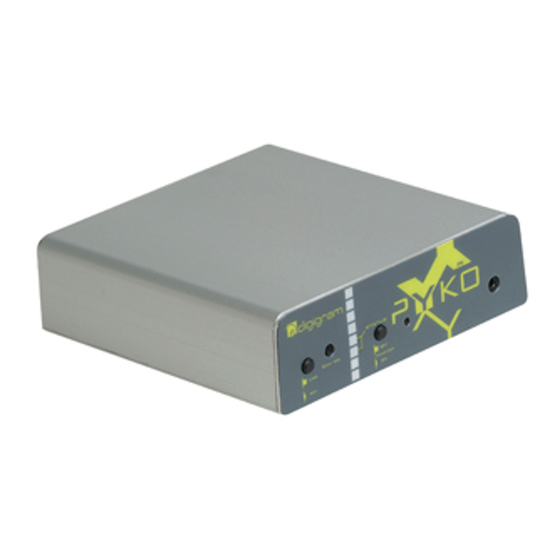

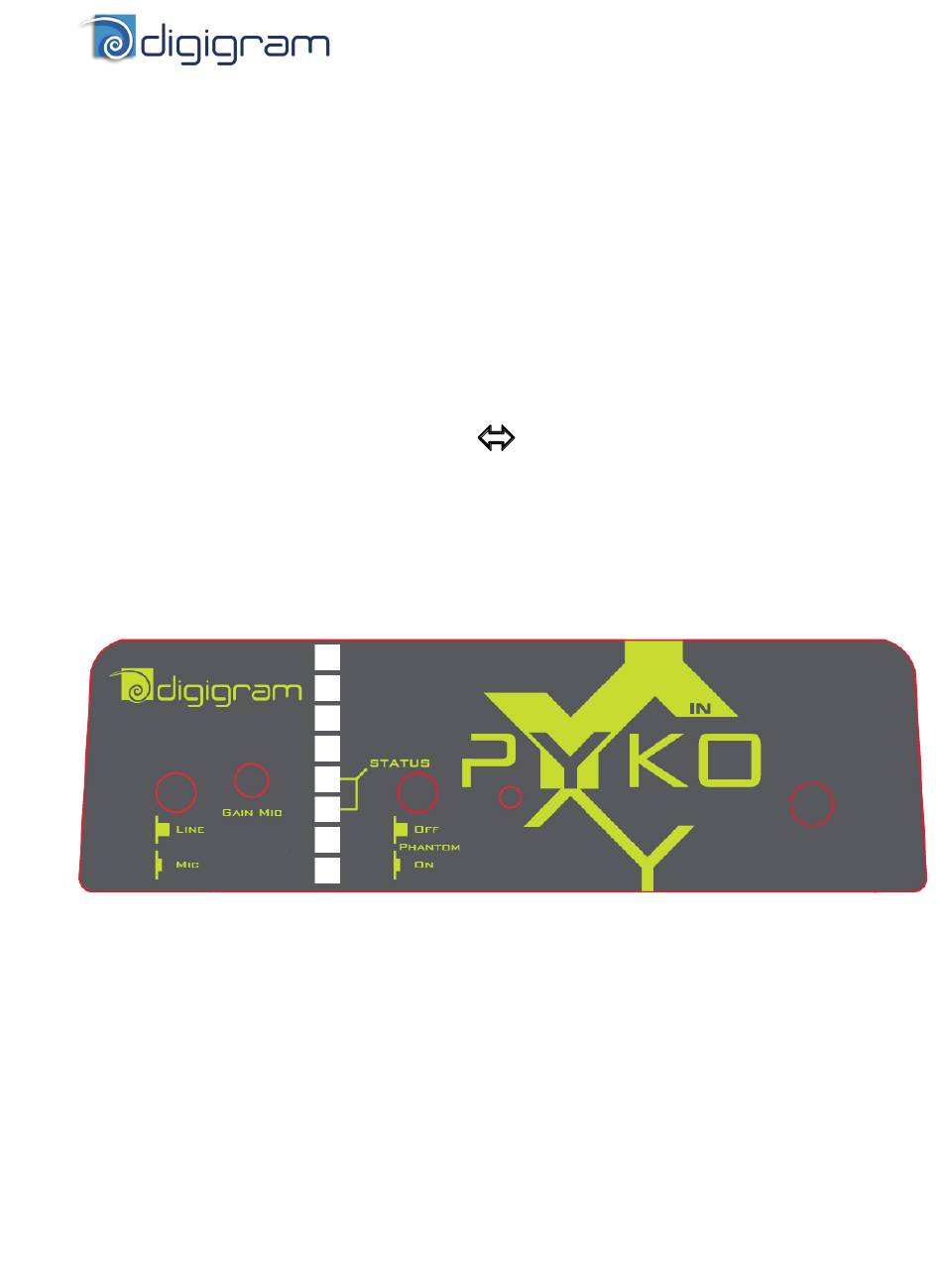

- Page 1 PYKO-in Professional IP Audio Endpoint User manual...
- Page 2 PYKO-in Professional IP Audio Endpoint Important Safety Information Throughout this manual, read carefully before using this equipment! the lightning bolt triangle is used to alert the user to the Follow these instructions and keep them in a safe place! Keep in mind that damages due to failure to risk of electric shock.
-
Page 3: Table Of Contents
CONTENTS OF THIS PACKAGE ......................................3 KEY FEATURES ..............................................4 The PYKO-in front panel............................................ 5 The PYKO-in back panel............................................ 6 INSTALLATION ..............................................7 Connecting your PYKO-in device ........................................7 Power supply..............................................7 Set-up ................................................7 Audio................................................7 Configuration................................................. 7 Firmware update..............................................7 MODES OF OPERATION ...........................................8 MANAGING PYKO-IN ..........................................9... -
Page 4: Information For The User
While every effort has been made to ensure accuracy, Digigram is not responsible for errors, omissions or typos and reserves the right to make improvements or changes in the products and programs described without notice. -
Page 5: Key Features
PYKO-in allows you to draw the most from an IP network in order to set up professional audio installations. Three different firmware applications make PYKO-in a flexible solution that can easily keep up as your system evolves. -
Page 6: The Pyko-In Front Panel
‘Stream Server’ mode, IP address 192.168.0.100, DHCP=OFF, and the UDP/TCP ports to the default values 40002 respectively 40004. 6. Headphones out (mini jack) At start-up, PYKO-in announces its IP address on this output. • With the ‘Full-duplex’ firmware application, it plays the audio in parallel of line output. -
Page 7: The Pyko-In Back Panel
The PYKO-in back panel RJ45 network connector RJ45 for a network connection in 10/100 Mbps half-/full-duplex. Serial port RS232 interface on DB9 (see Appendix F, Serial port). GPIO connectors These terminal blocks allow setup of external control and monitoring devices through configurable and protected General Purpose Inputs and Outputs (cf. -
Page 8: Installation
Set-up • Use an Ethernet cable to connect your PYKO-in to the network through its RJ45 port (labeled ‘ETH.’ on the back panel). To connect your PYKO-in directly to your computer, use a crossover cable. • Plug your headphones (front panel) •... -
Page 9: Modes Of Operation
To return to another mode of operation, please press the ‘Reset’ button > 5 sec in order to re-start PYKO-in factory configuration. Now you have again access to the embedded html pages were you can select the required firmware application and configure your PYKO-in. -
Page 10: Managing Pyko-In
Depending on your needs, there are several ways of configuring and controlling PYKO-in. Configuration PYKO-in embeds a web server that enables you to control the PYKO through your favorite Internet browser and to select the firmware application that best meets your needs. -
Page 11: Using Pyko-In With Audio Manager
“40004”. These are also the values defined in the factory configuration. Nonetheless, you may decide that Audio Manager is to control PYKO-in only in part. In this case, use the PYKO-in html pages to configure the device accordingly (cf. on-line help of the pages). -
Page 12: Audio Configuration
PYKO-in Professional IP Audio Endpoint Audio configuration With the ‘Stream Server’ firmware It is possible to transport an IP stream from a PYKO-in towards different destinations: • 6 in MP3 format • 4 in PCM format Just configure a destination IP address and a corresponding port for each destination. -
Page 13: With The Full-Duplex Firmware
Configure the IP stream to be received (Listening stream) and the IP stream to be sent (Server stream). PYKO-in is now configured for a full-duplex communication. In Audio Manager mode, the Audio Manager stream will automatically be set to level 2. -
Page 14: With The 'Play-Out' Firmware
With the ‘Play-out' firmware For the use of PYKO-in ‘Play-out’ mode, please refer to the PYKO-out manual and to the on-line help of the application firmware. Note, however, that with this firmware, the outputs of a PYKO-in are managed in mono mode. -
Page 15: Gpio
GPIO PYKO-in is delivered with four GPIs and four GPOs on terminal block connectors; the counterparts are provided. For details see Appendix D. The PYKO-in GPIs are compatible TTL 5 V. A GPI must maintain its state for at least 20 ms. -
Page 16: Specifications
PYKO-in Professional IP Audio Endpoint SPECIFICATIONS Configuration Size 140 mm x 41 mm x 145 mm (1/3 1U rack) Power supply {0><}100{>24 VDC, +/- 20%<0} WARNING Do not open the power supply module. It contains hazardous voltages. There are no user- serviceable parts inside. -
Page 17: Outputs
Outputs Stereo input Mode Full-duplex (‘Stream Server’) Analog line outputs 1 mono Maximum output +4 dBu/+18 dBu / <100 Ω level/impedance Frequency response 20 Hz – 20 kHz : 0/-2 dB THD + noise, 20 Hz – 20 kHz : <-84 dB 1 kHz at –-2 dBfs Signal to noise ratio 20 Hz –... -
Page 18: Appendix A: Firmware
PYKO-in Professional IP Audio Endpoint APPENDIX A: FIRMWARE Digigram provides two PYKO-in compatible applications in one and the same firmwre (compound.bin). ‘Stream Server’ and ‘Full-duplex’. Firmware description Firmware Stream server Full-duplex 1 stereo input 1 mono input and 1 mono output... -
Page 19: Appendix B: Input/Output Level Selection
APPENDIX B: INPUT/OUTPUT LEVEL SELECTION These settings shall be executed by qualified personnel only! Tools required: • a #1 Pozidriv screwdriver • an ESD-preventive wrist strap Electrostatic discharge (ESD) can damage several components on the board. To avoid such damage in handling the board, take the following precautions: Bring the device and everything that contacts it to ground potential by providing a conductive surface and discharge paths. -
Page 20: Nominal Output Level
PYKO-in Professional IP Audio Endpoint Nominal output level Jumper positioning This setting defines whether the nominal level of the analog signals is either +18 dBu or +4 dBu (Professional nominal level). Default factory setting is +18 dBu. The settings described above act upon the nominal output level. Having located the pair to modify in the overview picture, set the jumpers according to the above illustrations to match the requirements of your system. -
Page 21: Appendix C: Rtp Format
PCM ,16bit, MSB first, signed, 12 kHz mono Other formats Payload types 0, 8, 10, 11 and 14 are defined by the RTP standard. Digigram defines assignment for payload types 96 to 127 (dynamic payload types) in the above tables. -
Page 22: Appendix D: Audio Connectors
PYKO-in Professional IP Audio Endpoint APPENDIX D: AUDIO CONNECTORS The audio inputs/outputs of PYKO-in come on a terminal block connector with two lines of three pins each three points (= two counterparts). Pinout Stream Full-duplex server IN 1- / Mic... -
Page 23: Appendix E: Gpio Connectors
General Purpose Outputs (GPOs) The PYKO-in GPOs are relay outputs. They feature two pins each and are all configured the same way. Pins 9 & 10 belong to GPO # 1, 11 & 12 to GPO # 2, 13 & 14 to GPO # 3, and 15 & 16 to GPO #°4. -
Page 24: Appendix F: Serial Port (Rs232 On Db9)
PYKO-in provides an RS232 serial port on a male DB-9 connector on its back panel. This port can be used for remote control of PYKO-in through an external interface such as, e.g. Vity, AMX or Crestron, or for tunneling purposes. -
Page 25: Appendix G: Mounting Pyko In A Rack
APPENDIX G: MOUNTING PYKO IN A RACK You can mount up to three PYKOs in a 19” rack:... - Page 26 PYKO-in Professional IP Audio Endpoint Insert the DIN-RAIL mount kit into the sliders on PYKO’s bottom side. First mounting possibility: Second mounting possibility:...
- Page 28 Digigram S.A. 82/84 Allée Galilée, 38330 Montbonnot-Saint-Martin, FRANCE Tel: +33 (0)4 76 52 47 47• Fax: +33 (0) 4 76 52 18 44• E-mail: info@digigram.com Digigram Inc. 2000 North 14th Street - Suite 530, Arlington, VA 22201, USA Tel: +1 703 875 9100 •...
