10. APPENDIX C: OUTPUT LEVEL SELECTION
These settings shall be executed by qualified personnel only!
Tools required:
● a #1 Pozidriv
● an ESD-preventive wrist
Electrostatic discharge (ESD) can damage several components on the board.
To avoid such damage in handling the board, take the following precautions:
Bring the device and everything that contacts it to ground potential by
providing a conductive surface and discharge paths. As a minimum, observe
these precautions:
● Disconnect all power and signal sources.
● Place the device on a grounded conductive work surface.
● Ground yourself via a grounding wrist strap or by holding a grounded object.
● Ground any tools that will contact the device.
● Unscrew the two flat-head Pozidriv screws
cabinet.

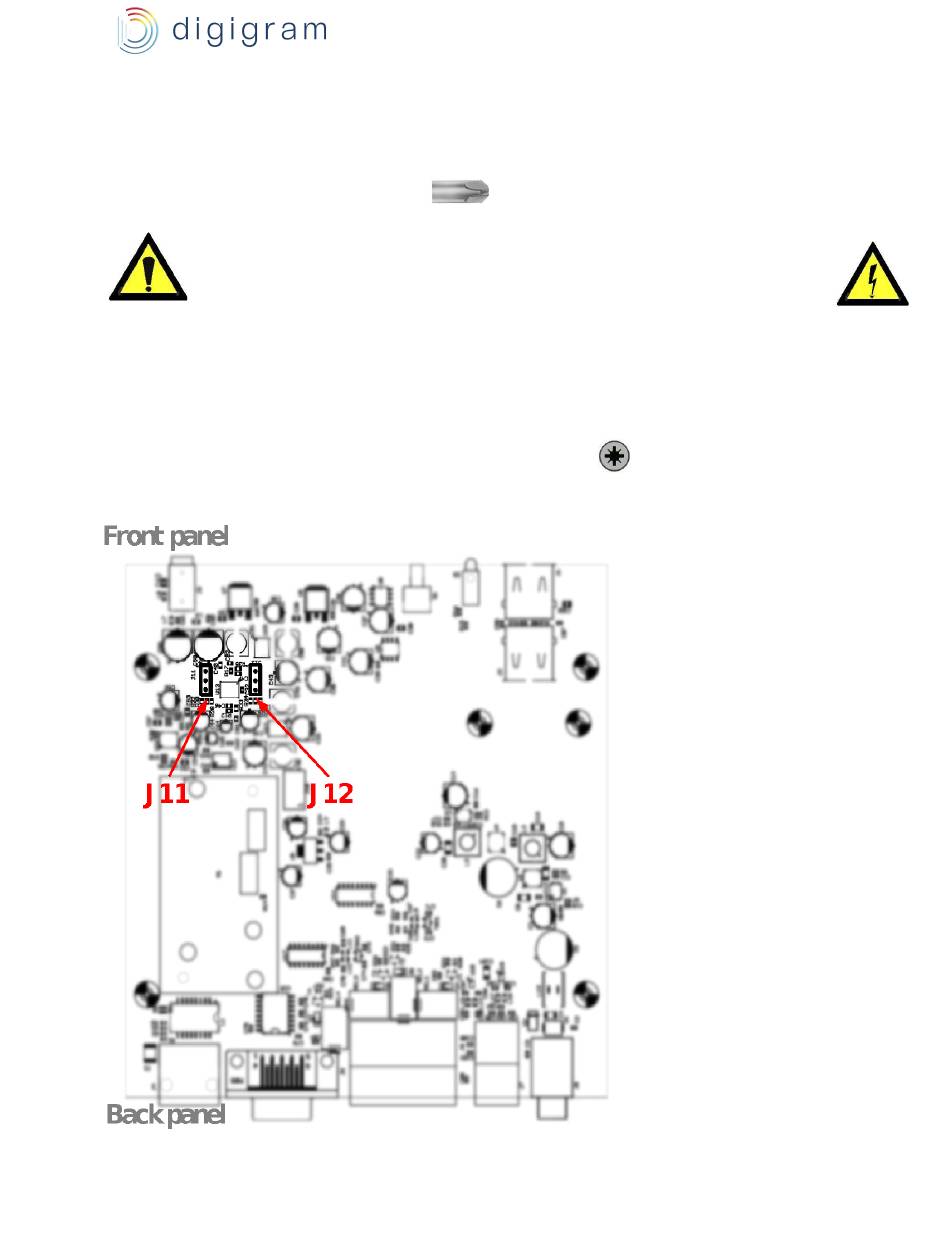

Jumper position on motherboard
PYKO-out: Professional IP audio endpoint
screwdriver
strap
counterclockwise and open the
