Click on "Apply" to take the settings into account, or "Cancel" to discard them.

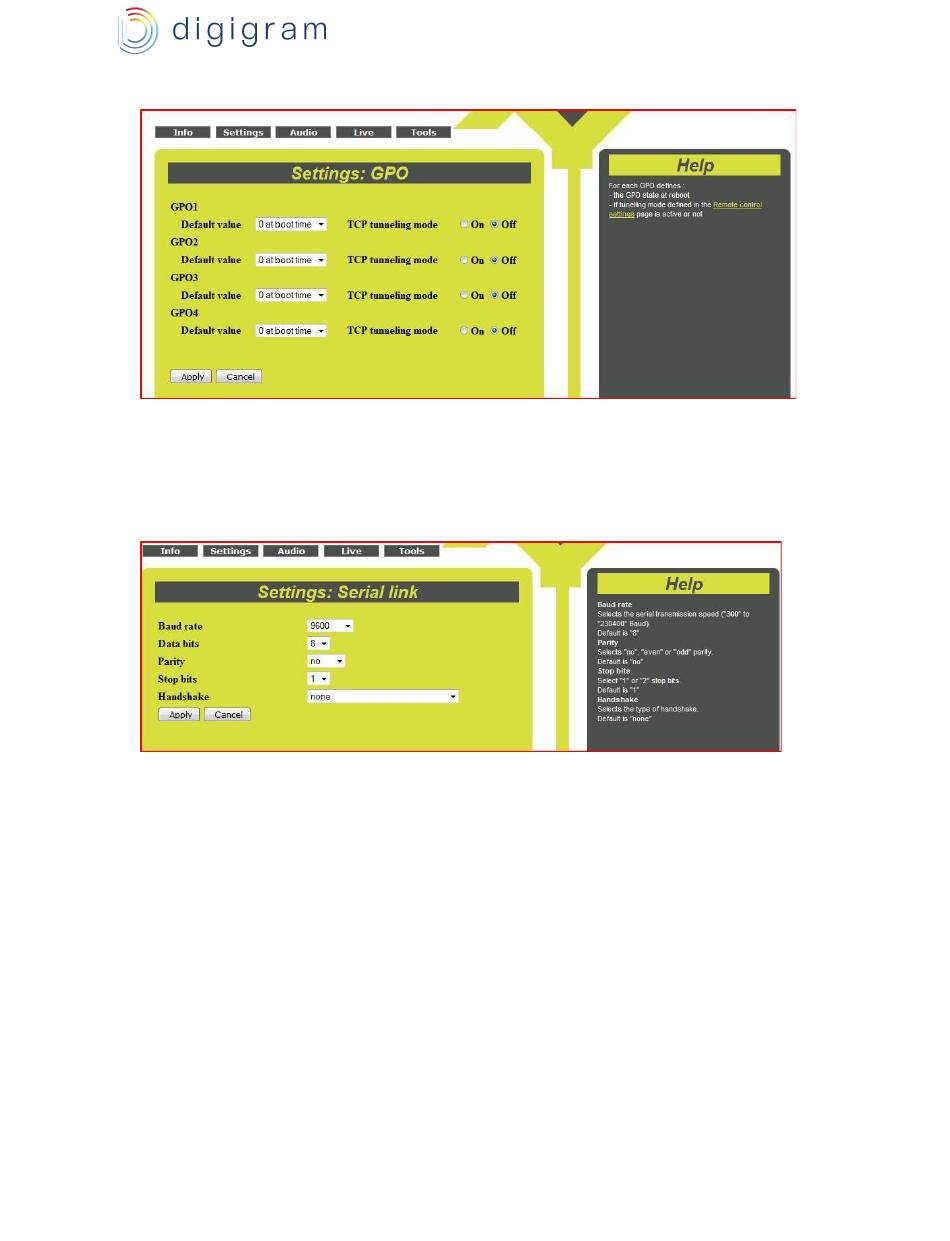

6.6. Serial port configuration

Parameters of the serial port can be configured from the « S ettings » menu, « S erial » .

PYKO serial port can be used either to transmit RS232 data to the serial port of distant PYKOs, or

to locally send real time commands to a PYKO.

If the serial port is used, it is necessary to configure its parameters :

- B aud rate : bit rate (from 300 to 230 400 bits/s)

- D ata bits : number of bits for data (8 or 7 bits)

- P arity : parity bit (no bit, 'even' parity bit, or 'odd' parity bit).

- S top bits : number of stop bits (1 or 2)

- H andshake : serial transmission mode (no protocol, XON/XOFF protocol , RTS/CTS).

RS232 tunneling mode can be configured via the remote control parameters defined here-after.

To setup these parameters, go to menu « S ettings » , « R emote Control » .

Remote control of PYKO through TCP commands
