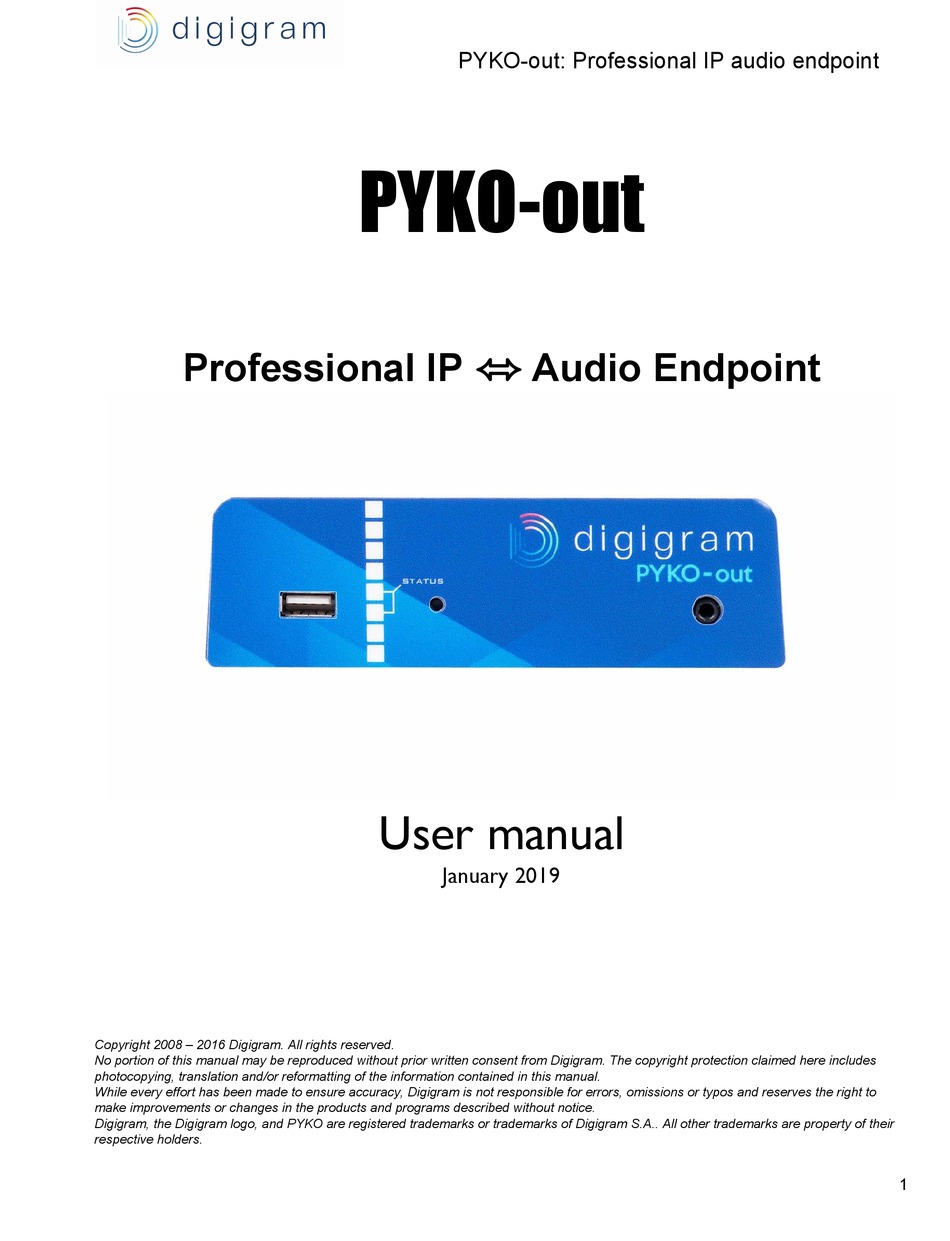

Professional IP ⬄ Audio Endpoint





Copyright 2008 – 2016 Digigram. All rights reserved.
No portion of this manual may be reproduced without prior written consent from Digigram. The copyright protection claimed here includes
photocopying, translation and/or reformatting of the information contained in this manual.
While every effort has been made to ensure accuracy, Digigram is not responsible for errors, omissions or typos and reserves the right to
make improvements or changes in the products and programs described without notice.
Digigram, the Digigram logo, and PYKO are registered trademarks or trademarks of Digigram S.A.. All other trademarks are property of their
respective holders.


PYKO-out: Professional IP audio endpoint


PYKO-out
User manual
January 2019


1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PYKO-out and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digigram PYKO-out

Summary of Contents for Digigram PYKO-out

  • Page 1 While every effort has been made to ensure accuracy, Digigram is not responsible for errors, omissions or typos and reserves the right to make improvements or changes in the products and programs described without notice.
  • Page 2 PYKO-out: Professional IP audio endpoint   Important Safety Information  Throughout this manual, the lightning read carefully before using this equipment!  bolt triangle is used to alert the user to the risk Follow these instructions and keep them in a safe place! Keep in mind that damages due to failure to of electric shock.

  • Page 3: Table Of Contents

    PYKO-out: Professional IP audio endpoint TABLE OF CONTENTS 1. OVERVIEW 2. KEY FEATURES 3. PYKO- OUT PHYSICAL INTERFACES 3.1. PYKO- OUT FRONT PANEL 3.2. PYKO- OUT BACK PANEL 4. INSTALLATION 5. MANAGING PYKO-OUT 6. CONFIGURATION 6.1. C PYKO- ONNECTING TO PAGES 6.2.
  • Page 4 PYKO-out: Professional IP audio endpoint INFORMATION FOR THE USER  This equipment has been tested and found to comply with the limits for a CLASS B digital device, pursuant to Part 15 of the FCC Rules and with the following European and international Standards for: In order to guarantee compliance with the above standards in an installation, the following must be done: ·...

  • Page 5: Overview

    ● Adaptor for mounting the PYKO-in in a 19” rack    You have just acquired a Digigram IP ​ ⬄ ​ audio endpoint and we congratulate  you!   PYKO-out allows you to draw the most from an IP network in order to set up professional audio      ...

  • Page 6: Pyko-Out Physical Interfaces

    3. Reset button Press this button briefly to reset your PYKO. If you press it until the LED blinks (approximately 10 seconds), PYKO-out is reset to factory configuration, i.e. to ‘Stream Server’ mode with IP address 192.168.0.100., DHCP=OFF, and the UDP/TCP ports to the default UDP and TCP port values (respectively 40002 and 40004).

  • Page 7: Pyko-Out Back Panel

    PYKO-out: Professional IP audio endpoint 3.2. PYKO-out back panel  RJ45 network connector ● RJ45 for a network connection in 10/100 Mbps half-/full-duplex. Serial port ● RS232 interface on DB9 (see Appendix G, management of RS232 port). GPIO connectors ● These terminal blocks allow: - controlling PYKO from an external device See the chapter dedicated to the GPIOs for more details (cf.

  • Page 8: Installation

    Do not allow anything to rest on the power cable. Keep the power cable away from where people could trip over it. Set-up  ● Use an Ethernet cable to connect your PYKO-out to the network through its RJ45 port (labeled ‘ETH.’ on the back panel). To connect your PYKO-out directly to your computer, use a crossover cable.

  • Page 9: Managing Pyko-Out

    PYKO-out: Professional IP audio endpoint 5. MANAGING PYKO-OUT  Depending on your needs, there are several ways of configuring and controlling PYKO-out.      ...

  • Page 10: Configuration

    6. CONFIGURATION  6.1. Connecting to PYKO-out WEB pages PYKO-out embeds a web server that enables you to control the PYKO through your favorite Internet browser. ● Put your headphones on. At start-up, PYKO will announce its IP address over the headphones output –...

  • Page 11: Global Parameters

    PYKO-out: Professional IP audio endpoint ● DHCP hostname: name of the ● Ethernet link: allows to set the speed and mode of the network interface ( auto-negotiation, half/full duplex, 10/100 Mbits/s), ● IP address of an SNMP supervisor receiving the SNMP traps ●...

  • Page 12: Gpis Configuration

    PYKO-out: Professional IP audio endpoint Click on “Apply” to take the settings into account, or “Cancel” to discard them.   6.4. GPIs configuration Go to menu « ​ S ettings​ », « ​ G PI​ » , to assign an action to a GPI.

  • Page 13: Serial Port Configuration

    PYKO-out: Professional IP audio endpoint Click on “Apply” to take the settings into account, or “Cancel” to discard them.   6.6. Serial port configuration Parameters of the serial port can be configured from the « ​ S ettings​ » menu, « ​ S erial​ » .

  • Page 14: Tunneling Of Auxiliary Data

    «​ S erial link mode ​ » . - ​ G ateway TCP server​ : in this mode, PYKO-out receives the serial data sent from another PYKO on the port defined in « ​ C onnection port ​ » .
  • Page 15 To enable the UDP mode, select « ​ G ateway UDP​ » for parameter «​ S erial link mode ​ » . PYKO-out listens to the serial data it receives on the UDP port defined in « ​ C onnection port ​ » .

  • Page 16: Configuration Of Decoding Priority Levels

    ○ M3u playlists with mp3 sound files, stored on the USB memory stick. PYKO-out can decode these sources according to 3 priority levels (priority1 being the highest priority, and priority 3 being the lowest). At any time, PYKO-out decode the highest priority which source is present. This allows the following : - getting automatic backup in case a source is lost (typically an IP stream).
  • Page 17 8 kHz to 48 kHz, G711 A-law or µlaw). In case the configured format does not match the received audio format, PYKO-out interprets this as an error and does not decode the stream. As a consequence, PYKO-out switches to the immediately lower priority (Stream priority level “n+1”).
  • Page 18 DNS from the Settings page). - ​ T ime out​ : This is the time granted to PYKO-out to catch the HTTP stream. If this time is exceeded, the http stream is considered as absent, and PYKO switches to priority 3 if it is defined.

  • Page 19: Real Time Control (Live) Via Web Page

    PYKO-out: Professional IP audio endpoint Priority level 3 : Stream priority #3  This priority level has the same parameters as priority level 2, with exception of the number of streams. Backup playlist must be stored in folder /bk of the USB memory stick.

  • Page 20: Display Of Pyko-Out Status

    \an 6.13. Firmware update PYKO-out is delivered with a “Playout” firmware ready to run. This firmware does not support the USB memory stick, and is to be used with Digigram AudioManager middleware. For all applications that require the USB memory stick, it is necessary to apply the “Playout-extended”...
  • Page 21 Firmware are available from Digigram WEB site. Firmware update procedure is as follows. ● Go to ​ < Tools>​ , ​ < Update>​ . ● Click on « Browse » to select the firmware file you have downloaded from Digigram WEB site. ● Click on ‘​ U pload’​ .

  • Page 22: Using Pyko-Out With Audio Manager

    “40004”. These are also the values defined in the factory configuration. You may decide that Audio Manager is to control PYKO-out only in part. In this case, use the PYKO-out html pages to configure the device accordingly (cf. on-line help of the pages).

  • Page 23: Using Pyko-Out With Ethersound

    In EtherSound mode, the control of PYKO-out is done through EScontrol. Access to the web pages is no longer possible. To switch back to IP mode, PYKO-out needs to be reset (press the ‘​ R eset​ ’ button for at least five seconds). PYKO-out will re-boot with the default factory settings.
  • Page 24 Audio Manager or by another application, but it cannot be received directly by another PYKO-out. ● TCP connection is required by Audio Manager (PYKO-out is used as server). To establish the connection, the listening port has to be configured by html page.
  • Page 25 Note: If for some reason the decoding parameter should not correspond to the one of the audio stream received, PYKO-out will interpret that as an error and will not play the stream. PYKO-out will then switch to the audio stream of minor priority (Stream priority level n-1).

  • Page 26: Specifications

    PYKO-out: Professional IP audio endpoint 7. SPECIFICATIONS  Configuration  Size 140 mm x 41 mm x 145 mm (1/3 1U rack) Power supply 24 VDC, +/- 20% WARNING ​ Do not open the power supply module. It contains hazardous voltages. There are no user-serviceable parts inside.
  • Page 27 PYKO-out: Professional IP audio endpoint Analog audio performance  Measurements done at Fs=48 kHz unless stated otherwise, with filter on the 22 Hz- 22 kHz range at 48 kHz: 20 Hz - 20 kHz: +0 /-2 dB Frequency response (play) Channel phase difference: 20/20kHz <0.2°/2°...

  • Page 28: Appendix A: Firmware

    PYKO-out: Professional IP audio endpoint 8. APPENDIX A: FIRMWARE  Digigram provides three PYKO-out compatible firmware applications (compound.bin). Firmware description  The ​ P lay-out​ firmware is used for AudioManager based applications, and does not support the USB memory stick. The ‘​ P lay-out extended​ ’ firmware is used for applications where a USB memory stick is necessary (typically broadcast applications, application for remote control of playlist on USB)..

  • Page 29: Appendix B: Using The Internal Usb Port

    PYKO-out: Professional IP audio endpoint 9. APPENDIX B: USING THE INTERNAL USB PORT  These settings shall be executed by qualified personnel only! Tools required: ● a #1 Pozidriv screwdriver ● an ESD-preventive wrist strap Electrostatic discharge (ESD) can damage several components on board.

  • Page 30: Appendix C: Output Level Selection

    PYKO-out: Professional IP audio endpoint 10. APPENDIX C: OUTPUT LEVEL SELECTION  These settings shall be executed by qualified personnel only! Tools required: ● a #1 Pozidriv screwdriver ● an ESD-preventive wrist strap Electrostatic discharge (ESD) can damage several components on the board.
  • Page 31 PYKO-out: Professional IP audio endpoint Nominal output level  Jumper positionning This setting defines whether the nominal level of the analog signals is either +18 dBu or +4 dBu (“Professional”). Default factory setting is +18 dBu for all outputs. The settings act upon the nominal output level. Having located the pair to modify in the overview (​...

  • Page 32: Appendix D: Rtp Format

    Payload types 0, 8, 10, 11 and 14 are defined by the RTP standard. Digigram defines assignment for payload types 96 to 127 (dynamic payload types) in the above tables. * For a PCM 24 bits stream coming from a PYKO-in, and from firmware version v020, payload is 113 instead of 127.

  • Page 33: Appendix E: Audio Connectors

    PYKO-out: Professional IP audio endpoint 12. APPENDIX E: AUDIO CONNECTORS The audio inputs/outputs of PYKO-out come on a terminal block connector with two lines of three pins each (= two counterparts).   Pinout  Pin  Signal  OUT 1- OUT 1+ OUT 2-...

  • Page 34: Annexe F: Gpio Connectors

    General Purpose Outputs (GPOs)  The PYKO-out GPOs are relay outputs. They feature two pins each and are all configured the same way. Pins 9 & 10 belong to GPO # 1, 11 & 12 to GPO # 2, 13 & 14 to GPO # 3, and 15 & 16 to GPO #°4.

  • Page 35: Appendix G: Serial Port (Rs232 On Db9)

    CTS (clear to send) not connected PYKO-out provides an RS232 serial port on a male DB-9 connector on its back panel. This port can be used for remote control of PYKO-out through an external interface such as e.g. Vity, AMX or Crestron, or for tunneling purposes.

  • Page 36: Appendix H: Mounting Pyko

    PYKO-out: Professional IP audio endpoint 15. APPENDIX H: MOUNTING PYKO…  …in a rack  You can mount up to three PYKOs in a 19” rack:...
  • Page 37 PYKO-out: Professional IP audio endpoint …on a DIN rail:  Insert the DIN-RAIL mount kit into the sliders on PYKO’s bottom side. First mounting possibility: Second mounting possibility:...
  • Page 38 PYKO-out: Professional IP audio endpoint...
  • Page 39 Digigram S.A.  82/84 Allée Galilée, 38330 Montbonnot-Saint-Martin, FRANCE  Tel: +33 (0)4 76 52 47 47• Fax: +33 (0) 4 76 52 18 44• E-mail: info@digigram.com  Digigram Inc.  2000 North 14th Street - Suite 530, Arlington, VA 22201, USA ...
