1
SCL
SDA 0 1
START BY
MASTER
1
SCL
0
SDA
START BY
MASTER
It is possible to read a data byte from a data register without
first writing to the address pointer register, if the address
pointer register is already at the correct value. However, it is
not possible to write data to a register without writing to the
address pointer register, because the first data byte of a write
is always written to the address pointer register.
In addition to supporting the send byte and receive byte pro-
tocols, the ADT7475 also supports the read byte protocol.
(See System Management Bus Specifications Rev. 2 for more
information; this document is available from Intel.)
If several read or write operations must be performed in
succession, the master can send a repeat start condition
instead of a stop condition to begin a new operation.

WRITE OPERATIONS

The SMBus specification defines several protocols for differ-
ent types of read and write operations. The ones used in the
ADT7475 are discussed below. The following abbreviations
are used in the diagrams:
S—START
P—STOP
R—READ
W—WRITE
A—ACKNOWLEDGE
A —NO ACKNOWLEDGE
The ADT7475 uses the following SMBus write protocols.
Send Byte
In this operation, the master device sends a single command
byte to a slave device, as follows:
1. The master device asserts a start condition on SDA.
2. The master sends the 7-bit slave address followed by
the write bit (low).
3. The addressed slave device asserts ACK on SDA.
0 1 1 1 0
FRAME 1
SERIAL BUS ADDRESS BYTE

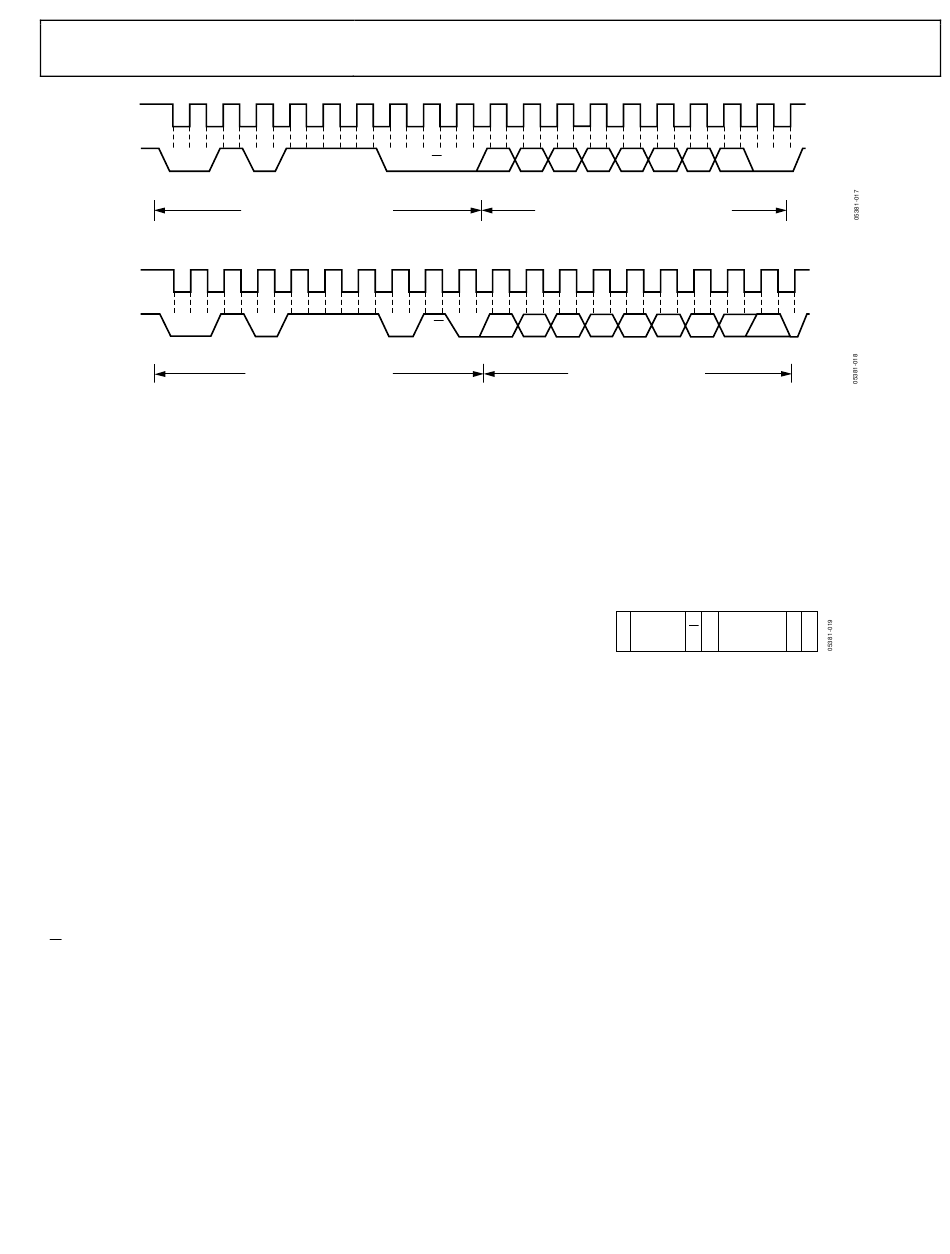

Figure 15. Writing to the Address Pointer Register Only
1 0 1 1 1 0
FRAME 1
SERIAL BUS ADDRESS BYTE
Figure 16. Reading Data from a Previously Selected Register
9 1
D7 D6 D5 D4
R/W
ACK. BY
ADT7475
ADDRESS POINTER REGISTER BYTE
9 1
D7 D6 D5 D4
R/W
ACK. BY
ADT7475
DATA BYTE FROM ADT745
4. The master sends a command code.
5. The slave asserts ACK on SDA.
6. The master asserts a stop condition on SDA and the
transaction ends.
For the ADT7475, the send byte protocol is used to write a
register address to RAM for a subsequent single byte read from
the same address. This operation is illustrated in Figure 17.
Figure 17. Setting a Register Address for Subsequent Read
If the master is required to read data from the register immedi-
ately after setting up the address, it can assert a repeat start
condition immediately after the final ACK and carry out a
single byte read without asserting an intermediate stop
condition.
Write Byte
In this operation, the master device sends a command byte and
one data byte to the slave device, as follows:
1. The master device asserts a start condition on SDA.
2. The master sends the 7-bit slave address followed by the
write bit (low).
3. The addressed slave device asserts ACK on SDA.
4. The master sends a command code.
5. The slave asserts ACK on SDA.
6. The master sends a data byte.
7. The slave asserts ACK on SDA.
8. The master asserts a stop condition on SDA, and the
transaction ends.
Rev. 0 | Page 11 of 64
9
D3 D2 D1
D0
ACK. BY
ADT7475
FRAME 2
9
D3 D2 D1
D0
NO ACK. BY
MASTER
FRAME 2
1 2 3 4 5
SLAVE REGISTER
S W A A
ADDRESS ADDRESS
ADT7475
STOP BY
MASTER
STOP BY
MASTER
6
P
