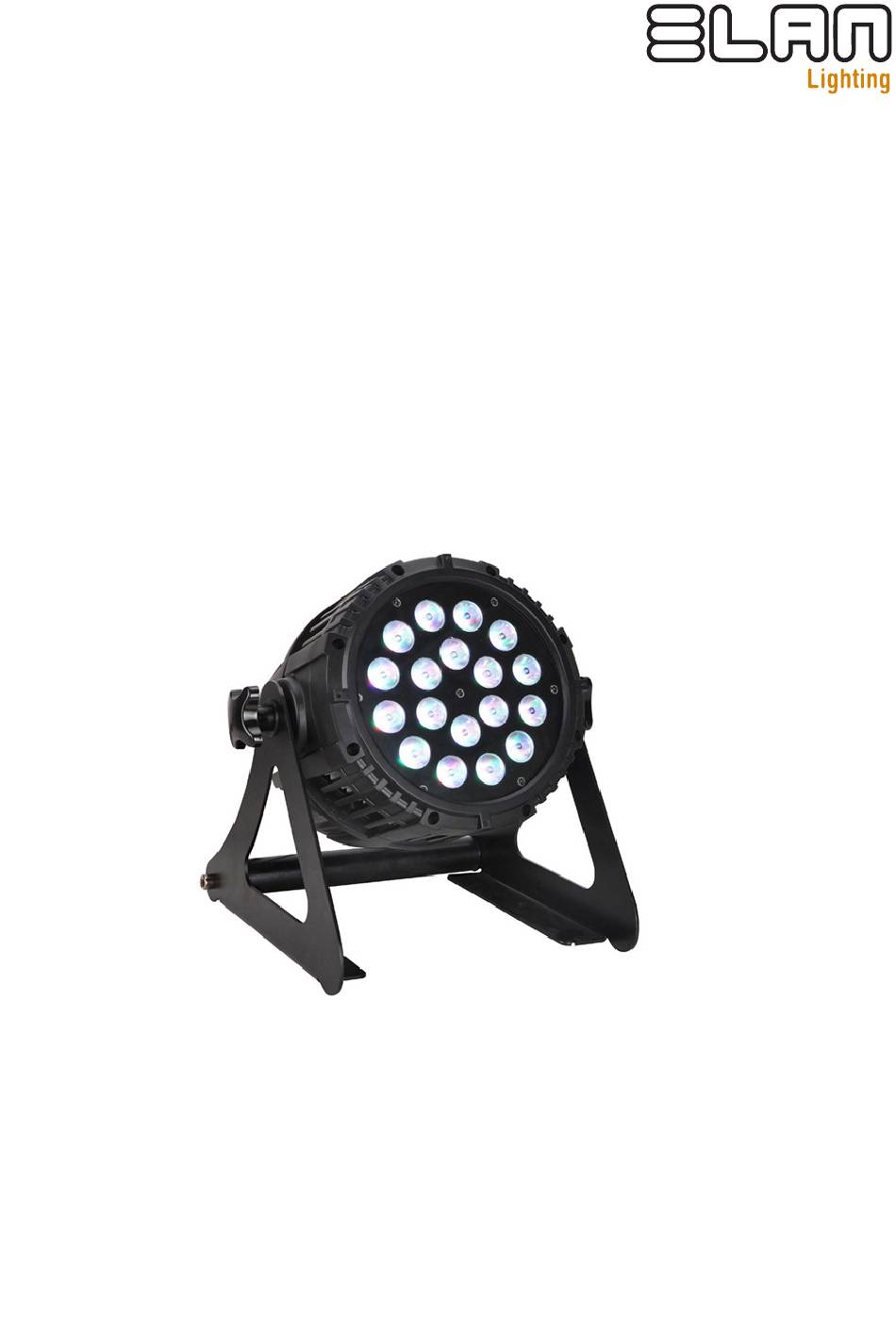

PSD-218
USER'S MANUAL
Thank you for purchasing the PSD-218. Every suit has been thoroughly tested and shipped in
perfect condition. Carefully check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be
sure all accessories necessary to operate the unit has arrived intactly. In the case damage has
been found or parts are missing, please contact Acson Comercial or your local supplier for further
instructions. Do not return this unit without any warning.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting PSD-218
Summary of Contents for ELAN Lighting PSD-218
- Page 1 PSD-218 USER’S MANUAL Thank you for purchasing the PSD-218. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
- Page 2 Contents 1. Introduction ....................... 3 2. General Instructions ..................3 3. Safety Precautions .................... 3 4. Set Up ......................... 4 5. Operating Instructions ..................4 DMX Mode ....................5 Touch Buttons ....................5 LED Operation Menu ..................5 LED Display ....................5 6.
- Page 3 1. Introduction Warning! To prevent or reduce the risk of electrical shock or fire, Do not expose this to rain or moisture. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufacturer warranty. In the unli- kely event your unit may require service please contact the manufacturer or your dealer.
- Page 4 Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) be- tween this device and a wall. Do not attempt to operate this unit, if it becomes damaged. This unit is intended for indoor use only; use of this product outdoors voids all warranties. During long periods of non-use, disconnect the units main power.
- Page 5 DMX Mode Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. This function also allows you to use your units as spot lights. 1. This function will allow you to control each individual unit’s traits with a standard DMX 512 controller. 2.
- Page 6 6. DMX Setup Addr Operation Setup Mode P 1Ch: Dimmer Poo1 Mode A 2Ch: Amber or Warm White, White A001 3Ch: Dimmer, Amber or warm white, Mode F Foo1 White 4 Ch: Dimmer, Strobe, Amber or warm Mode D Doo1 white, White 5 Ch: Dimmer, Strobe, Amber or warm Mode H...
- Page 7 Mode D Channel Function Value Dimmer 0-255 Strobe 0-255 Amber or warm white 0-255 Cool white 0-255 Mode H Channel Function Value Dimmer 0-255 Strobe 0-255 Amber or warm white 0-255 Cool white 0-255 Color temperature 0-255 7. Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output.
- Page 8 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
