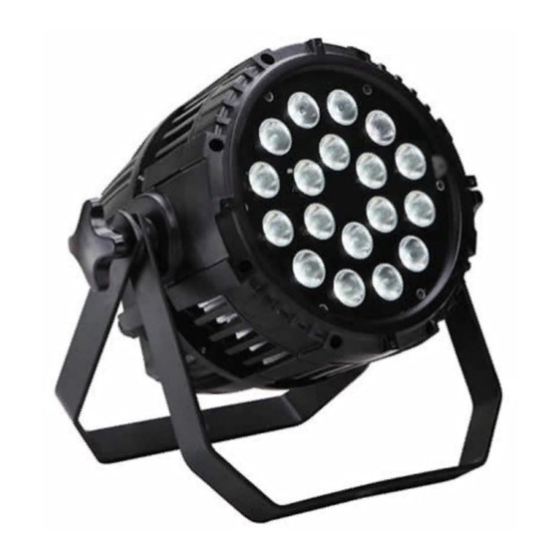

PSD 518
USER'S MANUAL
Thank you for purchasing PSD 518. Every suit has been thoroughly tested and shipped in
perfect condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your unit for any
damage and be sure all accessories necessary to operate the unit has arrived intactly. In
the case damage has been found or parts are missing, please contact the manufacturer
or your dealer for further instructions. Do not return this unit to your dealer without any
warning.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting PSD 518
Summary of Contents for ELAN Lighting PSD 518

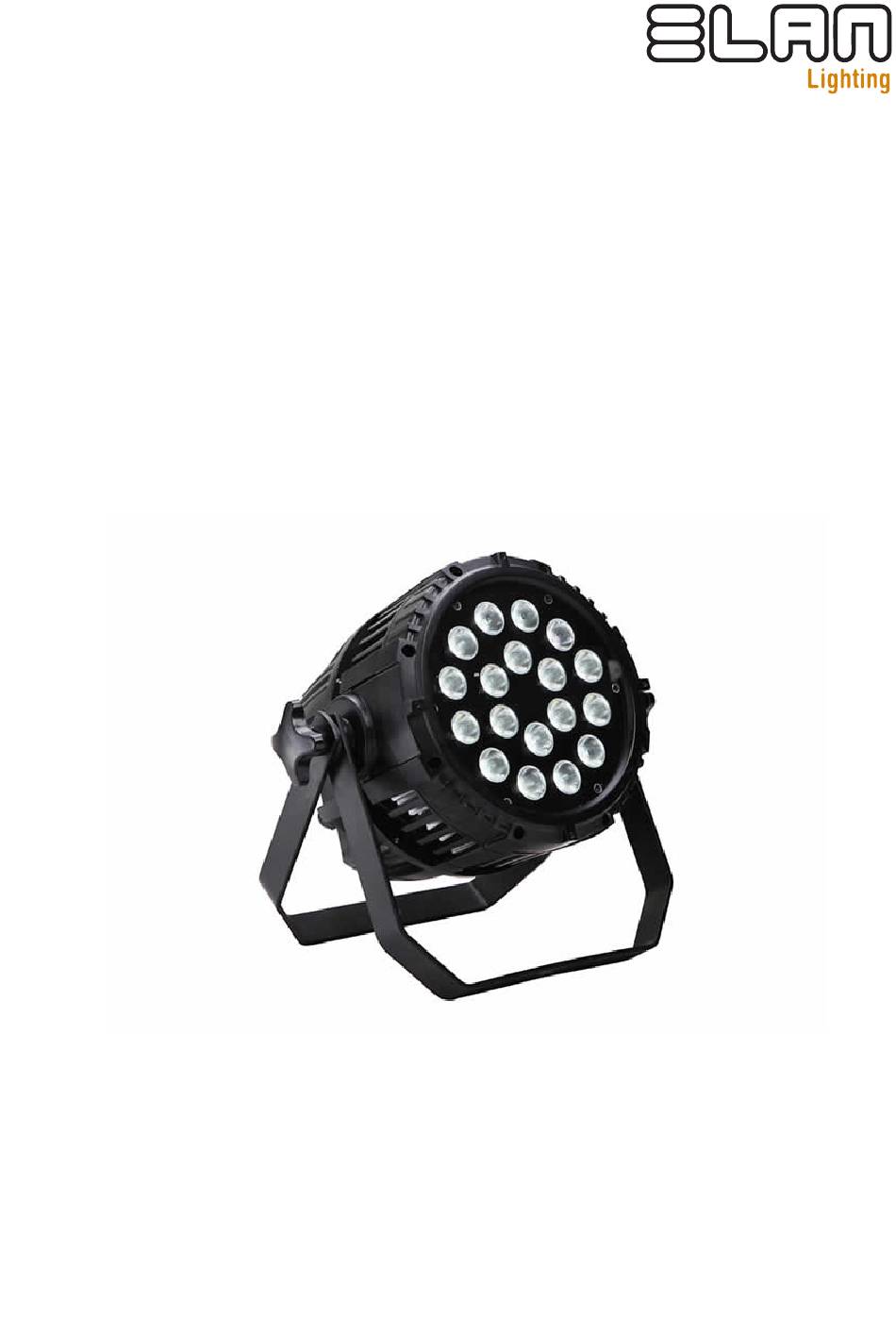

- Page 1 PSD 518 USER’S MANUAL Thank you for purchasing PSD 518. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
- Page 2 Index 1. Safety ................3 2. Set Up ................. 4 3. Operating Instructions ..........4 4. Cleaning ..............6 5. Troubleshooting ............7 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING. SAVE IT FOR FUTURE REFERENCE...
- Page 3 1. Safety Warning! To prevent or reduce the risk of PLEASE consider that damages caused electrical shock or fire, do not expose this by manual modifications to the device unit to rain or moisture. are not subject to warranty. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures warranty.
- Page 4 2. Set Up Features • Multi-Colors • Electronic Dimming 0-100% • Master/Slave synchronization • DMX-512 protocol • Color Strobe • Daisy Chain Units Together in DMX Mode • LED operation menu with function buttons Power Supply Before plugging your unit in, be sure the source voltage in your area matches the voltage required for your every suit.
- Page 5 Led Display After power on and initialization, it will show the status before last power off. Then, the unit is ready for setting and working. Please see the following table for setting information. Main Menu Value Functions d001 001-511 To set the DMX address code CF01 01-99 Fade in &...
- Page 6 0-255 Dimmer Dimmer (all off to all on) 0-255 No function Strobe Strobe (slow to fast 2-255 0-32 R+G (R same, G bri- 33-65 ghter) Co R+G (G same, R 66-96 less bright) G+B (G same, B bri- 97-129 ghter) G+B (B same, G less 130-160 Marco...
- Page 7 5. Troubleshooting Listed below are a few common problems the user may encounter, with solutions. Unit not responding to DMX: Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other DMX devices pin 5 may be “hot”). Also, check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected.
- Page 8 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances con- tain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. PLEASE Note: All information is subject to change without notice.
