ELAN Lighting CABLED-150-BEAM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

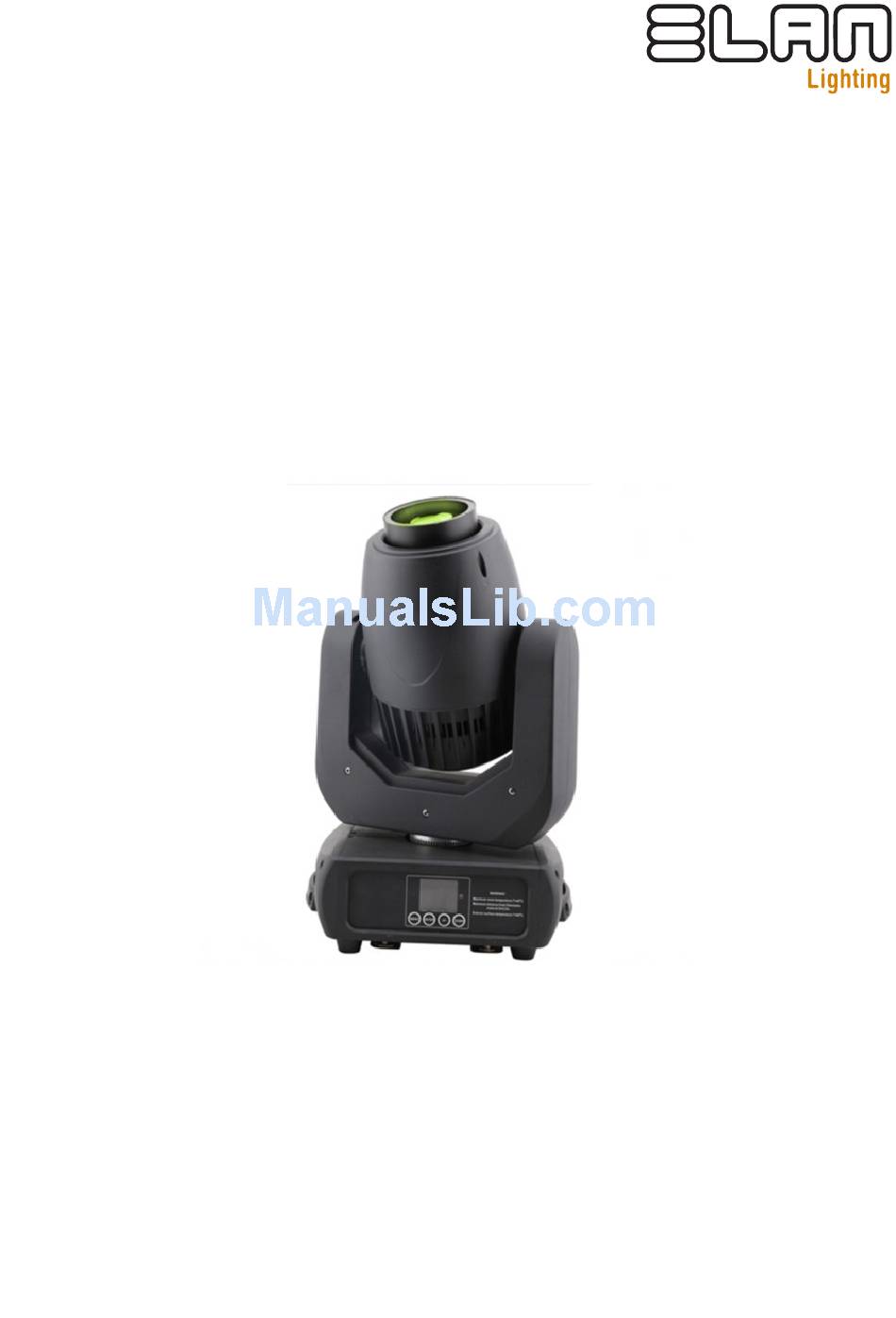

CABLED-150-BEAM
USER'S MANUAL
Thank you for purchasing a product from our CABLED-150-BEAM Every suit has been
thoroughly tested and shipped in perfect condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing,
please contact Acson Comercial or your local supplier for further instructions. Do not return
this unit without any warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CABLED-150-BEAM and is the answer not in the manual?

Questions and answers

Related Manuals for ELAN Lighting CABLED-150-BEAM

Summary of Contents for ELAN Lighting CABLED-150-BEAM

  • Page 1 CABLED-150-BEAM USER’S MANUAL Thank you for purchasing a product from our CABLED-150-BEAM Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions ....................3 2. Unpacking ......................3 3. Features & Specifications ................... 4 4. Photometric Data ....................5 5. Operation Instructions ..................5 6. Installation ......................6 7. DMX-512 Control Connections ................7 8. Menu Operations ....................7 9.

  • Page 3: Safety Instructions

    1. Safety Instructions Caution! Be careful when operating this fixture. Dangerous voltage can cause serious electric shock. This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual.

  • Page 4: Features & Specifications

    2.1 Included in the box: Moving Head Signal Cable Power Clamp Omega Clamp User Manual 3. Features & Specifications 3.1 Features • 150W High Output White LED • Prism: 8-facet Prism, bi-directionally rotatable at variable speeds • 50,000 hours lifespan and low power consump- tion •...

  • Page 5: Photometric Data

    4. Photometric Data 5. Operation Instructions • The moving head is for beam effect for on-site ty condition before installing the fixture. decoration purpose. • Make sure to put the safety chain and check • Don’t turn on the fixture if it’s been through whether the screws are screwed properly when severe temperature difference like after trans- installing the fixture.

  • Page 6: Installation

    6. Installation Caution! For added protection mount the fixtures in areas outside walking paths, seating areas, or in areas were the fixture might be reached by unauthorized personnel. • Before mounting the fixture to any surface, make sure that the installation area can hold a minimum point load of 10 items the device’s weight.

  • Page 7: Dmx-512 Control Connections

    7. DMX-512 Control Connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple moving head together through serial linking.

  • Page 8: Dmx Channels

    Ver V1 System DMX Address Information Temperature 9. DMX Channels CH10 CH12 14CH 16CH Function Channel Value Description 0-255 0-540° Pan fine 0-255 Pan Fine Tilt 0-255 0-270° Tilt Fine 0-255 Tilt Fine X, Y speed 0-255 From fast to slow LED Dimmer 0-255 From dark to bright...
  • Page 9 CH10 CH12 14CH 16CH Function Channel Value Description Gobo 5 shake speed from slow to 85-91 fast Gobo 4 shake speed from slow to 92-98 fast Gobo 3 shake speed from slow to 99-105 fast 8 Static Gobos Gobo 2 shake speed from slow to 106-112 +White fast...

  • Page 10: Maintenance And Cleaning

    10. Maintenance And Cleaning 10.1 Maintenance The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (cei- ling, suspension, trussing).
  • Page 11 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
