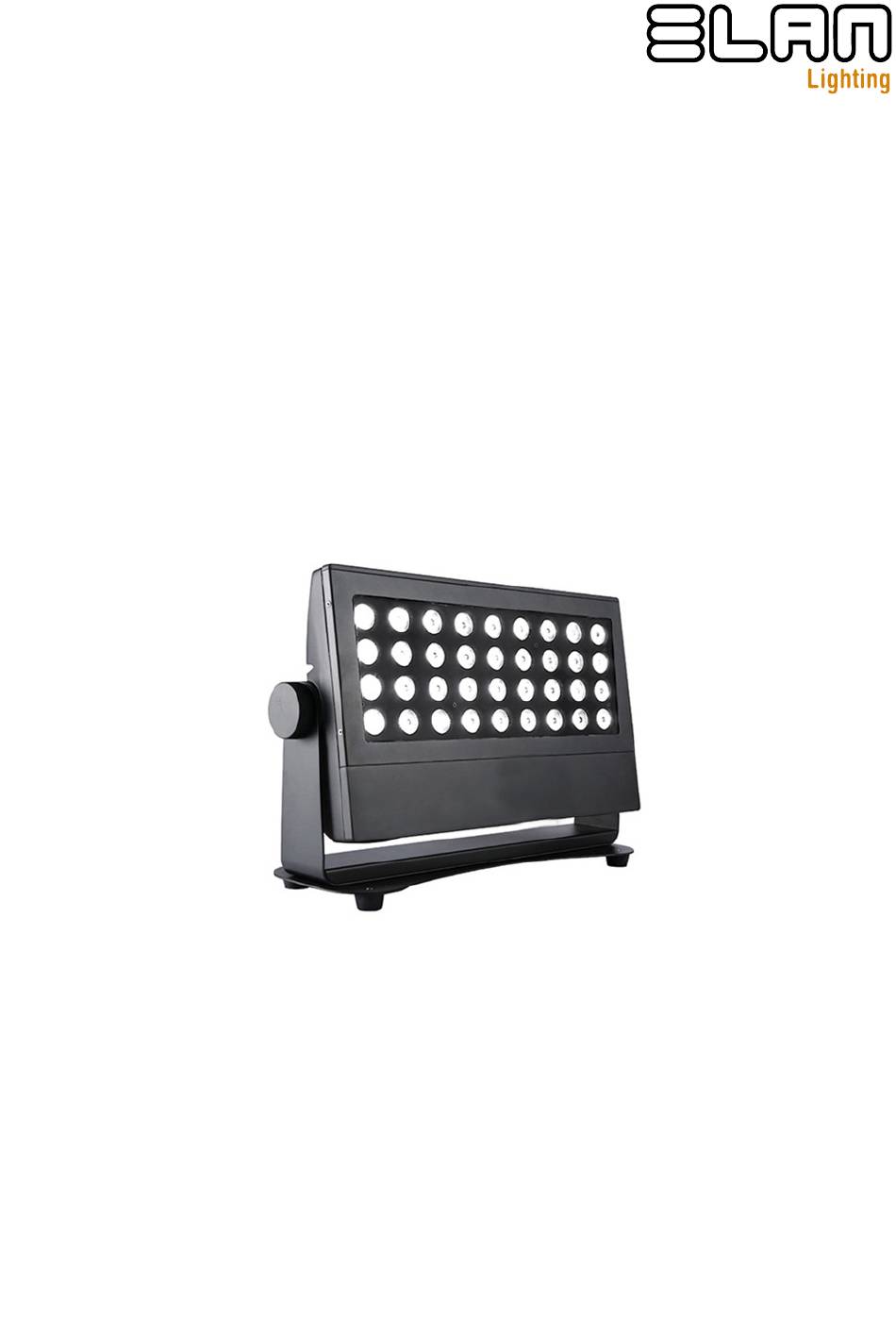

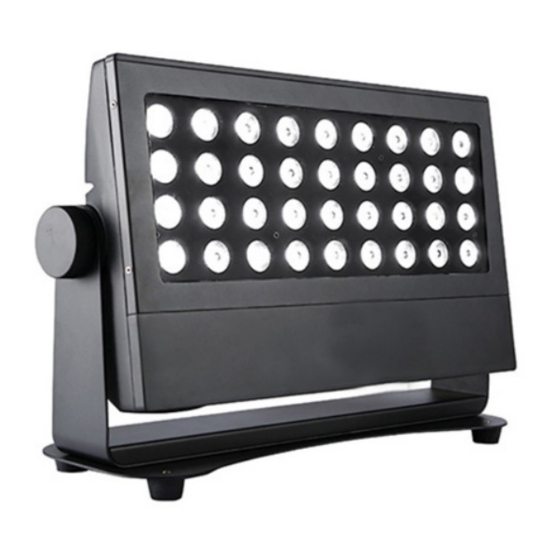

CITYCOLOR-551-IP
USER'S MANUAL
Thank you for purchasing the CITYCOLOR-551-IP. The item has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your fixture for any damage and be sure all accessories necessary to
operate the unit has arrived intact. In the case damage has been found or parts are missing,
please contact the manufacturer or your dealer for further instructions. Do not return this unit
to your dealer without first contacting.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting CITYCOLOR-551-IP
Summary of Contents for ELAN Lighting CITYCOLOR-551-IP
- Page 1 CITYCOLOR-551-IP USER’S MANUAL Thank you for purchasing the CITYCOLOR-551-IP. The item has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
- Page 2 Index 1. Safety ................3 2. General Instructions ............. 4 3. Operating Instructions ..........4 4. Touch Buttons .............. 5 5. Operating Modes ............6 6. Cleaning ............... 7 7. Troubleshooting ............7 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING.
- Page 3 1. Safety Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. PLEASE consider that damages caused by manual modifications to the device are not subject to warranty. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs your- self;...
-
Page 4: General Instructions
2. General Instructions Features: • Multi-Colors • Electronic Dimming 0-100% • Master/Slave synchronization • Daisy Chain Units Together in DMX Mode • Color Strobe • DMX-512 protocol • LED operation menu with function buttons • Sound control Set up: Power Supply: Before plugging your unit in, be sure the source voltage in your area matches the voltage required for your every suit. - Page 5 4.Touch Buttons • There are four touch buttons under the LED display: Menu, Up, Down, Enter. • Normally, the LED will display the current DMX address code of the fixture. At this time, press up and down to LED Operation Menu: LED screen with choose the functions you want..
- Page 6 5. Operation Modes (5 Channels) R, G, B, W, A (9 Channels) Dimmer, Strobe, R, G, B, W, A, Marco, Fade in & out 5 channels mode Channel Function Value 0-255 0-255 0-255 0-255 0-255 9 channels mode Recommended Channel Function Value Dimmer...
-
Page 7: Troubleshooting
6. Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be ca- rried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing. 2.
