CABLED-
60S-MINI
USER'S MANUAL
Thank you for purchasing the CABLED-60S-MINI. The item has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your fixture for any damage and be sure all accessories necessary to
operate the unit has arrived intact. In the case damage has been found or parts are missing,
please contact the manufacturer or your dealer for further instructions. Do not return this unit
to your dealer without first contacting.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting CABLED-60S-MINI
Summary of Contents for ELAN Lighting CABLED-60S-MINI

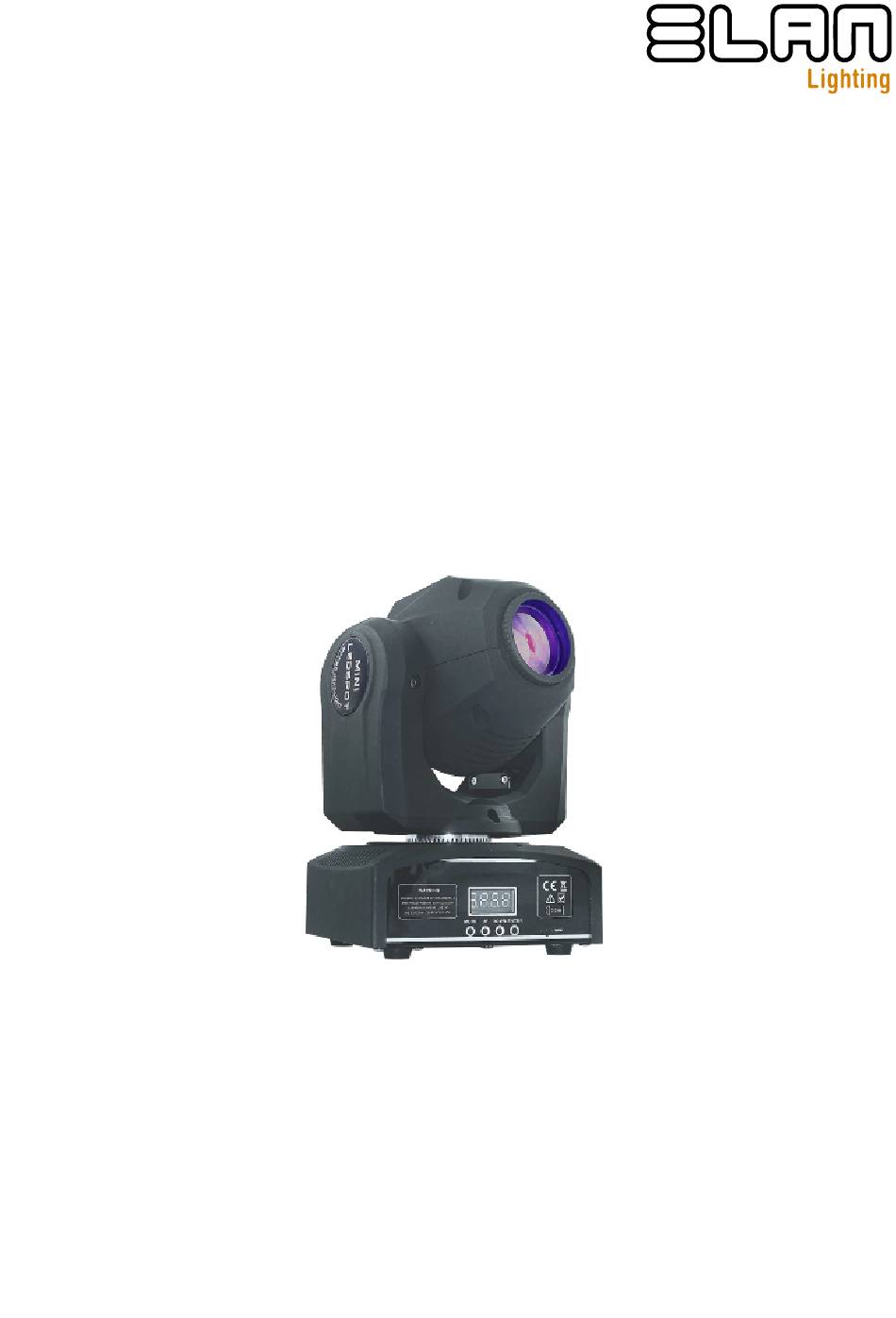

- Page 1 60S-MINI USER’S MANUAL Thank you for purchasing the CABLED-60S-MINI. The item has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
-
Page 2: Table Of Contents
Index 1. Safety ................3 2. General Instructions ............. 4 3. Operating Modes ............5 4. Menu Operation ............5 5. DMX Chart ..............6 6. Circuit Diagram ............7 7. Cleaning ............... 7 8. Troubleshooting ............8 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING. -
Page 3: Safety
1. Safety Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to rain or moisture. PLEASE consider that damages caused by manual modifications to the device are not subject to warranty. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs your- self;... -
Page 4: General Instructions
540°and with DMX control; vertical 180°, the scanning precision reaches • Meet CE standard, UL standard . 16bit ,with smooth and precise positioning, Specifications • Model: CABLED-60S-MINI • Color: 7 colors+white • Net Weight: 2.6Kgs • Power: 100w •... -
Page 5: Operating Modes
3. Operating Modes You can use the fixture in 4 ways: • Sound-Active mode (F/A) - The unit will react to sound, chasing through the built in programs. • Auto Mode - The unit will automatically chase through the different colors and built-in programs. •... -
Page 6: Dmx Chart
5. DMX Chart Reduced Mode Standard Mode Function Description Value 540° 001-255 Fine Pan 16bit 001-255 Tilt 180° 001-255 Fine Tilt 16bit 001-255 Fastest Speed Fast-Slow 001-255 Color 000-127 Color Macro 128-255 Gobo 000-063 Macro 064-127 Gobo White 128-143 Gobo shake 144-255 Dimmer Dimmer... -
Page 7: Circuit Diagram
6. Circuit Diagram 7. Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe down the outside casing. 2. -
Page 8: Troubleshooting
8. Troubleshooting Listed below are a few common problems the user may encounter, with solutions. Unit does not respond to DMX: 1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other DMX devices pin 2 may be ‘hot’). Also, check that all cables are connected to the right connectors;...
