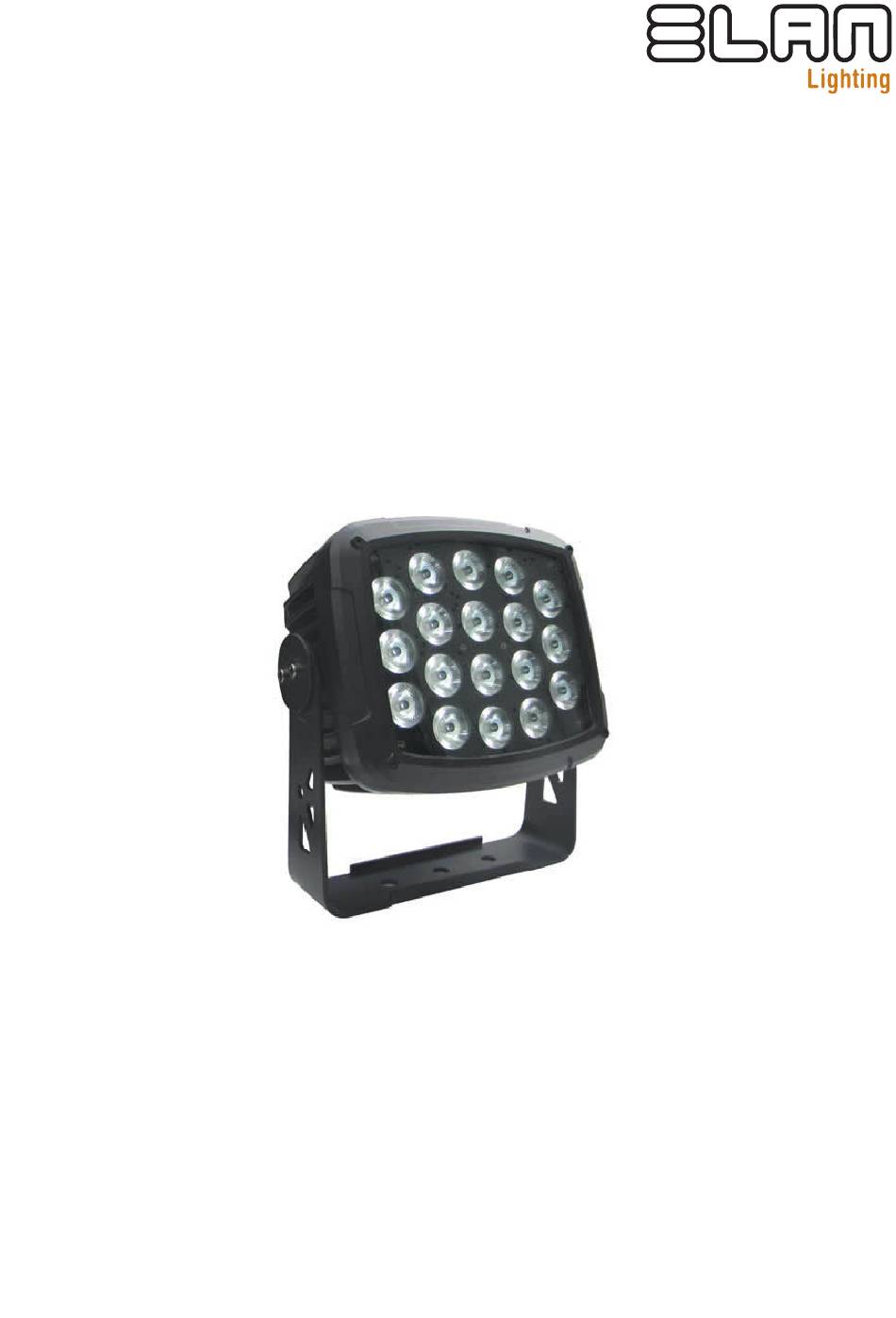

ARC-418
USER'S MANUAL
Thank you for purchasing the ARC-418. Every suit has been thoroughly tested and shipped
in perfect condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your unit for any
damage and be sure all accessories necessary to operate the unit has arrived intactly. In the
case damage has been found or parts are missing, please contact Acson Comercial or your
local supplier for further instructions. Do not return this unit without any warning.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting ARC-418
Summary of Contents for ELAN Lighting ARC-418
- Page 1 ARC-418 USER’S MANUAL Thank you for purchasing the ARC-418. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
-
Page 2: Table Of Contents
Contents 1. Introduction ....................... 3 2. General Instructions ..................3 3. Safety Precautions .................... 3 4. Set Up ......................... 4 5. Operating Instructions ..................4 DMX Mode ....................5 Touch Buttons ....................5 LED Operation Menu ..................5 LED Display ....................5 6. -
Page 3: Introduction
1. Introduction Warning! To prevent or reduce the risk of electrical shock or fire, Do not expose this to rain or moisture. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufacturer warranty. In the unli- kely event your unit may require service please contact the manufacturer or your dealer. -
Page 4: Set Up
Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6” (15cm) between this device and a wall. Do not attempt to operate this unit, if it becomes damaged. This unit is intended for indoor use only; use of this product outdoors voids all warranties. During long periods of non-use, disconnect the units main power. -
Page 5: Dmx Mode
DMX Mode Operating through a DMX controller gives the user the freedom to create their own programs tailored to their own individual needs. This function also allows you to use your units as spot lights. 1. This function will allow you to control each individual unit’s traits with a standard DMX 512 controller. 2. -
Page 6: Dmx Setup
Fade in&out (slow to 001-100 fast) 001-100 Color speed 0-49 Auto run 50-100 Sound 6. DMX Setup DMX setup in 3 modes Mode A 3 Channels RGBW AOOI Mode P 4 Channels RGBW, Dimmer POOI RGB, Dimmer, Mode F 7 Channels FOOI Strobe, Macro Mode A:... -
Page 7: Cleaning
Mode F: Channel Function Value 0-255 0-255 0-255 0-255 No function Strobe (slow to fast) 2-196 Strobe Auto strobe (slow to 197-255 fast) No function Color fade (slow to 2-19 fast) Color Transient 20-39 (slow to fast) Color free (slow to 40-59 fast) Yellow... -
Page 8: Troubleshooting
8. Troubleshooting Unit not responding to DMX: 1. Check that the DMX cables are connected properly and are wired correctly (pin 3 is “hot”; on some other DMX devices pin 5 may be “hot”). 2. Check that all cables are connected to the right connectors; it does matter which way the inputs and outputs are connected. - Page 9 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
