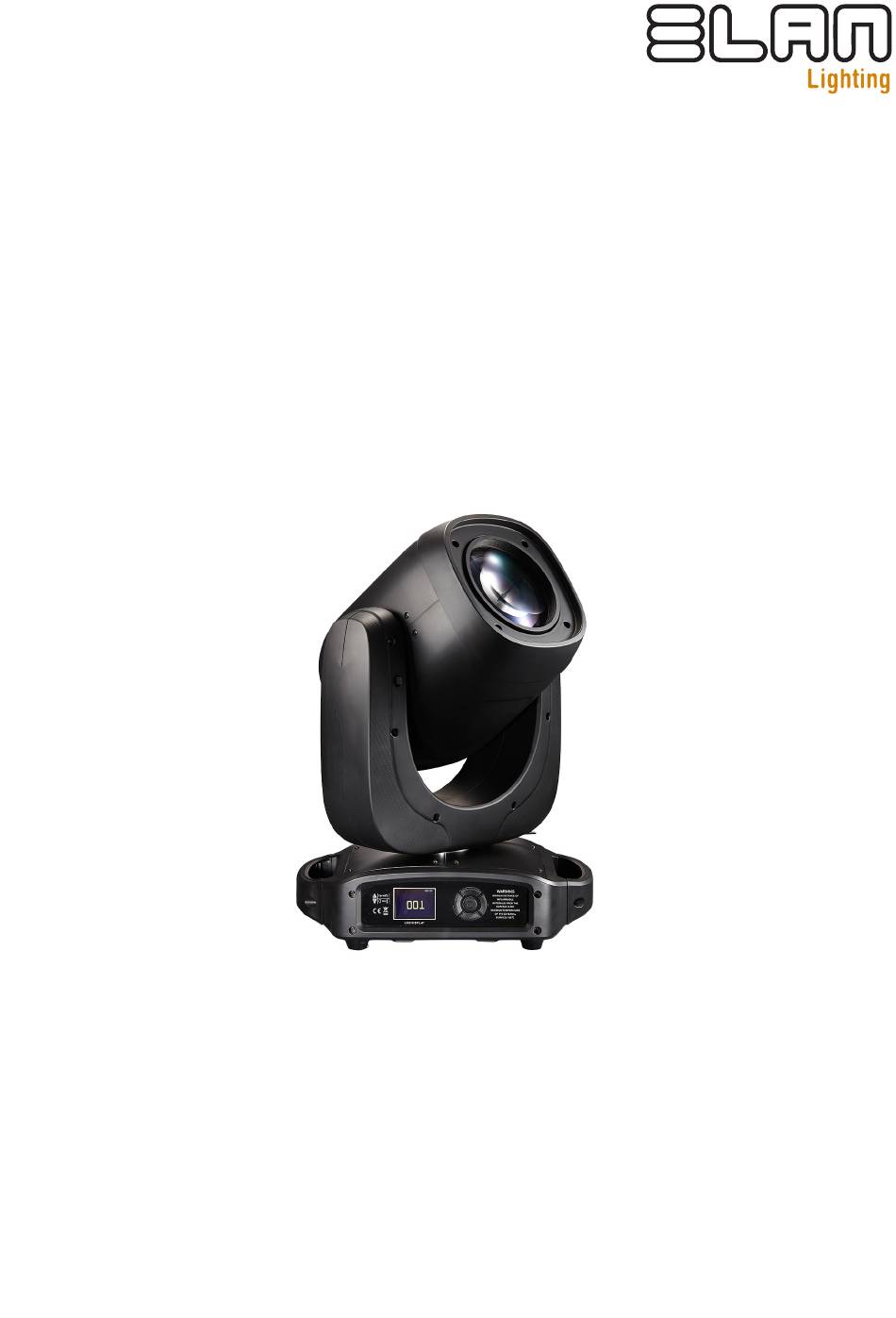

MYTHIC
USER'S MANUAL
Thank you for purchasing our moving head MYTHIC. Every suit has been thoroughly tested
and shipped in perfect condition. Carefully check the shipping carton for damage that may
have occurred during shipping. If the carton appears to be damaged, carefully inspect your
unit for any damage and be sure all accessories necessary to operate the unit has arrived
intactly. In the case damage has been found or parts are missing, please contact Acson
Comercial or your local supplier for further instructions. Do not return this unit without any
warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MYTHIC and is the answer not in the manual?

Questions and answers

Related Manuals for ELAN Lighting MYTHIC

Summary of Contents for ELAN Lighting MYTHIC

  • Page 1 MYTHIC USER’S MANUAL Thank you for purchasing our moving head MYTHIC. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.

  • Page 2: Table Of Contents

    Contents 1. Safety Instructions ..........................3 2. Features ..............................3 3. General Guidelines ..........................4 4. Cleaning And Maintenance ........................4 5. Fixture Overview ............................ 5 6. Lamp Installation Instructions......................6 7. Mounting And Installation ........................6 8. DMX-512 Control Connection ......................7 9.

  • Page 3: Safety Instructions

    1. Safety Instructions Attention! This Fixture is an extremely sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow the guidelines in this manual. We will not accept responsibility for damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.

  • Page 4: General Guidelines

    2gobo wheels: -Wheel with 6HQ dichroic, indexable and interchangeable rotating gobos -Variable rotating wheel with 18+1 fixed metal gobos; Advanced Animation disc Effects 2 indexable and interchangeable rotating prisms(8-facet and linear prism) Frost unit to soften the beam edge High precision 0-100% dimmer Mechanical shutter and strobe effect Control 30/34 DMX 512 control channels...

  • Page 5: Fixture Overview

    • Before any maintenance and cleaning, please ensure the project is off the power. • Only qualified person is allowed to do maintenance. • During maintenance and before maintenance, the projector must be off power. • To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens whether it runs or not.

  • Page 6: Lamp Installation Instructions

    6. Lamp Installation Instructions Installing or replacing the lamp life of 1400-1500 hours). After 1500 hours • For a proper and safe lamp change, please read the fixture will no longer respond to DMX commands and immediately enter a hibernation this chapter carefully and follow all instructions.

  • Page 7: Dmx-512 Control Connection

    Warning! • The projector MUST be lifted or carried by the HANDLES instead of clamps. • For safety the safety cord should afford 10 times the Projector’s weight. 8. DMX-512 Control Connection DMX Output DMX Input DMX Input DMX Input 3pin-XLR Socket 3pin-XLR Socket 5pin-XLR Socket...

  • Page 8: Control Board

    DMX-512 connection with DMX terminator A DMX terminator should be used in all DMX lines especially in longer runs. The use of a A DMX terminator should be used in all DMX lines especially in longer runs. The use of a terminator may avoid erratic beha- vior in your DMX line.

  • Page 9: Display Menu

    SETTING ADDRESSES AND OPTIONS WITH THE PROJECTOR DISCONNECTED The projector’s DMX address, as well as other possible operating options, can also be set when the appliance is disconnected from the electricity supply. All that is needed is to press to momentarily activate the display and thus access the settings. Once the required operations have been carried out,the display will switch off again after a wait time of 30 se- conds.

  • Page 10: Dmx Channel

    Main Level 1 Level 2 Level 3 Safety Black out Disable Enable Pan/Tilt Pan Invert Disable Enable Tilt Invert Disable Enable Pan Tilt Swap Disable Enable Config Black light Auto off: 45S Auto off: 10S Always on Monitor Dir Auto Change Normal Invert Lamp DMX...
  • Page 11 Channel Mode Channel Standard Vector PRISMS INSERTION PRISMS INSERTION PRISMS ROTATION PRISMS ROTATION FROST FROST ZOOM ZOOM FOCUS FOCUS FOCUS FINE FOCUS FINE BEAM MODE BEAM MODE FINE PAN FINE PAN TILT TILT FINE TILT FINE TILT FUNCTION FUNCTION RESET RESET LAMP CONTROL LAMP CONTROL...
  • Page 12 Channel Mode DMX Value Function Standard Vector COLOUR 2 Empty position Empty + Dark Green Dark Green Dark Green + CTB CTB + Dark Blue Dark Blue Dark Blue + H.M.Green H.M.Green H.M.Green + Dark Red Dark Red COLOUR 3 Empty position Empty + Light Green Light Green...
  • Page 13 Channel Mode DMX Value Function Standard Vector 0-255 Fine Dimmer positioning STATIC GOBO CHANGE Empty position Gobo1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Gobo7 Gobo8 Gobo9 Gobo10 Gobo11 Gobo12 Gobo13 Gobo14 Gobo15 Gobo16 Gobo17 Gobo18 72-113 Continuous gobo wheel clockwise rotation at linearly variable speed from fast (60 rpm) to slow (5 rpm) 114-117 Stop rotation...
  • Page 14 Channel Mode DMX Value Function Standard Vector 224-229 Gobo 13 shakes … 230-234 Gobo 14 shakes … 235-239 Gobo 15 shakes … 240-245 Gobo 16 shakes … 246-250 Gobo 17 shakes … 251-255 Gobo 18 shakes … ANIMATION DISK INSERTION 0-255 Linear Animation Disk Insertion ANIMATION DISK ROTATION...
  • Page 15 Channel Mode DMX Value Function Standard Vector 191-192 Stop rotation 193-255 Continuous gobo rotation at linearly variable speed from slow (2.2 rpm) to fast (180 rpm) ROTATING GOBO effect disabled if BEAM MODE is working FINE GOBO ROTATION 0-255 Fine Gobo Indexing PRISM INSERTION 0-10 Prism out...
  • Page 16 Channel Mode DMX Value Function Standard Vector 0-255 “Pan movement/positioning from 0° to 540° Fast Speed: 3.517 sec Normal Speed: 4.038 sec” FINE PAN 0-255 Fine Pan positioning TILT 0-255 “Tilt movement/positioning from 0° to 244° Fast Speed: 2.180 sec Normal Speed: 2.274 sec”...
  • Page 17 Channel Mode DMX Value Function Standard Vector MACRO EFFECTS RESERVE PAN-TILT TIME Pan - Fine Pan - Tilt - Fine Tilt COLOUR TIME Cyan - Magenta – Yellow BEAM TIME Dimmer - Frost - Prism – Focus - Zoom GOBO TIME Static Gobo –...
  • Page 18 IMPORTANT In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
