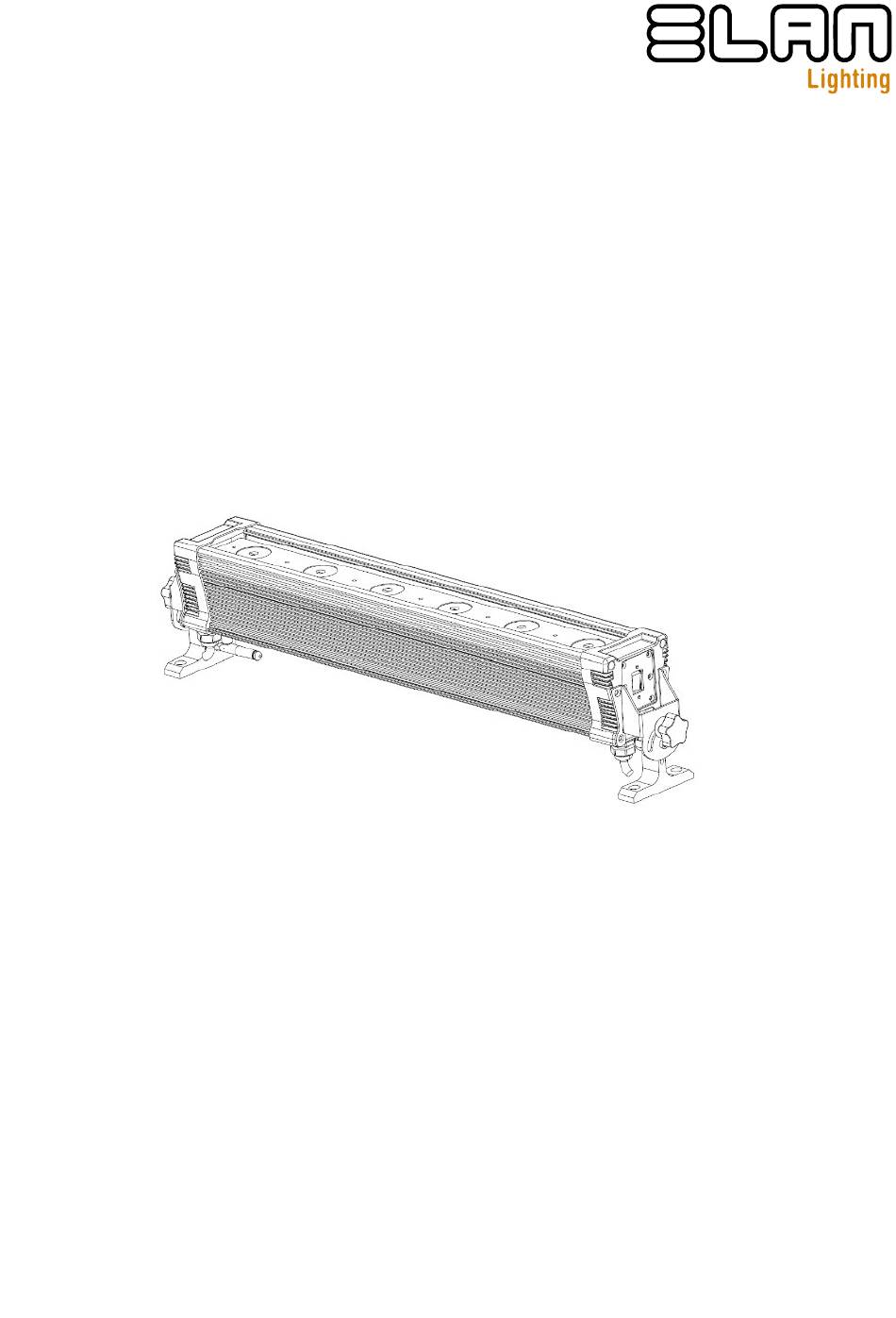

CLASSICBAR-661
USER'S MANUAL
Thank you for purchasing the CLASSICBAR-661. Every suit has been thoroughly tested and
shipped in perfect condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for
any damage and be sure all accessories necessary to operate the unit has arrived intactly. In the
case damage has been found or parts are missing, please contact Acson Comercial or your local
supplier for further instructions. Do not return this unit without any warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classicbar-661 and is the answer not in the manual?

Questions and answers

Related Manuals for ELAN Lighting Classicbar-661

Summary of Contents for ELAN Lighting Classicbar-661

  • Page 1 CLASSICBAR-661 USER’S MANUAL Thank you for purchasing the CLASSICBAR-661. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.

  • Page 2: Table Of Contents

    Contents 1. Introduction ....................... 3 2. Safety Notes ...................... 3 3. Product Drawing ....................4 4. Main Functions ....................4 5. DMX Control Functions ..................5 6. Display Operation Instruction ................. 6 7. Operating Control Instruction ................. 11 8. XLR cable connecting ..................11 9.Trouble Shooting ....................

  • Page 3: Introduction

    1. Introduction Product Information The CLASSICBAR-661 uses high power RGBAWUV 6-in-1 12W LEDs, and 32-bit ARM dimming techno- logy, with 0-16666 levels of PWM modulation. The refreshing rate can achieve 600HZ, achieving smooth dimming and flicker free. Each kind of LED can be independently dimmer. It uses power switch, performs low weight and consumption, stable capability and long life.

  • Page 4: Product Drawing

    3. Product Drawing Size: 580 x 168 x 95mm // Net Weight: 4,56Kg 580mm 4. Main Functions • High quality led: low consumption, high bright- • Using switching power supply to protect the led ness, stable capability and long life to work well •...

  • Page 5: Dmx Control Functions

    5. DMX Control Functions 12CH VALUE FUNCTION 0-255 Dimming all 0-255 0-255 Green 0-255 Blue 0-255 Amber 0-255 White 0-255 No strobe 6-20 Random burst strobe (slow to fast) 21-60 Normal strobe (slow to fast) 61-100 Electronic Sinewave (slow to fast) 101-140 Random Strobe (slow to fast) 141-180...

  • Page 6: Display Operation Instruction

    12CH VALUE FUNCTION CH10 0-255 0-255(S),(speed of AUTO,fast to slow, when AUTO1-AUTO5 effective) 0-10 No effect Blue (Blue=full, Red+Green=0) (step) 12-50 Red=0, Green->up,Blue =full (proportional) Light Blue (Red=0, Green=full, Blue =full) (step) 52-90 Red=0, Green=full, Blue->down (proportional) Green (Red=0, Green=full, Blue =0) (step) 92-130 Red->up, Green=full, Blue=0 (proportional) Yellow (Red=full, Green=full, Blue=0) (step)
  • Page 7 Menu Tree Level 1 Level 2 Level 3 Level 4 ADDR(Address) 001-512 STAT(Static control) 0-255* 0-255* 0-255* 0-255* 0-255* 0-255* SHUT 0-255* PRSC (Preset color) NONE,R,G,B,A,W,U- V,YELLOW,PINK,C- YAN,ORANGE,VIOLE- T,GOLDEN,2700K,32 00K,4000K,5500K,650 0K,RGBW * SET(Set) CAL (Calibration) R(Red) 0-255 G(Green) 0-255 B(Blue) 0-255 0-255 0-255...
  • Page 8 Level 1 Level 2 Level 3 Level 4 G(Green) 0-255 B(Blue) 0-255 0-255 0-255 0-255 CT10 AUTO(Auto) AT01 0-255* AT02 0-255* AT03 0-255* AT04 0-255* AT05 0-255* CHS1 RUN..* CHS2 RUN..* CHS3 RUN..* PROG (Program) CHS1 (Chase 1) SC01(Scene 1) R(Red) 0-255 G(Green)
  • Page 9 2. STATIC SETTING 1. Press the [ENTER] button in [STAT] menu, then enter to the static setting. 2. Press the [UP/DOWN] button to select [RED], [GREEN], [BLUE],[WHITE]...[PRSC]. 3. Press the [UP/DOWN] button to set up the [0-255] numerical value. 4. Press the [ENTER] button to escape and save. 3.
  • Page 10 2. Press the UP/DOWN button to select 2.4G , CABLE 3. Press the ENTER button to exit and save. 6.10 Wireless set 1. Press the ENTER button in WIRE menu, then enter to the wireless set. 2. RESET Reset. 3. KEY Similar to built-out button 6.11 CUSTOM COLOR SETTING 1.

  • Page 11: Operating Control Instruction

    6.17 LIGHTING PARAMETER DOWNLOADING EACH OTHER VIA DMX CABLE 1. Press the ENTER button in SEND menu, then enter to sending parameter to other lightings. 2. Press the UP/DOWN button to select YES. 3. Press the ENTER button to confirm sending. Illustrations •...

  • Page 12: Trouble Shooting

    The Conversion between 3 pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable 9.Trouble Shooting PROBLEM REASON AND ACTION The lighting can’t be started Check the power connection is correct or not. normally Please detect the voltage.
  • Page 14 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
