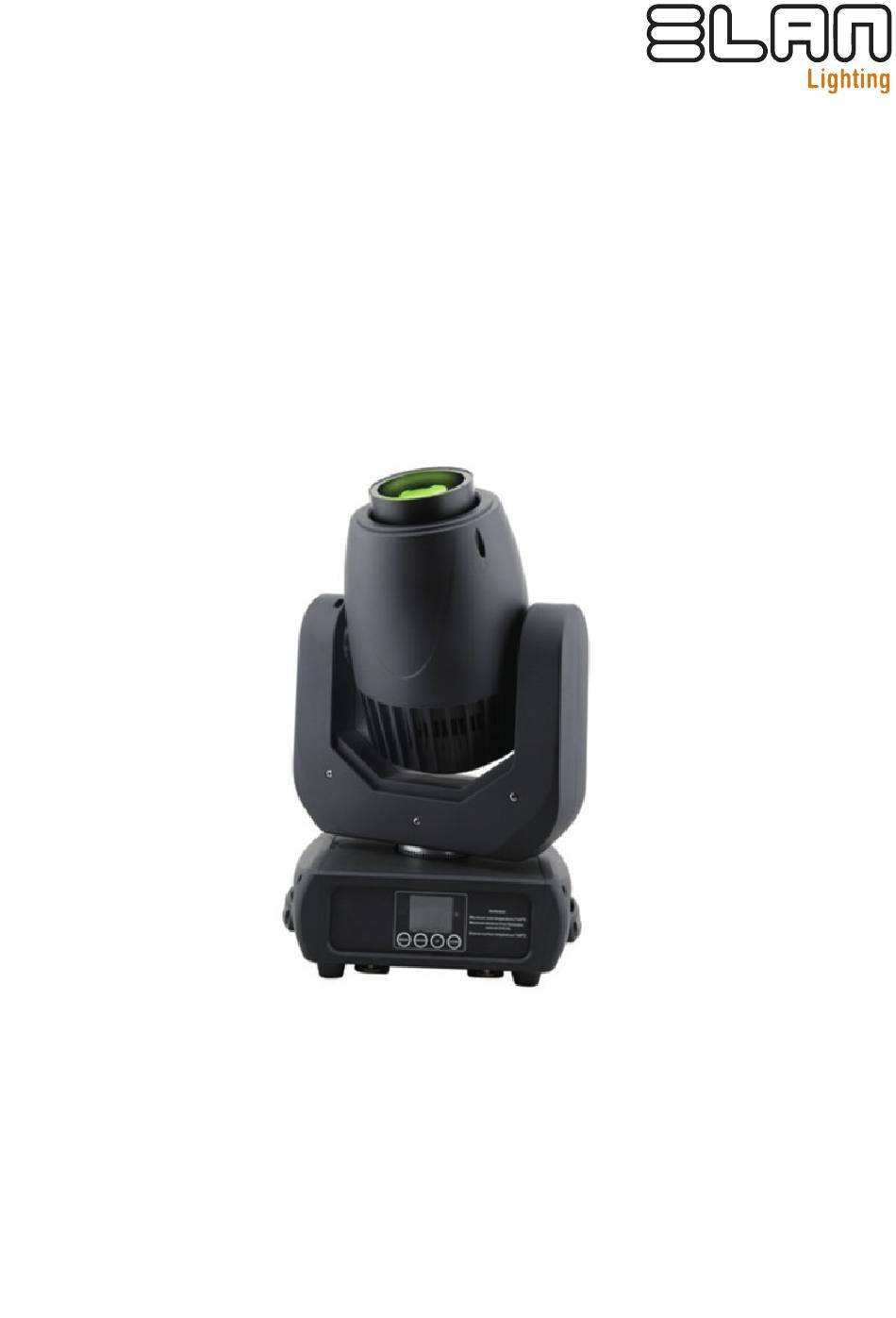

CABLED-150-SPOT-MKII
USER'S MANUAL
Thank you for purchasing a product from our CABLED-150-SPOT-MKII. Every suit has been
thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your unit for any damage and be sure all accessories necessary to operate
the unit has arrived intactly. In the case damage has been found or parts are missing, please
contact Acson Comercial or your local supplier for further instructions. Do not return this unit
without any warning.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting CABLED-150-SPOT-MKII
Summary of Contents for ELAN Lighting CABLED-150-SPOT-MKII
- Page 1 CABLED-150-SPOT-MKII USER’S MANUAL Thank you for purchasing a product from our CABLED-150-SPOT-MKII. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
-
Page 2: Table Of Contents
Contents 1. Safety Instructions .................... 3 2. Unpacking ......................4 3. Features & Specifications ................. 4 4. Photometric Data ....................5 5. Operation Instructions ..................6 6. Installation Instructions ..................6 7. DMX-512 Control Connections ................8 8. Menu Operations ....................8 9. -
Page 3: Safety Instructions
1. Safety Instructions Caution! Be careful when operating this fixture. High voltage can cause dangerous electric shock when manipulating wires. This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. -
Page 4: Unpacking
2. Unpacking Thank you for choosing our CABLED-150-SPOT-MKII moving head light. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture according to these instructions. Please keep this manual well stored for future needs. -
Page 5: Specifications
Specifications • Input Voltage: AC90-260V 50/60Hz • Power Consumption: 250W • Light Source: 150W High Output White LED • Dimensions: 270(D)*270(W)*470(H)mm • Control Signal: DMX 512, master-slave and • Packing size: 305(D)*305(W)*500(H)mm sound activated or auto operation • Net Weight: 10.6kg, •... -
Page 6: Operation Instructions
5. Operation Instructions • The moving head is for spot effect for on-site decoration purpose. • Don’t turn on the fixture if it’s been through severe temperature difference like after transportation becau- se it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 7 Mounting points: • Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all ins- tallation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
-
Page 8: Dmx-512 Control Connections
7. DMX-512 Control Connections Connect the provided XLR cable to the fe- For installations where the DMX ca- male 3-pin XLR output of your controller and ble has to run a long distance or is in an the other side to the male 3-pin XLR input of electrically noisy environment, such as in the moving head. - Page 9 16/14/12/10/ Channel Mode Sheet CH10 CH12 14CH 16CH Function Channel Value Description 0-255 0-540° Pan fine 0-255 Pan Fine Tilt 0-255 0-270° Tilt Fine 0-255 Tilt Fine X, Y speed 0-255 From fast to slow LED Dimmer 0-255 From dark to bright Turn on LED Strobe 8-250...
-
Page 10: Cleaning And Maintenance
0-15 open 16-31 Gobo1 32-47 Gobo2 48-63 Gobo3 6 rotation gobos CH10 64-79 Gobo4 +White 80-95 Gobo5 96-127 Gobo6 128-191 Gobo Rotate CW slow to fast 192-255 Gobo Rotate CCW slow to fast 0-15 open 16-95 Gobo Fine 0-360 96-135 Gobo Rotating 0-90 136-155 Gobo Rotating 0-180... - Page 11 Caution! Disconnect from mains before starting maintenance operation. In order to keep the lights in good condition and extend the life time, we suggest a regular cleaning to the lights: • Clean the inside and outside lens each week to avoid the weakness of the lights due to accumulation of dust.
- Page 12 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
