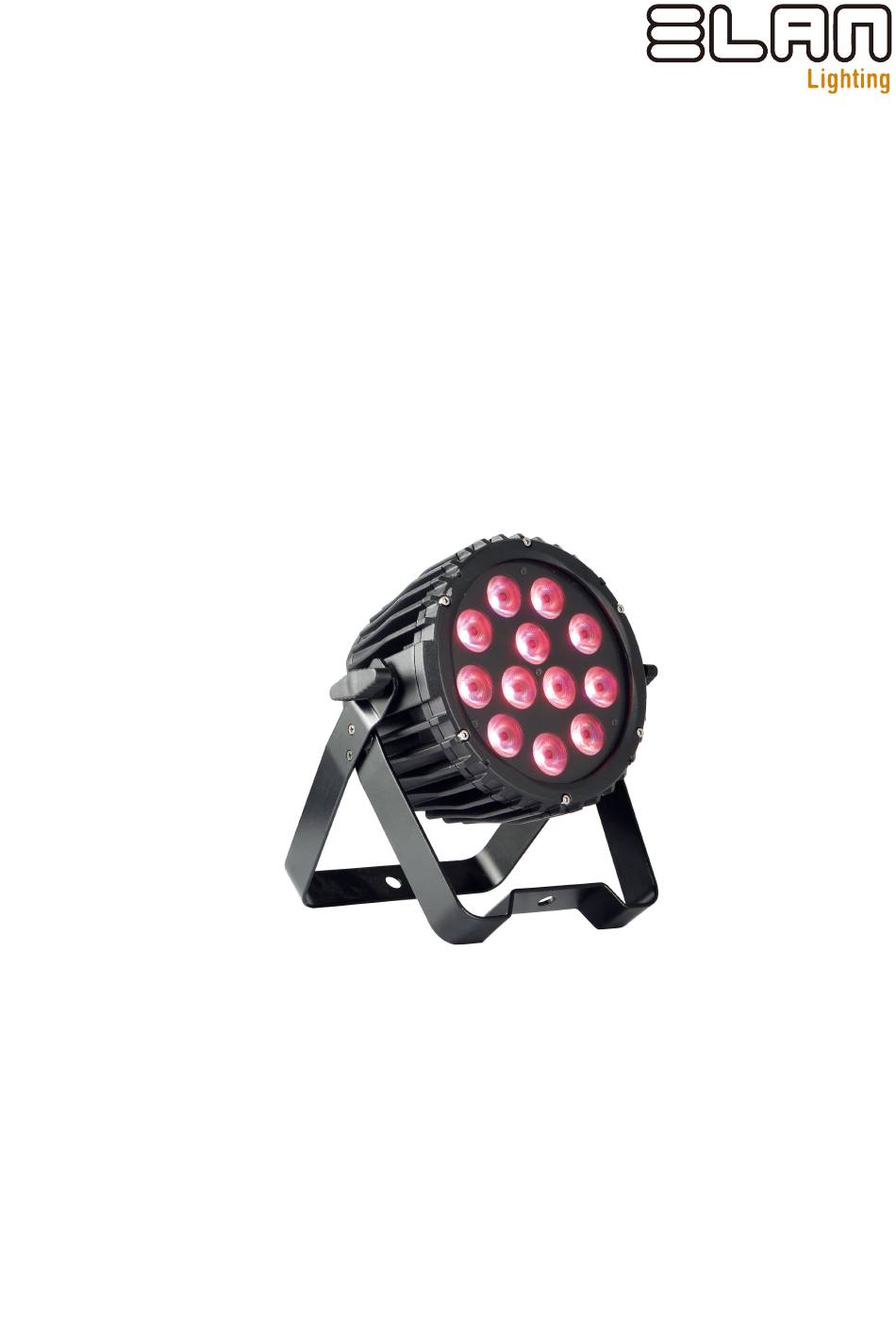

PSD 512 II
USER'S MANUAL
Thank you for purchasing PSD 512 II. Every suit has been thoroughly tested and shipped in
perfect condition. Carefully check the shipping carton for damage that may have occurred
during shipping. If the carton appears to be damaged, carefully inspect your unit for any
damage and be sure all accessories necessary to operate the unit has arrived intactly. In
the case damage has been found or parts are missing, please contact the manufacturer
or your dealer for further instructions. Do not return this unit to your dealer without any
warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSD 512 II and is the answer not in the manual?

Questions and answers

Related Manuals for ELAN Lighting PSD 512 II

Summary of Contents for ELAN Lighting PSD 512 II

  • Page 1 PSD 512 II USER’S MANUAL Thank you for purchasing PSD 512 II. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.

  • Page 2: Table Of Contents

    Index 1. Safety ................3 2. Set Up ................. 4 3. Operating Instructions ..........4 4. Cleaning ..............7 5. Troubleshooting ............7 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING. SAVE IT FOR FUTURE REFERENCE...

  • Page 3: Safety

    1. Safety Warning! To prevent or reduce the risk of PLEASE consider that damages caused electrical shock or fire, do not expose this by manual modifications to the device unit to rain or moisture. are not subject to warranty. Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufactures warranty.

  • Page 4: Set Up

    2. Set Up Features • Multi-Colors • Electronic Dimming 0-100% • Master/Slave synchronization • DMX-512 protocol • Color Strobe • Daisy Chain Units Together in DMX Mode • LED operation menu with function buttons • Sound control Power Supply Before plugging your unit in, be sure the source voltage in your area matches the voltage required for your every suit.

  • Page 5: Dmx Setup

    Touch Buttons There are four touch buttons under the LED display: Menu, Up, Down, Enter. Normally, the LED will display the current DMX address code of the fixture. At this time, presses up and down to choose the functions you want LED Operation Menu: LED screen with four touch buttons (MENU, UP, DOWN and ENTER).
  • Page 6 d001 (5CH) Channel Function Value 0-255 0-255 0-255 0-255 0-255 A001 (9CH) Channel Function Value Dimmer Dimmer, OFF/ON 0-255 Strobe Slow to fast 0-255 Red intensity 0-255 Green intensity 0-255 Blue intensity 0-255 White intensity 0-255 Amber intensity 0-255 No function Red Fade in 10-34 R+G, Green fade in...

  • Page 7: Cleaning

    4. Cleaning Due to fog residue, smoke, and dust cleaning the internal and external optical lenses must be carried out periodically to optimize light output. 1. Use normal glass cleaner and a soft cloth to wipe off the outside casing. 2.
  • Page 8 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances con- tain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. PLEASE Note: All information is subject to change without notice.
