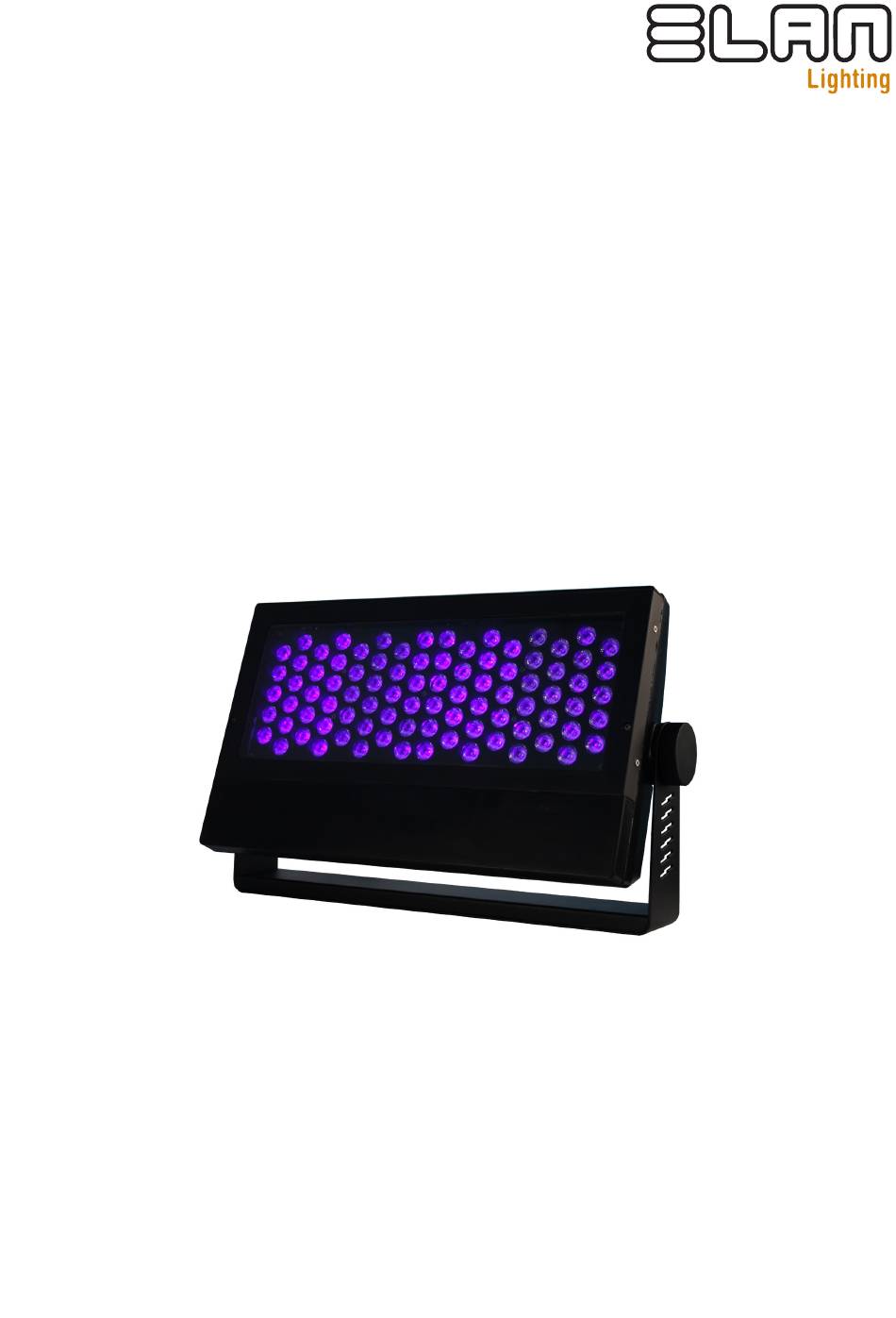

CITYCOLOR-551-UV
USER'S MANUAL
Thank you for purchasing the CITYCOLOR-551-UV. The item has been thoroughly tested
and has been shipped in perfect operating condition. Carefully check the shipping carton
for damage that may have occurred during shipping. If the carton appears to be damaged,
carefully inspect your fixture for any damage and be sure all accessories necessary to
operate the unit has arrived intact. In the case damage has been found or parts are missing,
please contact the manufacturer or your dealer for further instructions. Do not return this unit
to your dealer without first contacting.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting CITYCOLOR-551-UV
Summary of Contents for ELAN Lighting CITYCOLOR-551-UV
- Page 1 CITYCOLOR-551-UV USER’S MANUAL Thank you for purchasing the CITYCOLOR-551-UV. The item has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your fixture for any damage and be sure all accessories necessary to operate the unit has arrived intact.
-
Page 2: Table Of Contents
Index 1. Introduction ..............3 2. Safety Instructions ............3 3. Operation ..............4 Display Men ................. 4 Main Functions ................5 DMX Functions and Values ............7 4. Cleaning and Maintenance .......... 7 5. Installation ..............7 FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE POWERING OR INSTALLING. -
Page 3: Introduction
1. Introduction PLEASE consider that damages caused by manual modifications to the device are not subject to warranty. Thank you for having chosen our LED lighting. Unpack the device, inside the box you should find: • The fixture • One power cable •... -
Page 4: Operation
hazard. • Make sure that the available voltage is not higher than stated at the end of this manual. • Make sure the power cord is never crimped or damaged by sharp edges. If this would be the case,replacement of the cable must be done by an authorized dealer. •... -
Page 5: Main Functions
CoLr(Show Colour Mode) R for Red g for GREEN b for Blue Hr(Power on time) Xxxx Time in hour for power on Red Calibrate Mode CCAL(Color Calibrate) Green Calibrate Mode Blue Calibrate Mode xxxC Tem- tEp(Temperature) perature xxx Temperature Calibrate in ℃... - Page 6 Ⅲ Auto: Auto Run mode menu,and you will see the temperature of the Press ENTER button when show the Auto led in ℃,if there are no temperature sensor,it menu, then adjust the mode by pressing [UP] or will show Err [DOWN] button CAUTION! The brightness will decrease...
-
Page 7: Dmx Functions And Values
there no DMX signal and choose oFF will not hold the last signal and turn off the device while there is no DMX signal DMX Functions and Values Channel Value Functions Channel 1 0-255 Master Dimmer (0-100%) Channel 2 0-255 Red (0-100%) Channel 3 0-255... - Page 8 Technical Specifications Power supply: 100V~240V AC, 50 Hz /60Hz Power consumption: max. 200 W Waterproof grade: IP 20 Packing dimensions: 62.5x14x35.5CM Note: All information is subject to change without prior notice.
