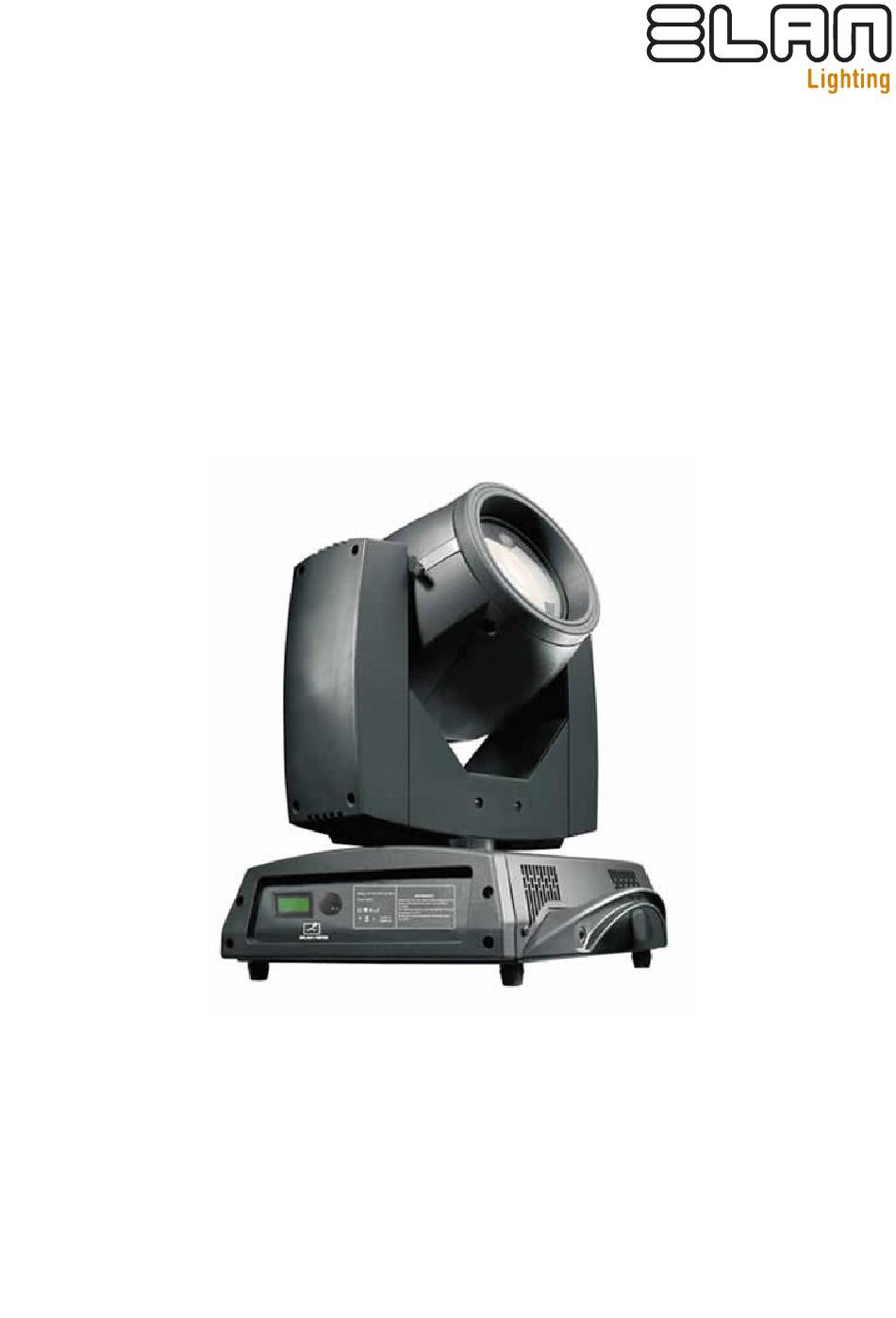

CAB-5R-BEAM
USER'S MANUAL
Thank you for purchasing the CAB-5R-BEAM. Every suit has been thoroughly
tested and shipped in perfect condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears to be
damaged, carefully inspect your unit for any damage and be sure all accessories
necessary to operate the unit has arrived intactly. In the case damage has been
found or parts are missing, please contact Acson Comercial or your local supplier
for further instructions. Do not return this unit without any warning.
Advertisement
Table of Contents
Related Manuals for ELAN Lighting CAB-5R-BEAM
Summary of Contents for ELAN Lighting CAB-5R-BEAM
- Page 1 CAB-5R-BEAM USER’S MANUAL Thank you for purchasing the CAB-5R-BEAM. Every suit has been thoroughly tested and shipped in perfect condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your unit for any damage and be sure all accessories necessary to operate the unit has arrived intactly.
-
Page 2: Table Of Contents
Contents 1. Safety Precautions ......................... 3 2. Before you start ........................4 DMX Linking Power Supply Mains Mounting Bracket Opertating Modes LCD display and button 3. Menu operation ........................6 4. DMX Chart ..........................6 5. Cleaning ........................... 9 6. Troubleshooting ........................9 7. -
Page 3: Safety Precautions
1. Safety Precautions Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so will void your manufacturer warranty. In the unlikely event your unit may require service please contact the manufac- turer or your dealer. Please recycle the shipping carton whenever possible. -
Page 4: Before You Start
2. Before you start DMX Linking To ensure proper DMX data transmission, when using several DMX units try to use the shortest cable path possible. The order in which units are connected in a DMX line does not influence the DMX addressing. For example;... -
Page 6: Menu Operation
3. Menu operation Setup Enter Setup, there are DMX address, channel mode, return (ESC) for options. You can also enter channel mode to select two different modes: 1. Standard 16CH 2.Vector 20CH Option Enter “Option” , there are 3 options for Invert, Display, Return(ESC). Invert Pan, Invert Tilt, Reversal, Backli- ght, All of them can be activated by NO/YES. - Page 7 Channel Function DMX Value Description 39-42 Color Half 43-46 Color 5 47-51 Color Half 52-55 Color 6 56-59 Color Half 60-63 Color 7 64-68 Color Half 69-72 Color 8 73-76 Color Half 77-81 Color 9 82-85 Color Half Color wheel 86-89 Color 10 90-93...
- Page 8 Channel Function DMX Value Description 56-59 Gobo14 60-63 Gobo15 64-67 Gobo16 68-71 Gobo17 72-113 Gobo rotation, backward fast-slow 114-117 Stop 118-159 Gobo rotation, forward slow-fast 160-166 Gobo1 Shake(slow to quick) 167-172 Gobo2 Shake(slow to quick) 173-179 Gobo3 Shake(slow to quick) 180-185 Gobo4 Shake(slow to quick) Gobo wheel...
-
Page 9: Cleaning
Some other DMX devices pin 5 may be “hot”). Also, check that all cables are connected to the right con- nectors; It does matter which way the inputs and outputs are connected. 7. Specifications • Model Name: CAB-5R-BEAM • DMX Channels: 16 CHs •... - Page 10 IMPORTANT INFORMATION! In order to optimize the recovery and recycling of the materials that old appliances contain and reduce the impact on human health and the environment, please make sure that this product is recycled at the end of its life. Note: All information is subject to change without prior notice.
