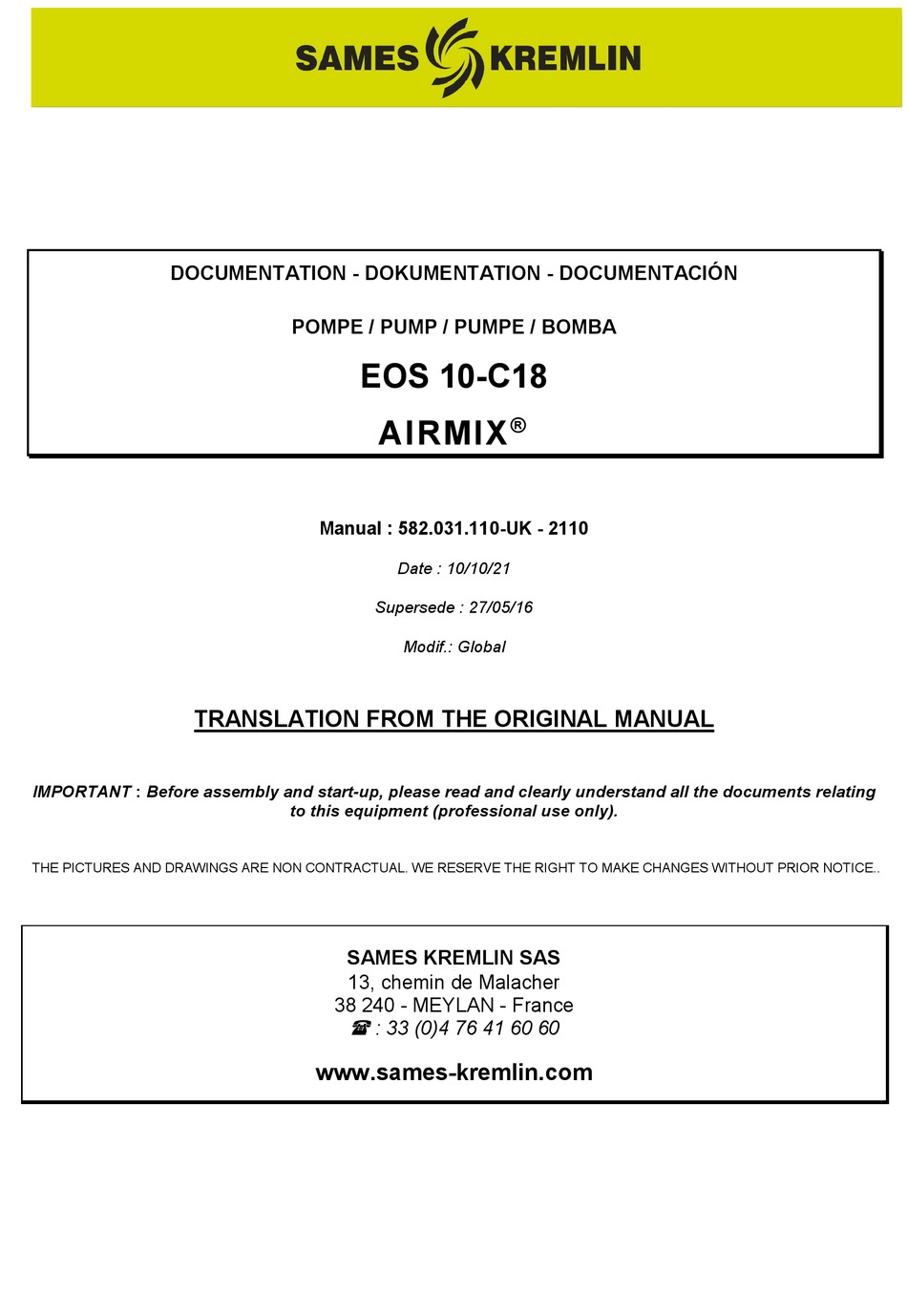

DOCUMENTATION - DOKUMENTATION - DOCUMENTACIÓN
TRANSLATION FROM THE ORIGINAL MANUAL
IMPORTANT : Before assembly and start-up, please read and clearly understand all the documents relating
THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE..

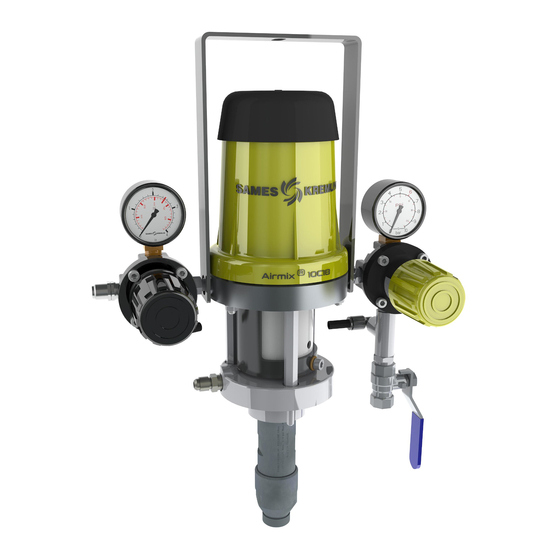

POMPE / PUMP / PUMPE / BOMBA
EOS 10-C18
AIRMIX
Manual : 582.031.110-UK - 2110
Date : 10/10/21
Supersede : 27/05/16
Modif.: Global
to this equipment (professional use only).
SAMES KREMLIN SAS
13, chemin de Malacher
l
38 240 - MEYLAN - France
: 33 (0)4 76 41 60 60
www.sames-kremlin.com
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AIRMIX EOS 10-C18 and is the answer not in the manual?

Questions and answers

Related Manuals for SAMES KREMLIN AIRMIX EOS 10-C18

Summary of Contents for SAMES KREMLIN AIRMIX EOS 10-C18

  • Page 1 IMPORTANT : Before assembly and start-up, please read and clearly understand all the documents relating to this equipment (professional use only). THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE.. SAMES KREMLIN SAS 13, chemin de Malacher 38 240 - MEYLAN - France : 33 (0)4 76 41 60 60 ...
  • Page 2 Proceder à instalação, utilização, manutenção e reparar el equipo con arreglo a las recomendaciones SAMES KREMLIN, nonché le normative nazionali e/o reparação do equipamento de acordo com as de SAMES KREMLIN y a la normativa nacional y/o locali, preconizações de SAMES KREMLIN, bem como local, com outros regulamentos nacionais e/ou locais •...
  • Page 3 EU-MEGFELELŐSÉGI NYILATKOZAT DECLARAŢIA DE CONFORMITATE UE Le fabricant / The manufacturer / Der Hersteller SAMES KREMLIN SAS / El fabricante / Il produttore / O fabricante 13, chemin de Malacher / De fabrikant / Tillverkare / Valmistaja / Producent / Výrobce 38 240 - MEYLAN - FRANCE / Proizvajalec / Výrobca / Gyártó...
  • Page 4 Meylan, den / Meylan, Ranska, / Sporządzono w Meylan, dnia / Meylan, dnia / V Meylanu, / V Meylan dňa / Kelt Meylanban, / Întocmită la Meylan, pe data de 22/10/2021 - 22/10/2021 SAMES KREMLIN - 3 - N° : 578.110.130-2110...

  • Page 5: Installation And Safety Instructions

    (professional use only). THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. SAMES KREMLIN SAS 13, chemin de Malacher 38 240 - MEYLAN - France : 33 (0)4 76 41 60 60 ...

  • Page 6: General Safety Instructions

    WEAR GLASSES WEAR OF PRODUCT WARNING DRAIN VALVE UNDER OBLIGATORY GLOVES IS VAPOR HOT PARTS OR PRESSURE OBLIGATORY HAZARDS AREAS ELECTRICAL WARNING EXPLOSION GROUNDING WARNING WARNING HAZARD FIRE HAZARDS HAZARDS (USER) SERIOUS INJURIES SAMES KREMLIN - 1 - N° : 578.001.130-UK-1804...
  • Page 7 FIRE - EXPLOSION - SPARKS - STATIC ELECTRICITY HAZARDS A poor earth connection, inadequate ventilation, sparks or static electricity can cause an explosion or fire. to avoid these risks when using or servicing SAMES KREMLIN equipment, the following safety procedures must be followed : •...

  • Page 8: Equipment Requirements

    He shall determine the risks of immediate reactions or pursuant to repeated exposures of the staff, SAMES KREMLIN shall not be liable for physical injuries, direct or indirect material damages caused by the use of chemicals. SAMES KREMLIN - 3 - N°...

  • Page 9: Installation Of The Equipment

    • The materials to be painted must also be grounded. All the materials situated in the working area shall be grounded. SAMES KREMLIN - 4 - N° : 578.001.130-UK-1804...
  • Page 10 Please act in accordance with local rules and do not dispose of old equipment with household wastes. A correct disposal of old equipment will help prevent negative consequences for the environment and health. SAMES KREMLIN - 5 - N° : 578.001.130-UK-1804...
  • Page 11 Le non-respect de cette préconisation ne saurait engager notre responsabilité. / The pump is manufactured under the ATEX agreement and can not be modified. SAMES KREMLIN will not be held responsible for any failure to comply with that instruction. / Diese Pumpe hat die ATEX Zulassung, deswegen darf sie nie verändert werden. Bei Nichtbeachtung dieser Anordnung, können wir keine Verantwortung für eine...
  • Page 12 0,5 - 1 bar / 7 2 - 14 5 psi Produit Material Produit Material Produit Material SAMES KREMLIN - 2 - N° 578.186.110-1909...
  • Page 13 Solvant propre Solvant Clean solvent Solvan Solvent Solven 0 bar / psi SAMES KREMLIN - 3 - N° 578.186.110-1909...
  • Page 14 24  30 Voir / Refer to Siehe / Consultar p. 6  22 Vous aurez besoin de / You need Werkzeugaufstellung / Vd necesita Voir / Refer to Siehe / Consultar p.33 SAMES KREMLIN - 4 - N° 578.186.110-1909...
  • Page 15 Loctite 222 (50 ml) Cola freno suave Loctite 222 (50 ml) Couple de serrage : 4 Nm Screwing torque : 4 Nm / 2.95 Ft/Lbs Anziehdrehmoment : 4 Nm Par de apriete : 4 Nm SAMES KREMLIN - 5 - N° 578.186.110-1909...
  • Page 16 SAMES KREMLIN - 6 - N° 578.186.110-1909...
  • Page 17 SAMES KREMLIN - 7 - N° 578.186.110-1909...
  • Page 18 Voir / Refer to Siehe / Consultar p. 18  22 Voir / Refer to Siehe / Consultar p. 12  17 SAMES KREMLIN - 8 - N° 578.186.110-1909...
  • Page 19 SAMES KREMLIN - 9 - N° 578.186.110-1909...
  • Page 20 SAMES KREMLIN - 10 - N° 578.186.110-1909...
  • Page 21 El fabricante no se hace responsable, en caso de daños y / o daños del material, resultantes de la destrucción, la ocultación o la retirada total o parcial de los protectores. SAMES KREMLIN - 11 - N° 578.186.110-1909...
  • Page 22 SAMES KREMLIN - 12 - N° 578.186.110-1909...
  • Page 23 SAMES KREMLIN - 13 - N° 578.186.110-1909...
  • Page 24 SAMES KREMLIN - 14 - N° 578.186.110-1909...
  • Page 25 SAMES KREMLIN - 15 - N° 578.186.110-1909...
  • Page 26 SAMES KREMLIN - 16 - N° 578.186.110-1909...
  • Page 27 El fabricante no se hace responsable, en caso de daños y / o daños del material, resultantes de la destrucción, la ocultación o la retirada total o parcial de los protectores. SAMES KREMLIN - 17 - N° 578.186.110-1909...
  • Page 28 SAMES KREMLIN - 18 - N° 578.186.110-1909...
  • Page 29 Ø 4 SAMES KREMLIN - 19 - N° 578.186.110-1909...
  • Page 30 SAMES KREMLIN - 20 - N° 578.186.110-1909...
  • Page 31 SAMES KREMLIN - 21 - N° 578.186.110-1909...
  • Page 32 El fabricante no se hace responsable, en caso de daños y / o daños del material, resultantes de la destrucción, la ocultación o la retirada total o parcial de los protectores. SAMES KREMLIN - 22 - N° 578.186.110-1909...
  • Page 33 Voir / Refer to Voir / Refer to Voir / Refer to Siehe / Consultar Siehe / Consultar Siehe / Consultar p. 23  27 p. 28  30 p. 31  32 SAMES KREMLIN - 23 - N° 578.186.110-1909...
  • Page 34     SAMES KREMLIN - 24 - N° 578.186.110-1909...
  • Page 35 SAMES KREMLIN - 25 - N° 578.186.110-1909...
  • Page 36 SAMES KREMLIN - 26 - N° 578.186.110-1909...
  • Page 37 SAMES KREMLIN - 27 - N° 578.186.110-1909...
  • Page 38     SAMES KREMLIN - 28 - N° 578.186.110-1909...
  • Page 39 SAMES KREMLIN - 29 - N° 578.186.110-1909...
  • Page 40 SAMES KREMLIN - 30 - N° 578.186.110-1909...
  • Page 41   SAMES KREMLIN - 31 - N° 578.186.110-1909...
  • Page 42 SAMES KREMLIN - 32 - N° 578.186.110-1909...
  • Page 43 SAMES KREMLIN - 33 - N° 578.186.110-1909...
  • Page 44 ASSEMBLAGE ASSEMBLY MONTAGE MONTAJE Trépied / Tripod / Dreibein / Trípode SAMES KREMLIN - 1 - N° 578.187.110-1910...
  • Page 45 SAMES KREMLIN - 2 - N° 578.187.110-1910...
  • Page 46 120° 120° SAMES KREMLIN - 3 - N° 578.187.110-1910...
  • Page 47 ASSEMBLAGE ASSEMBLY MONTAGE MONTAJE Chariot / Cart Fahrgestell / Carretilla Poids chariot / Cart weight / Gewicht fahrgestell / Peso carretilla/: 5 kg / 11 lbs Graisse (vaseline) / Pure vaseline SAMES KREMLIN - 1 - N° 578.064.110-1901...
  • Page 48 SAMES KREMLIN - 2 - N° 578.064.110-1901...
  • Page 49 Doc. 573.421.050 Modif. / Änderung : Pièces de rechange #151 665 655 supprimé / canceled / Spare parts list Date/Datum/Fecha :07/12/2020 annuliert / suprimido Ersatzteilliste #144 855 700  NC / NS Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 13/11/19 POMPE MURALE, WALL MOUNTED PUMP, modèle 10-C18 model 10-C18...
  • Page 50 Pistole Xcite,120 bar Pistola Xcite 120 bar sans raccord tournant / 1740 psi without swivel ohne Drehgelenk sin racor giratorio (voir Doc. 573.512.050) fitting (refer to Doc. (siehe Dok. 573.512.050) (consultar Doc. 573.512.050) 573.512.050) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 51 Suction rod Ø 10 Saugschlauch Ø 10 mit Caña de aspiración Ø 10 inox avec crépine (stainless steel) with Siebkorb (inox) con piña strainer  Strainer  Siebkorb  Piña 11 151 665 645  Crépine SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 52 *12 134 506 094 Buse Airmix® 06-094 Airmix® tip, Airmix® Düse 06-094 Boquilla Airmix®, (avec porte-insert inox) model 06-094 (with (mit Edelstahlfassung) tipo 06-094 (con porta in- stainless steel insert- serto de inox) holder) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 53 - 129 270 087 Enveloppe de protection Protective hose sleeving Schutzhülle für Schlauch Funda de protección de des tuyaux (lg. 10 m) (10 m / 33 ft long) (Länge 10 m) las tuberías (10 m de largo) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 54 (10 m / 33 ft long) (Länge 10 m) las tuberías (10 m de largo) 13 151 665 705 Trépied Tripod (refer to Doc. Dreibein (siehe Dok. Trípode (consultar Doc. (voir Doc. 578.187.110) 578.187.110) 578.187.110) 578.187.110) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 55 573.512.050) *12 134 506 094 Buse Airmix® 06-094 Airmix® tip, model 06-094 Airmix® Düse 06-094 Boquilla Airmix®, (avec porte-insert inox) (with stainless steel (mit Edelstahlfassung) tipo 06-094 (con porta in- insert-holder) serto de inox) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 56 Straight suction rod Ø 16 Starres Saugrohr Ø 16 Caña de aspiración recta Ø 16 inox (stainless steel) (Edelstahl) Ø 16 (inox) 17 149 596 052  Crépine  Strainer  Siebkorb  Piña SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 57 573.512.050) *12 134 506 094 Buse Airmix® 06-094 Airmix® tip, model 06-094 Airmix® Düse 06-094 Boquilla Airmix®, (avec porte-insert inox) (with stainless steel (mit Edelstahlfassung) tipo 06-094 (con porta in- insert-holder) serto de inox) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 58 (Length : 0.44m) kürztem Saugrohr Ø 16 Ø 16 (Longitud : 0,44m) (Lg. 0,44m) (Rohrlänge: 0,44m) 17 149 596 052  Crépine Ø 16  Strainer Ø 16  Siebkorb Ø 16  Piña Ø 16 SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 59 9c 135 740 200 Pistolet SFlow 275 bar SFlow gun, model 275 Pistole SFlow, 275 bar Pistola SFlow 275 bar (voir Doc. 573.459.050) bar / 3989 psi (refer to (siehe Dok. 573.459.050) (consultar Doc. Doc. 573.459.050) 573.459.050) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 60 573.505.050) *12 134 506 094 Buse Airmix® 06-094 Airmix® tip, model 06-094 Airmix® Düse 06-094 Boquilla Airmix®, (avec porte-insert inox) (with stainless steel (mit Edelstahlfassung) tipo 06-094 (con porta in- insert-holder) serto de inox) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 61 Suction rod Ø 10 Saugschlauch Ø 10 mit Caña de aspiración Ø 10 inox avec crépine (stainless steel) with Siebkorb (inox) con piña strainer  Strainer  Siebkorb  Piña 11 151 665 645  Crépine SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 62 573.505.050) *12 134 506 094 Buse Airmix® 06-094 Airmix® tip, model 06-094 Airmix® Düse 06-094 Boquilla Airmix®, (avec porte-insert inox) (with stainless steel (mit Edelstahlfassung) tipo 06-094 (con porta in- insert-holder) serto de inox) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 63 Suction rod Ø 10 Saugschlauch Ø 10 mit Caña de aspiración Ø 10 inox avec crépine (stainless steel) with Siebkorb (inox) con piña strainer  Strainer  Siebkorb  Piña 11 151 665 645  Crépine SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 64 20 149 596 080 Canne d'aspiration Short suction rod Ø 16 Saugschlauch mit ver- Caña de aspiración corta raccourcie Ø 16 (Length : 0.44m) kürztem Saugrohr Ø 16 Ø 16 (Longitud : 0,44m) (Lg. 0,44m) (Rohrlänge: 0,44m) SAMES KREMLIN Doc. / Dok. 573.421.050...
  • Page 65 N S : Denotes parts are not serviceable. * Bezeichnete Teile sind empfohlene Ersatzteile. N S : Bezeichnete Teile gibt es nicht einzeln, sondern nur ko- * Piezas de mantenimiento preventivas. mplett . N S : no suministrado. SAMES KREMLIN Doc. / Dok. 573.421.050...

  • Page 66: Air Motor

    Doc. 573.419.050 Modif. / Änderung : Mise à jour Pièces de rechange / Update / Aktualisierung Spare parts list Date/Datum/Fecha : 19/09/19 / Actualización Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 26/06/13 MOTEUR A AIR, AIR MOTOR, modèle 340-2 model 340-2 LUFTMOTOR, MOTOR DE AIRE, 144.855.600...
  • Page 67 N S : Denotes parts are not serviceable. * Bezeichnete Teile sind empfohlene Ersatzteile. N S : Bezeichnete Teile gibt es nicht einzeln, sondern nur ko- * Piezas de mantenimiento preventivas. mplett . N S : no suministrado. SAMES KREMLIN Doc. / Dok. 573.419.050...
  • Page 68 Doc. 573.420.050 Modif. / Änderung : Pièces de rechange + Ind. / Pos. 23 + option / opción Spare parts list Date/Datum/Fecha : 19/09/13 Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 26/06/13 HYDRAULIQUE, FLUID SECTION, modèle EOS C-18 model EOS C-18 (Entrée produit M 26x125) (Material inlet M 26x125) HYDRAULIKTEIL,...
  • Page 69 (Entrada producto M 26x125) HYDRAULIQUE, FLUID SECTION, modèle EOS C-18 model EOS C-18 (Entrée produit F 1/2) (Material inlet F 1/2) HYDRAULIKTEIL, HIDRÁULICA, 144.855.750 Modell EOS C-18 tipo EOS C-18 (Materialeingang IG 1/2) (Entrada producto H 1/2) SAMES KREMLIN Doc. / Dok. 573.420.050...
  • Page 70 Eje de pistón producto * 144 855 799 Pochette de Servicing kit Wartungssatz Bolsa de reparación maintenance (ind. 6, 9, 13, 14) (Pos. 6, 9, 13, 14) (índ. 6, 9, 13, 14) (rep. 6, 9, 13, 14) SAMES KREMLIN Doc. / Dok. 573.420.050...
  • Page 71 N S : Denotes parts are not serviceable. * Bezeichnete Teile sind empfohlene Ersatzteile. N S : Bezeichnete Teile gibt es nicht einzeln, sondern nur ko- * Piezas de mantenimiento preventivas. mplett . N S : no suministrado. SAMES KREMLIN Doc. / Dok. 573.420.050...

  • Page 72: Air Supply

    Doc. 573.418.050 Modif. / Änderung : Mise à jour Pièces de rechange / Update / Aktualisierung Spare parts list Date/Datum/Fecha : 14/05/18 / Actualización Ersatzteilliste Annule/Cancels/ Piezas de repuesto Ersetzt/Anula : 04/11/16 EQUIPEMENT D'AIR AIR SUPPLY LUFTAUSRÜSTUNG EQUIPO DE AIRE 151.665.655 P1 = 6 bar max.
  • Page 73 (5 m de largo) (length : 5 m / 16.40 ft) * Pièces de maintenance préconisées. * Preceding the index number denotes a suggested spare part. * Bezeichnete Teile sind empfohlene Ersatzteile. * Piezas de mantenimiento preventivas. SAMES KREMLIN Doc. / Dok. 573.418.050...
  • Page 74 (professional use only). THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. SAMES KREMLIN SAS 13, chemin de Malacher 38 240 - MEYLAN - France : 33 (0)4 76 41 60 60 ...

  • Page 75: Spray Gun

    Comply with the usual instructions of spray gun servicing (refer to spray gun manual).  FILTER If the pump is equipped with a filter at the fluid outlet, comply with the usual instructions of filter servicing (refer to filter manual). SAMES KREMLIN - 1 - N° : 578.012.120-UK-1909...
  • Page 76 (professional use only). THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. SAMES KREMLIN SAS 13, chemin de Malacher 38 240 - MEYLAN - France : 33 (0)4 76 41 60 60 ...
  • Page 77 On Intensive™ pump, the lubricant into the cup is Check the upper packing (tighten the cup or fastly coloured and its level increases change seals if it is necessary). Spraying trouble Refer to spray gun manual. SAMES KREMLIN - 1 - N° : 578.011.110-UK-1909...
  • Page 78 (professional use only). THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. SAMES KREMLIN SAS 13, chemin de Malacher 38 240 - MEYLAN - France : 33 (0)4 76 41 60 60 ...

  • Page 79: Operating Principle

    (G). • To adjust the fluid flow rate, turn the pantone 382 colour knob (D) - (Gauge E). • To adjust the spray air, turn the black knob (F) - (Gauge G). SAMES KREMLIN - 1 - N° : 578.004.120-UK-1909...
  • Page 80 HP fluid section Gauge AIRMIX gun or airspray gun ‘GUN AIR’ regulator T lubricant (125 ml / 4.4 oz) Gauge Air inlet valve Ground (For specific installation, please contact your SAMES KREMLIN representative). SAMES KREMLIN - 2 - N° : 578.004.120-UK-1909...
  • Page 81  CAUTION: The pumps can be supplied in gravity but not in filling. Interconnect the pump fluid inlet with the gravity cup supply hose and start up the pump as previously indicated. SAMES KREMLIN - 3 - N° : 578.004.120-UK-1909...

  • Page 82: Short Duration Shutdown

    AIRMIX pump : A relief-valve (setting : 6.5 bar / 94 psi) is fitted on the pump air motor - thus protecting this one from an overpressure which could damage it. SAMES KREMLIN - 4 - N° : 578.004.120-UK-1909...
  • Page 83 (professional use only). THE PICTURES AND DRAWINGS ARE NON CONTRACTUAL. WE RESERVE THE RIGHT TO MAKE CHANGES WITHOUT PRIOR NOTICE. SAMES KREMLIN SAS 13, chemin de Malacher 38 240 - MEYLAN - France : 33 (0)4 76 41 60 60 ...
  • Page 84 - fluid with a viscosity lower than 30 Cps - or solvents with a motor air pressure lower than 2,5 bar / 36.26 psi - or fluids very hard to flush, like PU) SAMES KREMLIN - 1 - N° : 578.079.120-UK-1910...
  • Page 85 ∅ 4,8 mm int.  DIMENSIONS Ind. Inch. Ind. Inch. Ind. Inch. Ind. Inch. 278.5 Ø 120 Ø 4.7 392.5 15.45 2.36 2.56 Ø 7X15 0.27x0.6 Ø 7 Ø 0.27 0.35 2.83 SAMES KREMLIN - 2 - N° : 578.079.120-UK-1910...
  • Page 86 Wall mounted bracket ABOVE VIEW VUE DE DESSUS FRONT VIEW VUE DE FACE SAMES KREMLIN - 3 - N° : 578.079.120-UK-1910...

  • Page 87: Installation

    Pression prod max. / Max. fluid Maximum fluid pressure at the outlet of the pump pressure Numéro de série / Serial number Number given by SAMES KREMLIN. The four first numbers indicate the manufacturing year.  TEMPERATURE CLASS Temperature class Maximum surface temperature 127.7°...

  • Page 88: Installation Diagram

    Non explosive area The 1 m / 39.37" distance indicated in the diagram is given for information purposes only and hold harmless to SAMES KREMLIN. The user is responsible for the extraction and conditioning of the painting area where the equipment is used, for working conditions conditions (refer to EN 60079-10 standard).
