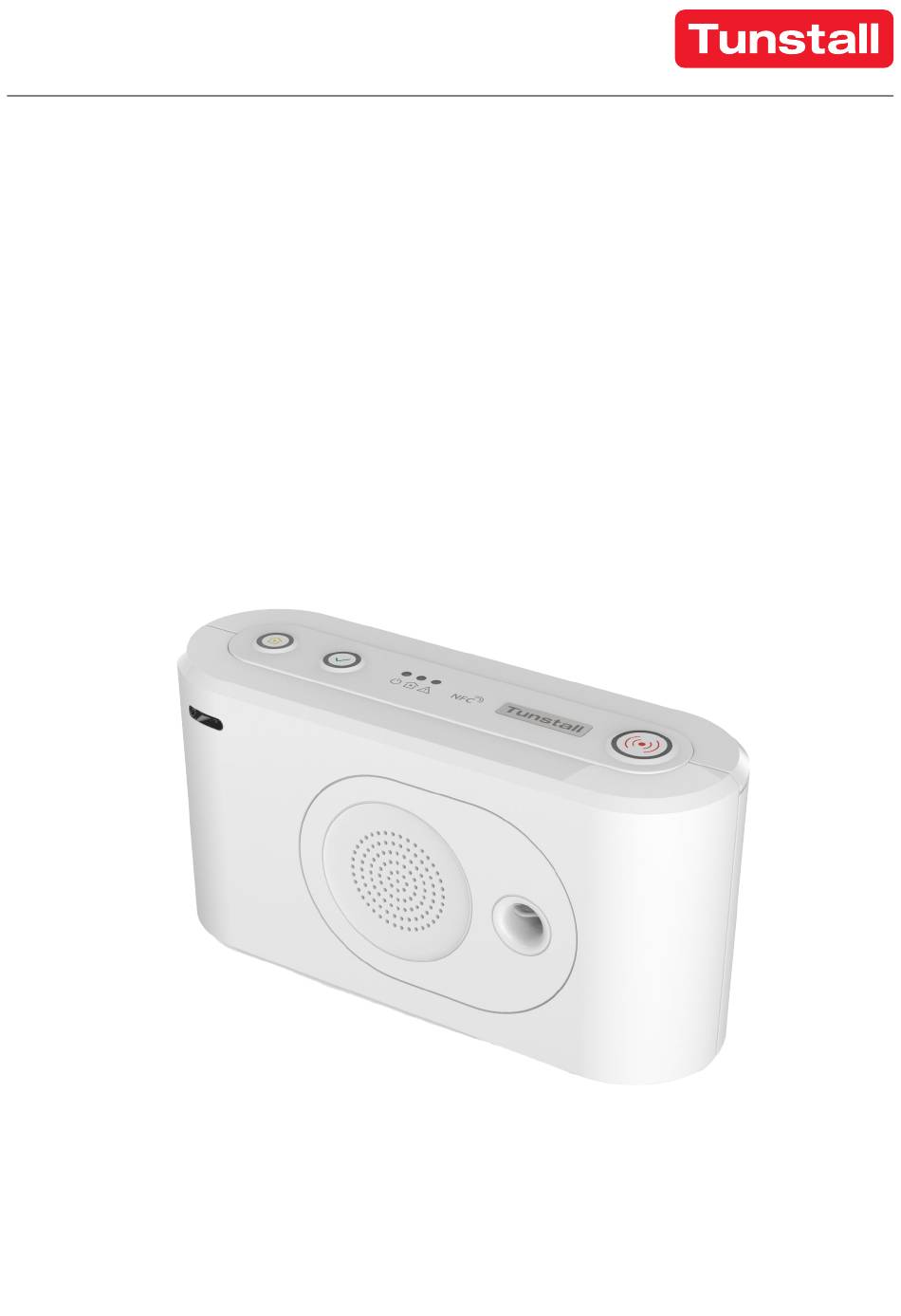

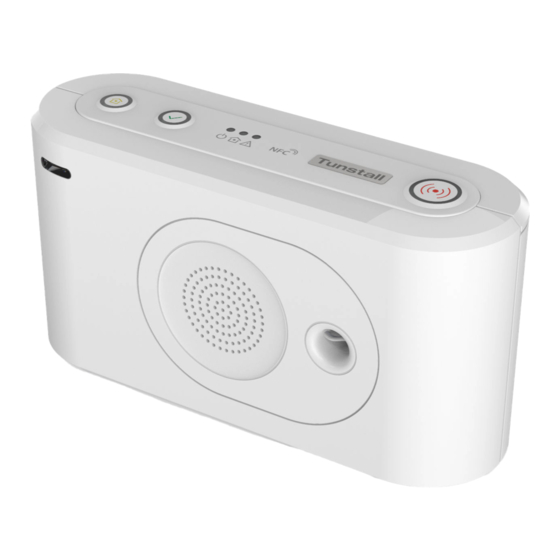

- Page 1 Lifeline Digital Art. 022-25-9xx Quickstart guide English Doc 346 80 21-59 Version 1. Revision 09.2021...
-
Page 2: Table Of Contents
Table of Contents 1. Lifeline Digital Quickstart guide ........................4 1.1. Overview .............................. 4 2. Install Lifeline Digital ............................ 5 3. Connect a peripheral ........................... 7 4. Lifeline Edith ............................... 8 4.1. Connect Lifeline Digital to Lifeline Edith ....................8 4.2. -
Page 3: Lifeline Digital Quickstart Guide
1. Lifeline Digital Quickstart guide This quickstart guide describes how to install Lifeline Digital and configure common settings using either Lifeline Edith or Tunstall's Device Management Platform (DMP). For more information, refer to Lifeline Digital installation guide. 1.1. Overview 15 16 1. -
Page 4: Install Lifeline Digital
(8). For cellular connectivity, insert the SIM card provided Set the ON/OFF switch to 1 (ON) to power up the by your supplier or Tunstall. device (9). If the device is delivered with a pre-installed SIM The green and yellow LED indicators starts to flash card, skip this step. - Page 5 Release all buttons when the device emits a ris- ing sound signal and announces "Programming mode". If the device is registered to Tunstall's Device Man- The LED indicators start chaser sequence and agement Platform (DMP), you can manually connect the button LEDs flash in unison to indicate that to DMP to download configuration and firmware up- the programming mode is enabled.
-
Page 6: Connect A Peripheral
3. Connect a peripheral Press and hold the green Cancel button (1) then • Continue to hold the button until the device an- press and hold the red Alarm button (2) and the yel- nounces the number of the radio sensor position low Extra button (3). -
Page 7: Lifeline Edith
• An Opto Iso cable • A list of all values and parameter settings to be configured. Do not change any settings or values unless advised by your supplier or Tunstall • Optionally, a configuration file (.cfw file) with pre-configured settings 4.1. -
Page 8: Configure Common Settings
"+46[...]" or "0046[...]". Select a communication protocol in the Protocol drop-down list: Enter the number of redial attempts to made in the Retries field. • Tunstall IPACS Select connectivity methods for the device: • SCAIP • Homephone-SIP CAUTION • EN50134-9 Only select connectivity methods iii. -
Page 9: Disconnect Lifeline Digital From Lifeline Edith
4.3. Disconnect Lifeline Digital from Lifeline Edith Click Disconnect in the sidebar menu, Connect the device to mains power. Disconnect the Opto Iso cable from the device. Switch on the device. Switch off the device. -
Page 10: Programming Mode Diagram
Appendix A. Programming mode diagram Standby mode Programming mode - Local configuration menu Adjust speaker volume Radio sensor Radio sensor Auto pairing mode Adjust LED intensity Radio sensor Manual pairing mode Radio sensor Radio sensor Radio test mode Test cellular signal strength Cellular status Cellular error code Check SIM status... - Page 11 © 2021 Tunstall Group Ltd. ® Tunstall is a registered trademark. Tunstall declare that this radio equipment is in compliance with Directive 2014/53/EU. The full text of the EU declara- tion of conformity is available at the following address: https://www.tunstall.com/lifeline-digital-documentation Radio power: The transmitted power in the actual frequency band is less than 1mW e.r.p...
