General Information
PLEASE READ THROUGH BEFORE BEGINNING ASSEMBLY.
IMPORTANT: Check boxes for Contents Listed
Check inside of parts as some parts are packaged
inside of others
In the event of missing, damaged or defective parts
please call our customer service dept. at 1-877-258-6020
or e-mail sales@dura-trel.com
When assembling components, place on a clean, flat
non-abrasive surface to avoid scratches
Tools Required
... Battery or Electric Drill
... Tape Measure
... Hammer or Rubber Mallet
... Shovel or Post Hole Digger
... PVC, Super, or Crazy Glue
with #2 phillips bit
(recommended)
(recommended)

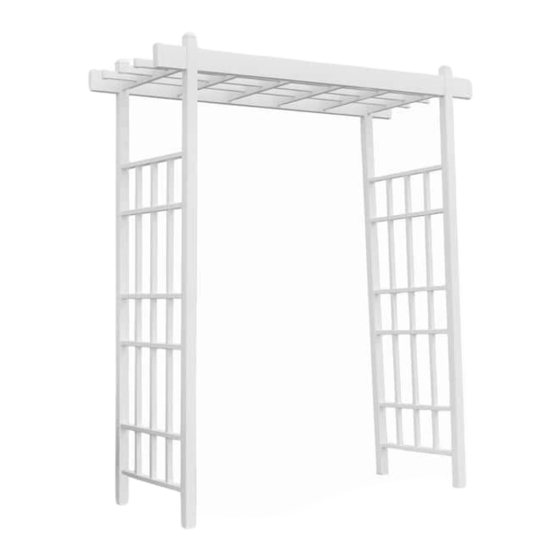

Bakersfield Arbor
11197
Model#
Part #
1
2" sq. x 84" Left Post
2
2" sq. x 84" Right Post
3
⅞ x 1½ x 27½" Bottom Cross Rail
4
⅞ x 1½ x 27½" Center Cross Rail
5
1 x 1 x 60" Vertical Rail
6
1½ x 4 x 72" Arbor Top Rail
7
⅞ x 3 x 26¼" Arbor Top Cross Rail
8
⅞ x 1½ x 72" Overhead Rail
9
Hardware Bag
4" Arbor Top End Cap
2" sq." Post Cap
⅞ x 1½" End Cap
¾" Painted Screw
Super Glue Tube
10
Arbor Ground Anchor Kit
16" Steel Ground Anchor (L-Shaped)
#8 - 1" Painted Self Tapping Screw
150 Birch Road
P.O. Box 122
Sheboygan Falls, WI 53085
Description
(includes:)
(includes:)
1-877-258-6020
www.dura-trel.com
sales@dura-trel.com
Qty
2
2
4
8
6
2
6
3
1
4
4
6
24
1
1
4
8
1
Advertisement
Table of Contents
Related Manuals for Dura Trel Bakersfield Arbor 11197
Summary of Contents for Dura Trel Bakersfield Arbor 11197
- Page 1 Bakersfield Arbor 11197 Model# Assembly Instructions Part # Description 2" sq. x 84" Left Post max 5 x 3.5 2" sq. x 84" Right Post ⅞ x 1½ x 27½" Bottom Cross Rail ⅞ x 1½ x 27½" Center Cross Rail 1 x 1 x 60"...
- Page 2 Warranty Statement 20 Year Guarantee Please call manufacturer direct with questions concerning missing or defective parts at Toll Free: 877-258-6020. Dura-trel, Inc. products are warranted to be free from manufacturing defects resulting in delaminating, peeling, flaking, corroding, cracking, crazing, or extreme amounts of fading or bleaching causing the PVC to change to its natural color for a period of 20 years from the date of purchase.
- Page 3 www.dura-trel.com P.O. Box 122 sales@dura-trel.com Sheboygan Falls, WI 53085...
- Page 4 Lay out one right post (part 2). Starting at bottom, insert one top/bottom cross rail (part 3) and four center cross rails (part 4). Insert three vertical rails (part 5) through center rails and into bottom rail. Insert second top/bottom rail (part 3) into post and slide vertical rails into top rail.
- Page 5 Using ¾" screws, screw together BOTTOM 3 spots of arbor panel. DO NOT screw together top spot of each post. Be sure that all parts are fully inserted into posts before securing. REPEAT steps 1-5 to Insert ends of arbor top rails (part 6) through holes at top of each post of arbor panels.
- Page 6 Slide three overhead rails (part 8) through holes each top cross rail. Overhead rails should stick out equally on both sides Using remaining ¾" screws, screw remaining arbor panel spots and screw arbor panels to arbor top rails. Using super glue tube, glue four arbor top end caps onto ends of arbor top rails.
