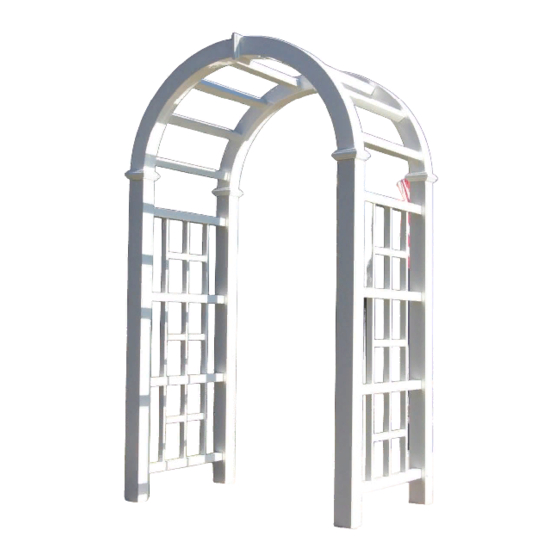

Dura Trel Hartford Arbor Manual

Lay out one outside vertical rail (part 5). Insert
one 16" rail (part 7) into center hole. Insert free
1
end of 16" rail through center hole of one
middle vertical rail (part 6). Insert free end of
the 16" rail into center hole of another outside
vertical rail (part 5).
On each end of assembly, slide vertical rails
through one center cross rail
2
(part 4). Slide center cross rails all the way to
16" rail.
On each end of assembly, insert one 16" rail
through middle vertical rail and into outside
3
vertical rails. The vertical rails will need to be
flexed to slide 16" into open holes.
Slide center cross rails away from middle 16"
4
rail. Center cross rails should be centered
between 16" rails
