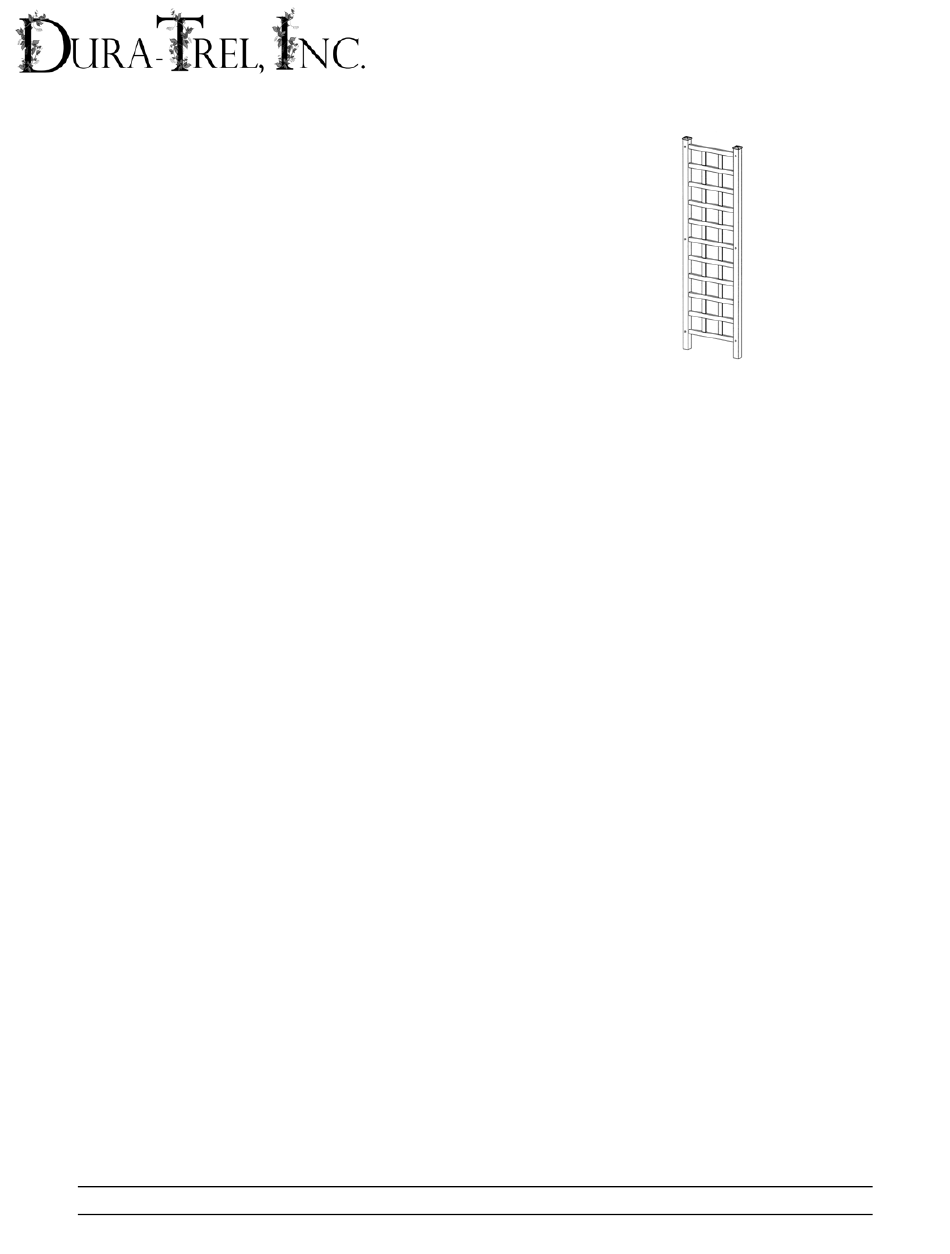

Dura Trel 11177M Providence Trellis Assembly Instructions

#11177M P
t
rovidence Rellis
ASSEMBLY INSTRUCTIONS
TOOLS NEEDED
Drill with #2 Phillips Bit (recommended) or
Phillips Screwdriver

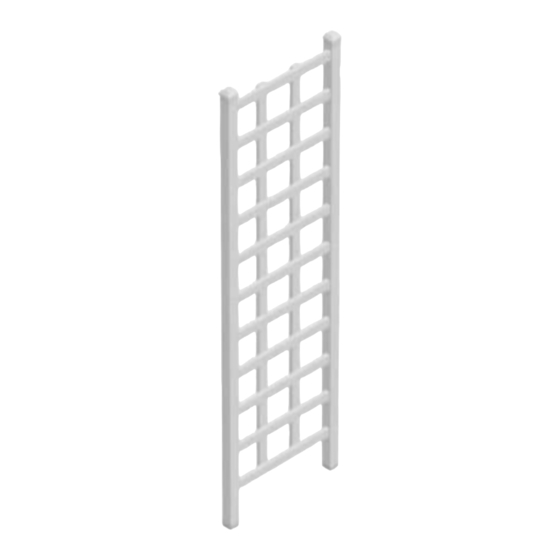

TRELLS ASSEMBLY
(Refer to Drawing 1)
On clean flat surface lay one 2 x 2 x 74" left post and one 2 x 2 x 74" right post with pilot holes for
screws facing up and the routed holes for ⅞ x 1½ x 22" cross rails facing inward. Starting at the
bottom insert one of the top/bottom rails in the first routed slot. Continue by inserting nine of the
⅞ x 1½ x 22" center rails. Slide the other post onto the opposite end of the cross rails (do not
fasten at this time). Insert the ¼ x 1½ x 66" vertical slats through the ⅞ x 1½ x 22" cross rails.
When both vertical slats are in place, gently spread the end of the panel and press the other
top/bottom rail onto the vertical slats. Firmly press cross rails between posts to ensure that the
cross rails are completely inserted into each post. Fasten the posts to the cross rails using the 1¼"
screws, snap the screw caps over the screw heads. Apply glue to inside edges of the 2 x 2" post
caps for trellis posts.
If you encounter missing or defective parts, please contact manufacturer direct at
toll free # below.
Dura-Trel, Inc. ~ PO Box 122, Sheboygan Falls, WI 53085 ~ Toll Free 877-258-6020
