Design Guide
Revision 1.12
1998-08-12
6.2 Connectors
6.2.1 Application Connector
To achieve interchangability between different ANYBUS DATATRANSFER modules, the application
connector is placed in accordance the following specification on all modules:

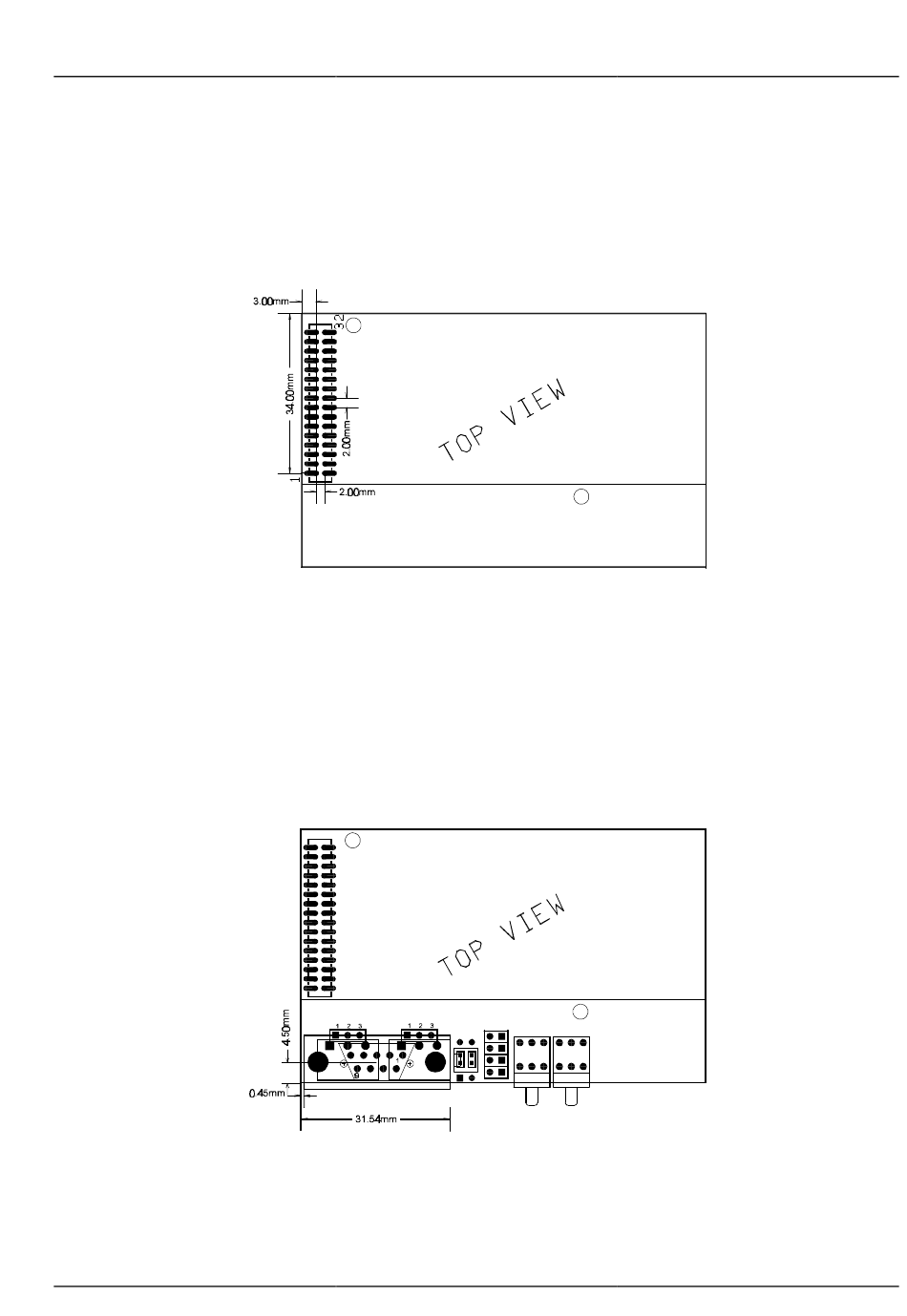

Figure 10. Application connector
For more information regarding the connectors, please see Appendix A.
6.2.2 Fieldbus Connector
Only the first fieldbus D-SUB connector is placed in the same position on all ANYBUS DATATRANSFER
modules. The placement of the other fieldbus specific components are unique for each ANYBUS module.
Figure 11. Fieldbus connector
HMS F
S
AB
Page 25 (35)
IELDBUS
YSTEMS
