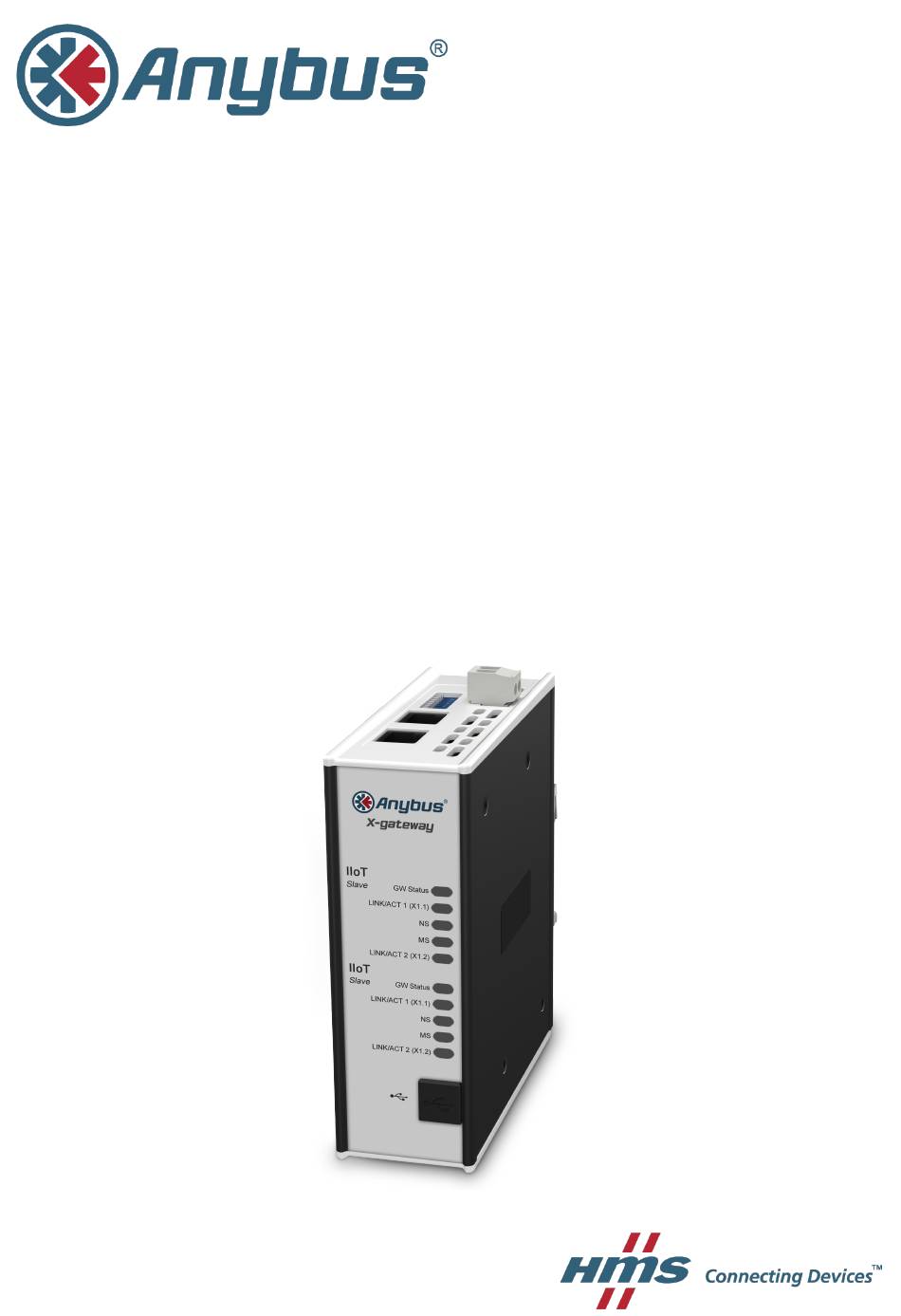

- Page 1 IIoT Anybus ® X-gateway ™ Network Interface STARTUP GUIDE SP2443 1.0 en-US ENGLISH...
-
Page 2: Important User Information
The data and illustrations found in this document are not binding. We, HMS Industrial Networks AB, reserve the right to modify our products in line with our policy of continuous product development. The information in this document is subject to change without notice and should not be considered as a commitment by HMS Industrial Networks AB. -
Page 3: About This Document

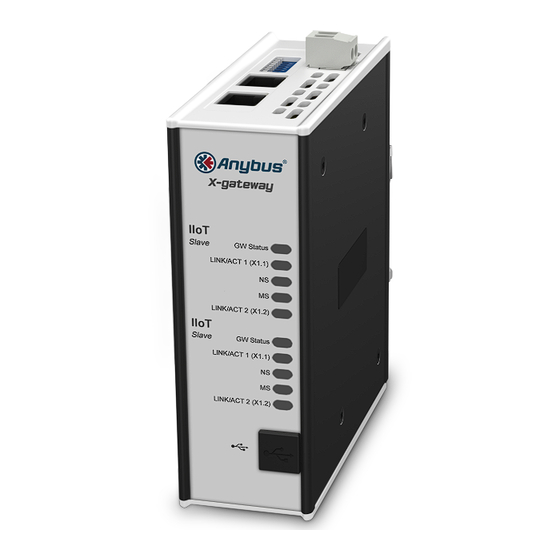

Preface 3 (8) Preface About This Document This document describes how to install the Anybus X-gateway IIoT Interface. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. Document Conventions The following formatting conventions are used in this document to indicate safety... - Page 4 Description 4 (8) Description Connectors This product contains parts that can be damaged by electrostatic discharge (ESD). Use ESD prevention measures to avoid damage. Fig. 1 IIoT interface Ethernet Connectors The IIoT interface contains a dual port Ethernet switch with RJ45 type connectors.
-
Page 5: Led Indicators
Description 5 (8) LED Indicators Fig. 2 IIoT interface LED indicators The GW Status LED indicates operation status for the X-gateway. The other LEDs indicate network communication and status for the IIoT interface. Indication Meaning No power Green Gateway running GW Status Communication error Red, flashing... -
Page 6: Installation Overview
The Anybus Configuration Manager and IPconfig applications can be downloaded from www.anybus.com/support. Basic installation steps Connect the Anybus X-gateway IIoT Interface to the Ethernet network. Connect a computer to the USB connector on the X-gateway. Power on the X-gateway. Use IPconfig to configure the TCP/IP settings for the IIoT interface. - Page 7 This page intentionally left blank...
- Page 8 © 2018 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se SP2443 1.0 en-US / 2018-10-29 / 10374...
