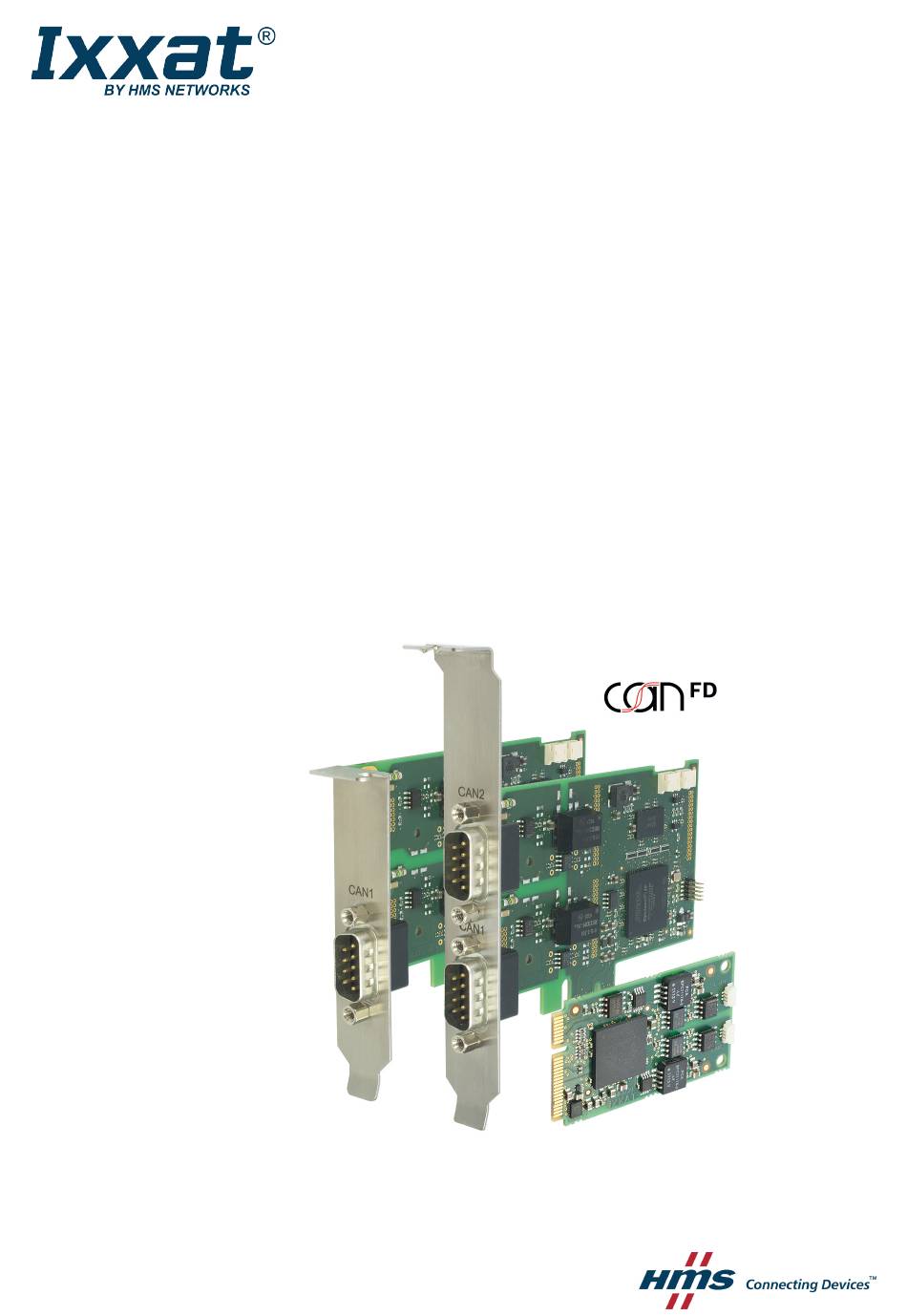

- Page 1 P P C C C C A A N N I I n n t t e e r r f f a a c c e e C C A A N N - - I I B B S S e e r r i i e e s s f f o o r r P P C C I I / / P P C C I I e e x x p p r r e e s s s s USER MANUAL 4.01.0230.20000 3.2 en-US ENGLISH...
- Page 2 Important User Information Liability Every care has been taken in the preparation of this document. Please inform HMS Industrial Networks of any inaccuracies or omissions. The data and illustrations found in this document are not binding. We, HMS Industrial Networks, reserve the right to modify our products in line with our policy of continuous product development. The information in this document is subject to change without notice and should not be considered as a commitment by HMS Industrial Networks.
-
Page 3: Table Of Contents
Table of Contents Page User Guide ........................... 3 Target Group........................3 Related Documents ......................3 Document History ......................3 Trademark Information .....................3 Conventions........................4 Safety Instructions ......................5 Information on EMC ......................5 General Safety Instructions ....................5 Intended Use........................5 Scope of Delivery ........................ 5 Product Description ......................6 CAN-IB100/200/PCIe and CAN-IB300/400/PCI ...............6 CAN-IB500/600/PCIe ......................7 CAN-IB120/PCIe Mini and CAN-IB520/PCIe Mini ..............8... - Page 4 Support/Return Hardware....................21 Support ........................21 Return Hardware ......................21 10 Disposal..........................21 Regulatory Compliance ..................... 23 EMC Compliance (CE) ..................... 23 FCC Compliance Statement ....................23 Disposal and recycling..................... 24 4.01.0230.20000 3.2 en-US PC CAN Interface User Manual...
-
Page 5: User Guide
March 2019 Layout changes Trademark Information Ixxat ® is a registered trademark of HMS Industrial Networks. All other trademarks mentioned in this document are the property of their respective holders. 4.01.0230.20000 3.2 en-US PC CAN Interface User Manual... -
Page 6: Conventions
This is a cross-reference within this document: Conventions, p. 4 This is an external link (URL): www.hms-networks.com Safety advice is structured as follows: Cause of the hazard! Consequences of not taking remediate action. -
Page 7: Safety Instructions
Protect product from fire. ► ► Do not paint the product. ► Do not modify or disassemble the product. Service must be carried out by HMS Industrial Networks. ► Store products in dry and dust-free place. Intended Use The interfaces are used to connect computer systems to CAN and LIN networks. They are intended for the installation in computer systems with closed housings. -
Page 8: Product Description
Product Description 6 (26) Product Description PCIe interfaces (apart from PCIe Mini) are available as standard and low-profile version. PCI interfaces are available as standard version. The low-profile version is expandable with a D-Sub 9 connector on a second slot bracket. Fig. -
Page 9: Can-Ib500/600/Pcie

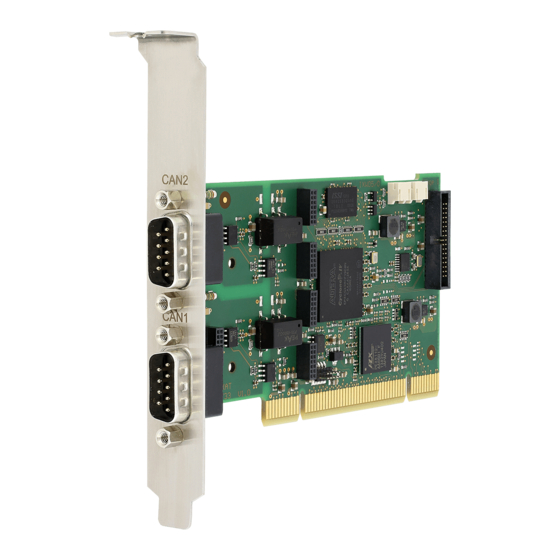

Product Description 7 (26) CAN-IB300/400/PCI • PCI CAN Interface • 5 V and 3.3 V compatible • CAN-IB300/PCI, passive interface • CAN-IB400/PCI, active interface • PCI interface compliant with PCI local bus specification Rev. 2.2 • galvanically isolated CAN-IB500/600/PCIe Common Features •... -
Page 10: Can-Ib120/Pcie Mini And Can-Ib520/Pcie Mini
Product Description 8 (26) CAN-IB120/PCIe Mini and CAN-IB520/PCIe Mini Common features • Single lane (x1) PCI express card • PC interface compliant with PCI express base specification, revision 1.1 • form factor F2: Full-mini with bottom-side keep outs • dimensions according to PCI express Mini Card electromechanical specification, revision 1.2 •... -
Page 11: Installation
Installation 9 (26) Installation Installing the Software For the operation of the interface a driver is needed. Windows ► Install the VCI driver (see Installation Guide VCI Driver). Linux and Real-Time Operating Systems ► Observe information about supported operating systems and interfaces on www.ixxat.com. Installing the Hardware Risk of ESD damages caused by improper handling! Use ESD protective measures to avoid equipment damage. -
Page 12: Connections
Connections 10 (26) Connections Overview Fig. 2 Connections CAN 1 CAN 2 (exclusively in standard version) Fieldbus expansion connector channel 2 (option) Fieldbus expansion connector channel 1 (option) PCI/PCIe connector Expansion board connector (option) CAN Bus The bus coupling can optionally be galvanically isolated. With galvanic isolation the shield of the CAN connector is connected to CAN ground through a 1 MΩ... -
Page 13: Expansions
Connections 11 (26) Low-Profile Version Fig. 3 Low-profile version In the low-profile version, only the D-Sub 9 connector of CAN 1 is implemented. It is possible to output the signals of CAN 2 to a second slot bracket. ► To connect the second slot bracket to the interface, plug the ribbon cable in connector (1) on the interface and in the connector on the second slot bracket. -
Page 14: Pcie Mini
Connections 12 (26) PCIe Mini Fig. 4 Connections PCIe Mini CAN 1, Pin 1 CAN 2, Pin 1 PCIe Mini card connector Pin Allocation CAN Connector Pin no. Signal Color CAN-High CAN-Low Yellow CAN GND Black The CAN connector type is SM03B-SURS-TF by JST. The counterpart is 03SUR-32S by JST. A pre- assembled open-style cable for each CAN connector is included. -
Page 15: Expansions
Expansions 13 (26) Expansions Fieldbus Expansion Fig. 5 Fieldbus expansion If there is a low-speed CAN transceiver on the fieldbus expansion, it is possible to switch via software between the high-speed CAN transceiver on the interface and the low-speed CAN transceiver on the fieldbus expansion. - Page 16 Expansions 14 (26) 7.1.2 Installation Fig. 6 CAN interface with fieldbus expansions Fieldbus expansion channel 2 Fieldbus expansion connector channel 2 Fieldbus expansion channel 1 Fieldbus expansion connector channel 1 ► Plug the expansion in the corresponding expansion connector. Make sure that the expansion is properly inserted in the socket. ►...
-
Page 17: Can Expansion Board
Expansions 15 (26) CAN Expansion Board Fig. 7 Expansion board with fieldbus expansions CAN 3 CAN 4 Fieldbus expansion channel 4 Fieldbus expansion connector channel 4 Fieldbus expansion channel 3 Fieldbus expansion connector channel 3 Expansion board connector The CAN expansion board provides the following options: •... -
Page 18: Multican Expansion
Expansions 16 (26) 7.2.3 Fieldbus Expansions The fieldbus expansion connectors can be used to extend each CAN circuit with fieldbus expansions for additional fieldbuses. The signals of the additional fieldbuses are applied to the corresponding CAN connector. Observe information about available fieldbus expansions and the compatibility with CAN ►... - Page 19 Expansions 17 (26) Installation Fig. 9 CAN interface with MultiCAN-PB expansion CAN 1/3 CAN 2/4 MultiCAN-PB Fieldbus expansion connectors ► Install the expansion (see Installation, p. 14). ► Observe different pin allocation of D-Sub 9 connector. Pin Allocation Using MultiCAN-PB Pin No.
- Page 20 Expansions 18 (26) 7.3.2 MultiCAN-PB/LP Fig. 10 CAN interface and CAN expansion board with MultiCAN-PB/LP expansion CAN 1/2 CAN 3/4 MultiCAN-PB/LP Fieldbus expansion connectors If used in conjunction with low profile CAN interfaces the expansion redirects channel CAN 2 to the CAN 1 connector.
- Page 21 Expansions 19 (26) Installation ► Install the expansion (see Installation, p. 14). Observe different pin allocation of D-Sub 9 connector. ► Pin Allocation Using MultiCAN-PB/LP Pin No. Signal CAN 1/2 Signal CAN 3/4 -Low (high-speed) -Low (high-speed) -Low (high-speed) -Low (high-speed) -High (high-speed) -High (high-speed) —...
-
Page 22: Technical Data
Technical Data 20 (26) Technical Data PCI/PCIe CAN transceiver (low-speed): TJA1054, via optional fieldbus expansion LIN transceiver TJA1020T, via optional fieldbus expansion Operating temperature range 0 °C to +70 °C Storage temperature range -40 °C to +85 °C Galvanic isolation 1 kV for 1 second Relative humidity 10 % to 95 %, no condensation... -
Page 23: Support/Return Hardware
21 (26) Support/Return Hardware Support/Return Hardware Observe the following information in the support area on www.ixxat.com: • information about products • FAQ lists • installation notes • updated product versions • updates Support For problems or support with the product request support at www.ixxat.com/support. ►... - Page 24 This page intentionally left blank...
-
Page 25: A Regulatory Compliance
+1 312 829 0601 Phone Any changes or modifications not expressly approved by HMS Industrial Networks could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. -
Page 26: Disposal And Recycling
When this product reaches its end of life, contact local authorities to learn about disposal and recycling options, or simply drop it off at your local HMS office or return it to HMS. For more information, see www.hms-networks.com. - Page 27 This page intentionally left blank...
- Page 28 © 2019 HMS Industrial Networks Box 4126 300 04 Halmstad, Sweden info@hms.se 4.01.0230.20000 3.2 en-US / 2019-03-07 / 12222...
