6 Mechanical Specification

6.1 Module Mechanical Drawing

All ANYBUS DATATRANSFER modules are mechanically compatible i.e. all modules follow the
mechanical specification below. The modules can be divided into two different areas:
1. Electronics. Area where General ANYBUS DATATRANSFER hardware like DPRAM, CPU, EPROM
etc. Is mounted.
2. Fieldbus specific. Area where fieldbus specific components that do not fulfil the mechanical
specification of the electronics area are placed. This includes components like fieldbus connector,
transformers, protection capacitors etc. Since different hardware is required for different fieldbus
systems the worst case measurements is specified for this area.
An ANYBUS DATATRANSFER has the following mechanical specification.

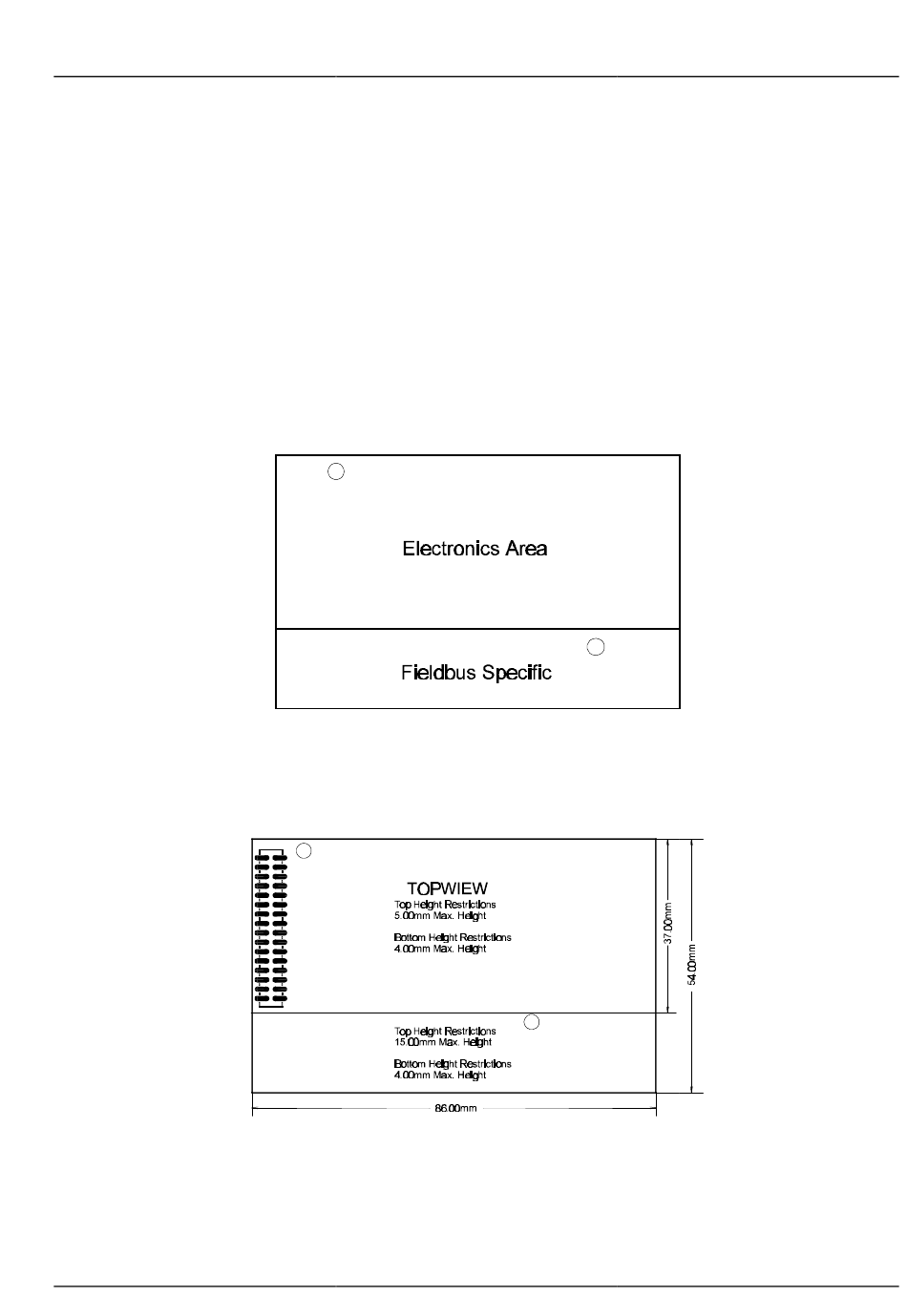

Figure 8. Overview ANYBUS PCB
Figure 9. ANYBUS mechanical drawing
