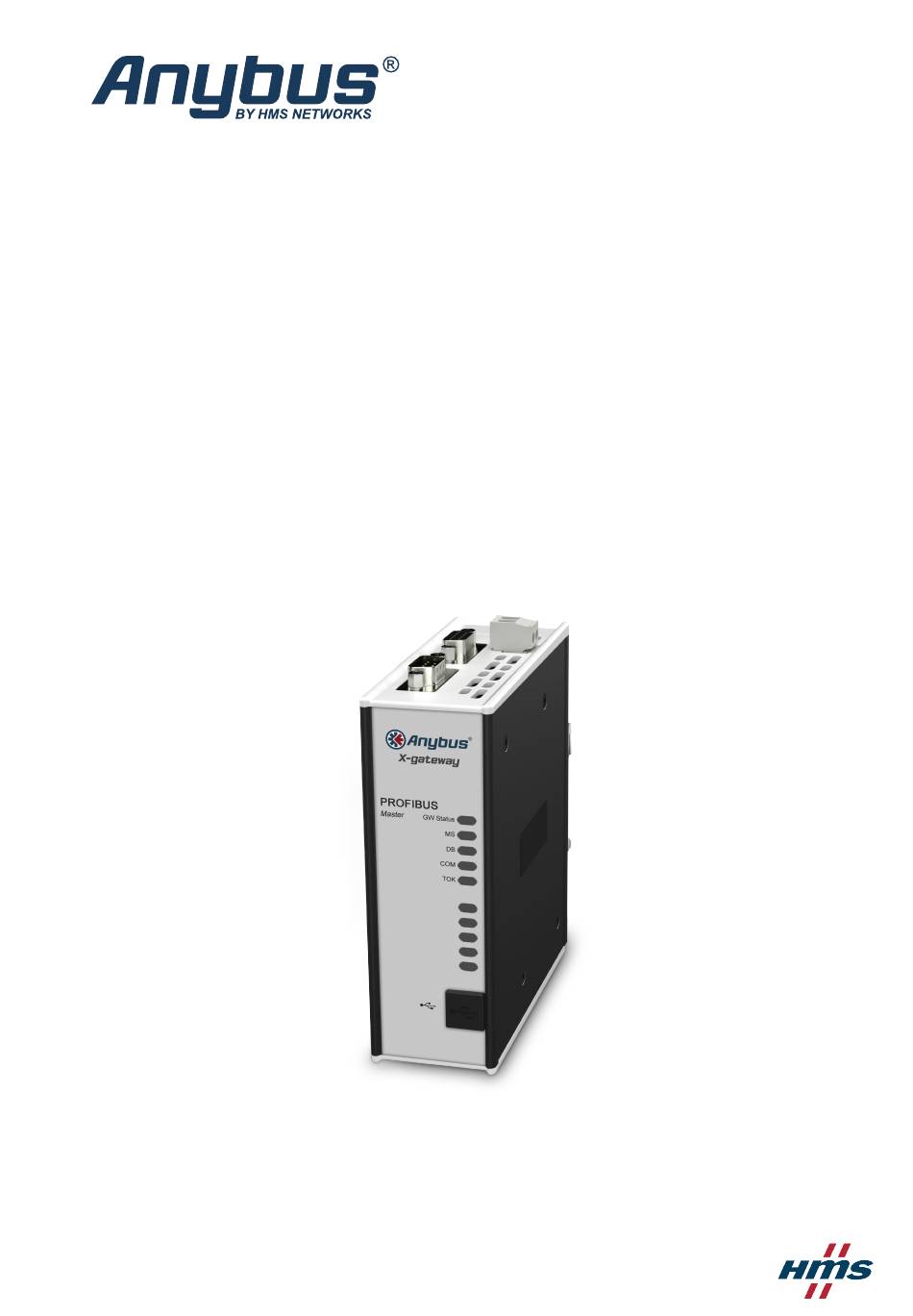

- Page 1 ENGLISH ® ™ Anybus X-gateway PROFIBUS Master Interface NETWORK GUIDE SCM-1202-104 Version 1.1 Publication date 2023-06-02...
- Page 2 The information in this document shall therefore not be construed as a commitment on the part of HMS Networks and is subject to change without notice. HMS Networks makes no commitment to update or keep current the information in this document.
-
Page 3: Table Of Contents
® ™ Anybus X-gateway PROFIBUS Master Interface Table of Contents 1. Preface ..........................1 1.1. About This Document ......................1 1.2. Document Conventions ..................... 1 1.3. Document-specific Conventions ..................2 1.4. Trademarks ........................2 1.5. Intellectual Property Rights ....................2 2. - Page 4 This page is intentionally left blank.
-
Page 5: Preface
PROFIBUS Master Interface 1. Preface 1.1. About This Document This document describes how to configure and use the Anybus X-gateway PROFIBUS Master Interface. For additional documentation and software downloads, FAQs, troubleshooting guides and technical support, please visit www.anybus.com/support. 1.2. Document Conventions... -
Page 6: Document-Specific Conventions
All other trademarks mentioned in this document are the property of their respective holders. 1.5. Intellectual Property Rights HMS Industrial Networks has intellectual property rights relating to technology embodied in the product described in this document. These intellectual property rights may include patents and pending patent applications in the USA and other countries. -
Page 7: Description

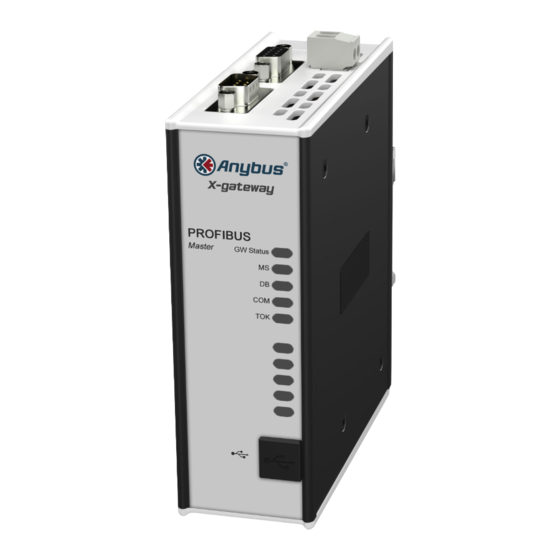

PROFIBUS Master Interface 2. Description 2.1. Overview The Anybus X-gateway PROFIBUS Master Interface has complete PROFIBUS DP Master functionality according to IEC 61158. The PROFIBUS master interface allows up to 125 PROFIBUS slaves to exchange data with another network. The interface exchanges data via two memory buffers: Input Buffer Contains data coming from the PROFIBUS slaves. -
Page 8: Installation
® ™ Anybus X-gateway PROFIBUS Master Interface Installation 3. Installation 3.1. Connectors and Switches IMPORTANT This product contains parts that can be damaged by electrostatic discharge (ESD). Use ESD prevention measures to avoid damage. Figure 2. PROFIBUS master adapter interface PROFIBUS Connector X1.1 (female 9-pin D-sub) If the node is the last on a bus segment, use a PROFIBUS connector with built-in terminating resistors. -
Page 9: Led Indicators
® ™ LED Indicators Anybus X-gateway PROFIBUS Master Interface 3.2. LED Indicators Figure 3. PROFIBUS master interface LED indicators The GW Status LED indicates the status of the X-gateway. The other LEDs indicate network communication and interface status. Indication Meaning No power Green Gateway running... -
Page 10: Installation Overview
® ™ Anybus X-gateway PROFIBUS Master Interface Installation Overview 3.3. Installation Overview Prerequisites The following items are required for installation: • USB cable • PROFIBUS cable • Null modem cable • PROFIBUS network configuration tool • GSD files for the slaves on the PROFIBUS network The free Windows-based PROFIBUS network configuration tool Anybus NetTool for PROFIBUS can be downloaded from www.anybus.com/support. -
Page 11: Configuration
® ™ Configuration Anybus X-gateway PROFIBUS Master Interface 4. Configuration 4.1. Anybus Configuration Manager The data exchange between the interfaces in the Anybus X-gateway is configured using the Windows-based configuration tool Anybus Configuration Manager, which can be downloaded from www.anybus.com/support. Figure 4. -
Page 12: Network Configuration Example
® ™ Anybus X-gateway PROFIBUS Master Interface Network Configuration Example 4.3. Network Configuration Example In this example a simple PROFIBUS network has been created using the free Windows-based network configuration tool Anybus NetTool for PROFIBUS. The network consists of 3 slaves and an Anybus X-gateway PROFIBUS Master Interface acting as master. - Page 13 ® ™ Network Configuration Example Anybus X-gateway PROFIBUS Master Interface The slave I/O map is also reflected in the input and output data exchange buffers of the PROFIBUS master interface: Slave Input Data Slave Output Data Anybus NetTool for PROFIBUS can be downloaded from www.anybus.com/support, where you will also find additional documentation and configuration examples.
-
Page 14: Technical Data
® ™ Anybus X-gateway PROFIBUS Master Interface Technical Data 5. Technical Data 5.1. Technical Specifications PROFIBUS functionality • Complete Profibus DP Master functionality according to IEC 61158 • Optional Live List of the active status of the connected slaves Maximum number of slaves Maximum I/O data 512 bytes in each direction Supported baud rates...
