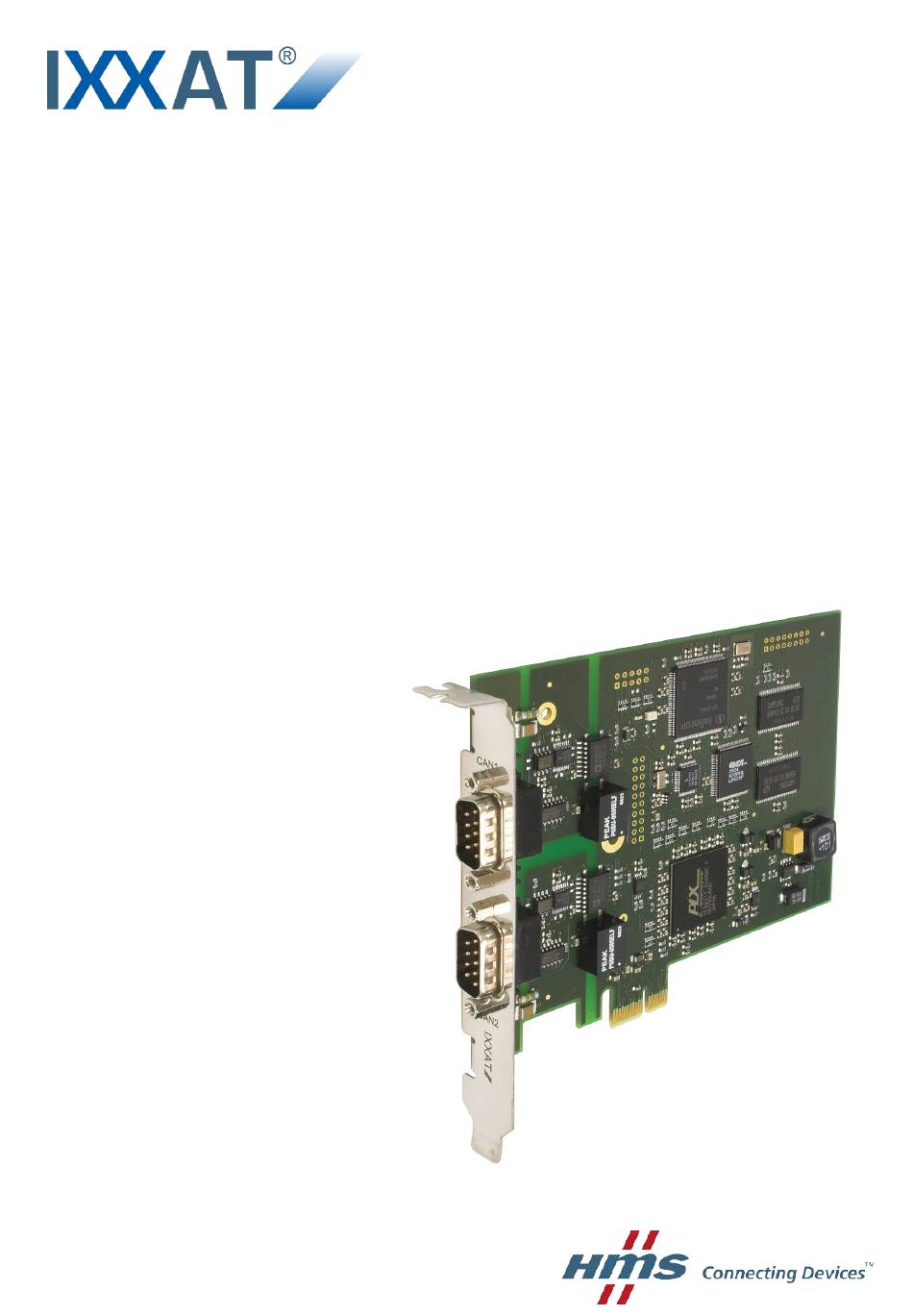

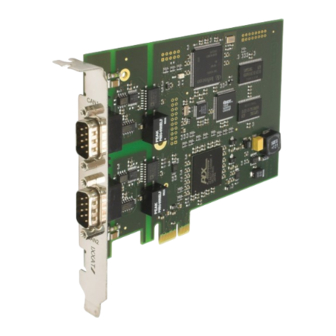

- Page 1 iPC-I XC16/PCIe Intelligent PC/CAN Interface MANUAL ENGLISH...
- Page 2 Tel.: +49 751 56146-0 Fax: +49 751 56146-29 Internet: www.hms-networks.de E-Mail: info-ravensburg@hms-networks.de Support For problems or support with this product or other HMS products please request support at www.ixxat.com/support. Further international support contacts can be found on our webpage www.ixxat.com Copyright...
-
Page 3: Table Of Contents
Contents Introduction ..................5 1.1 Overview ................. 5 1.2 Features .................. 5 1.3 Support ................... 6 1.4 Returning hardware ............... 6 Installation ..................6 2.1 Software installation .............. 6 2.2 Hardware installation ............. 7 Connections and displays ............. 7 3.1 Pin assignment ............... 7 3.1.1 CAN bus connection .............. -
Page 5: Introduction
Introduction 1 Introduction 1.1 Overview The HMS PC-CAN interface iPC-I XC16/PCIe is a powerful electronic component, developed and manufactured in accordance with the latest technological standards. This manual is intended to familiarize you with your iPC-I XC16/PCIe interface. Please read this manual before beginning with installation. -
Page 6: Support
Installation 1.3 Support For more information on our products, FAQ lists and installation tips, please refer to the support section of our website (http://www.ixxat.de), which also contains information on current product versions and available updates. If you have any further questions after studying the information on our website and the manuals, please contact our support department. -
Page 7: Hardware Installation
Connections and displays 2.2 Hardware installation Before inserting the iPC-I XC16/PCIe in the PCIe slot, you should install the software driver (see previous section). For all work on the PC and interface, you must be statically discharged. Work must be carried out on an earthed, anti-static work mat. Take the following steps in sequence: (1) Switch the PC off and remove the mains plug. - Page 8 Connections and displays The assignment of the Sub-D connectors is shown in Table 3-1. As an option, the bus connection can be galvanically isolated from the CAN bus. Pin no. Signal Option: CAN-low (low speed) CAN-low Option: CAN-high (low speed) CAN-high Table 3-1: Pin assignment of the CAN bus connection CAN1...
-
Page 9: Pci Express Bus Connection
There is no bus terminal resistor for the CAN bus on the iPC-I XC16/PCIe. A bus terminal resistor in the form of a feed-through connector is available as an accessory from HMS (order number 1.04.0075.03000). 4 Firmware update For reasons of speed, the software on the card is run in the flash of the microcontroller. -
Page 10: Appendix
Appendix Appendix Technical specifications PCI Express interface: PCI express single lane port (x1) in accordance with PCI express base specification, revision 1.0a Microcontroller: Infineon XC161CJ, 40 MHz RAM / Flash: 512 kByte / 128 kByte CAN controller: TwinCAN (integrated in the microcontroller) CAN transceiver (high-speed): Texas Instruments SN65HVD251 CAN transceiver (low-speed): Philips TJA1054... -
Page 11: Accessories
Appendix Accessories CAN bus terminal resistor To terminate the CAN bus, a Sub-D9 feed-through connector with integrated 120 Ohm bus terminal resistor is available. Order number: 1.04.0075.03000 Fig. 4-1: CAN bus terminal resistor and internal wiring FCC Compliance Declaration of conformity This device complies with Part 15 of the FCC Rules. -
Page 12: Ec Declaration Of Conformity
Appendix EC Declaration of Conformity IXXAT Automation hereby declares that the product: iPC-I XC16/PCIe with the article numbers: 1.01.0053.33110 1.01.0053.33220 1.01.0053.33660 do comply with the EC directives 2004/108/EC. Applied harmonized standards in particular: EN 55022:2006 + A1:2007 EN 55024:1998 + A1:2001 + A2:2003 23.08.11, Dipl.-Ing.
