2

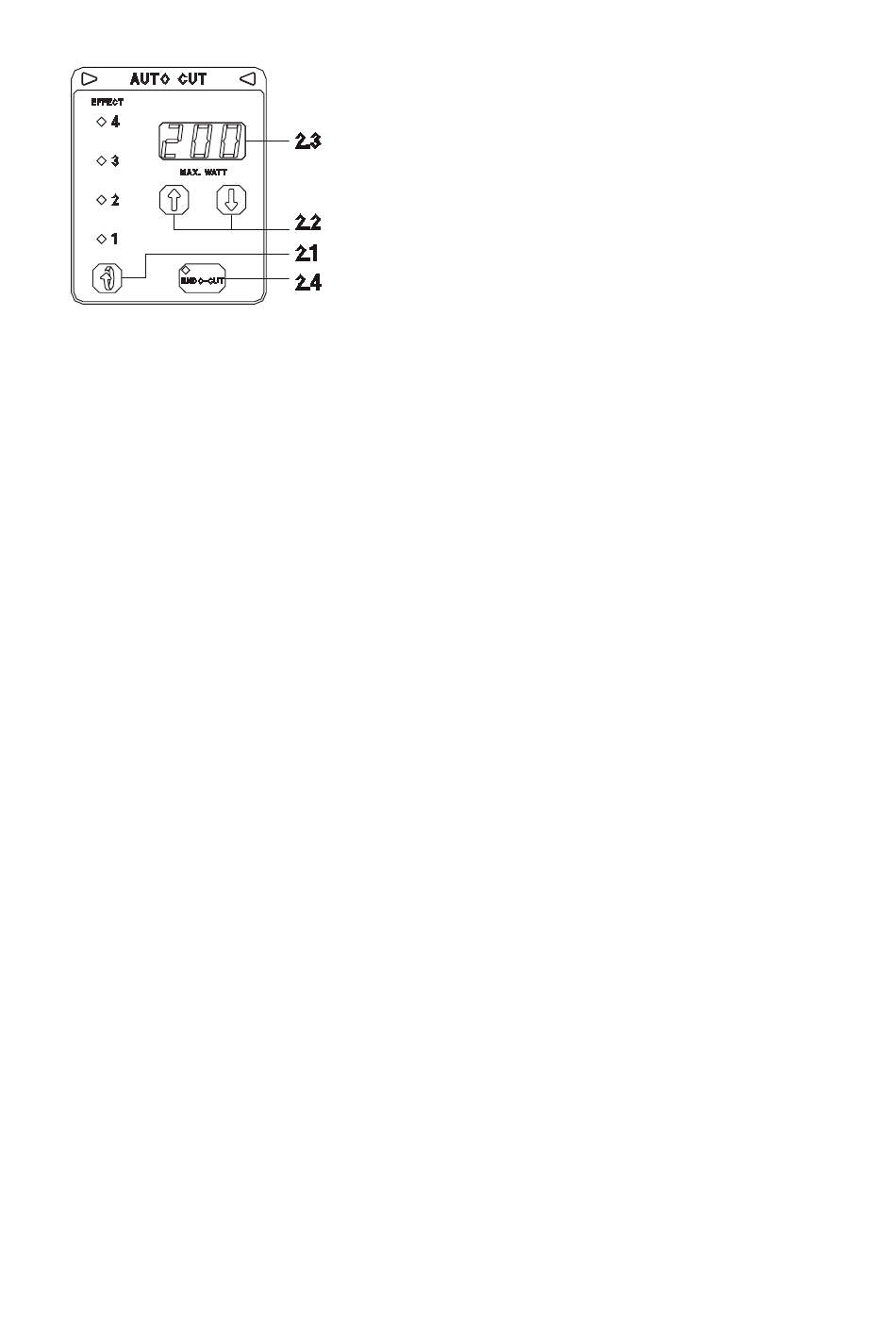

AUTO CUT function field

2.1 Setting of the coagulation EFFECT when cutting
Here the required cutting quality in regard to the coagulation effect on the cutting edges
can be adjusted.
Level 1 corresponds to minimum coagulation effect.
Level 4 corresponds to maximum coagulation effect.
2.2 Setting the power limitation
The HF power output can be limited in one watt steps from 200 watts to 1 watt. If display
2.3 shows " —" , the Auto Cut mode is switched off.
2.3 Display of the set power limitation in watts
This display shows the currently set power limitation
2.4 ENDO CUT
is a cutting mode by which the cutting procedure is automatically fractionated. In this way,
for example during endoscopic polypectomy or papillotomy, the cutting electrode is
prevented from cutting through the tissue too quickly. The ENDO-CUT key is only active
on models ICC 200 E and ICC 200 EA.
Activation of monopolar cutting
can be done using either the yellow key on the electrode handle or the yellow pedal on the
footswitch. Activation is visually signaled by continuous illumination of the triangle symbols in
the upper part of the CUT function field and also acoustically signaled. Monopolar cutting
instruments are connected to the CUT/COAG socket.
All parameters can be set in this function field that are relevant
to cutting:
4-4
