Erbe IES 2 Service Manual

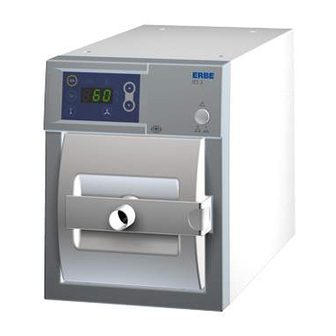

An electrical medical device which purifies the air of smoke and gas particles
Hide thumbs
Table of Contents

Advertisement

Quick Links

SERVICE MANUAL
IES 2
1.3.x
80116-443
10.16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IES 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Erbe IES 2

Summary of Contents for Erbe IES 2

  • Page 1 SERVICE MANUAL IES 2 1.3.x 80116-443 10.16...
  • Page 3 SERVICE MANUAL IES 2...
  • Page 4 (by photocopying, microfilming or other methods) or processed, duplicated or dissem- inated by the use of electronic systems without the written consent of Erbe Elektromedizin GmbH. The information contained in this manual may be amended or supplemented without prior notice and represents no obli- gation on the part of Erbe Elektromedizin GmbH.

  • Page 5: Table Of Contents

    EEProm filter........... 23 ECB interface (ECB = ERBE Communication Bus)..... . 23 Buttons .
  • Page 6 Table of Contents Remedying malfunctions........29 Maintenance and servicing ....... . 31 Who is allowed to perform servicing and maintenance work? .

  • Page 7: Safety Instructions

    The supply voltage must match the voltage specified on the rating plate. Connect the unit / the equipment cart to a properly installed grounded outlet. Only use the Erbe power cord or an equivalent power cord for this purpose. The power cord must bear the national test sym- bol.

  • Page 8: Liability And Warranty

    Liability and warranty ATTENTION! Adjustments, tests, modifications, maintenance and repair work may only be performed by Erbe or persons trained by Erbe. If the work is not performed by trained persons, Erbe accepts no liability and warranty rights become void.

  • Page 9: Unit Description

    2 • Unit description CHAPTER 2 Unit description Unit variants The IES 2 is avaiable in the following unit variants: • 230 V • 120 V • 100 V / 46...

  • Page 10: Factory Setting And Reset

    2 • Unit description Factory setting and Reset Factory setting The IES 2 has the following settings when it is delivered by the manufac- turer: • Operation suction: 80 % • Basic suction: 10 % • Run-on time: 2 s •...

  • Page 11: Controls At The Front

    2 • Unit description Controls at the front IMPORTANT! This chapter contains an overview of the controls of the unit. The rele- vant User Manual for the unit, knowledge of which is assumed for ser- vicing work, provides detailed information about how to use the unit. Fig.
  • Page 12 2 • Unit description Fig. 2-3 Operation suction Basic suction Run-on time START Suction Display Display for ECB connection made to VIO electrosurgical unit System blocked indicator/Occlusion Filter exhausted indicator % and/or second display Higher/Lower-Buttons / 46...

  • Page 13: Controls At The Rear

    2 • Unit description Controls at the rear Fig. 2-4 Power supply module with fuses Footswitch socket ECB socket (Erbe Communication Bus) Potential equalization terminal / 46...

  • Page 14: Description Of Function

    2 • Unit description Description of function The IES 2 is an electrical medical device which purifies the air of smoke and gas particles which result from the vaporization of human and animal tis- sue. This smoke typically arises during the use of laser and electrosurgical devices and generally consists of water vapor, aerosols and organic gases.

  • Page 15: Technical Data

    3 • Technical data CHAPTER 3 Technical data Power connection Rated supply voltage 230 V ± 10 % 120 V ± 10 % 100 V ± 10 % Rated supply frequency 50 / 60 Hz 50 / 60 Hz 50 / 60 Hz Current consumption 3.0 A 4.2 A...
  • Page 16 3 • Technical data Ambient conditions for operation of the unit Temperature +10 °C to +40 °C Relative humidity 15% - 80%, non-condensing Air pressure 54 kPa - 106 kPa Acclimatizing If the unit has been stored or transported at temperatures below +10 °C or above +40 °C, the unit will require approx.

  • Page 17: Installation

    For IES 2 there are two installation possibilities: • Installation on an Erbe VIO Cart. • IES 2 as a stand alone variant. These installation possibilities are described in the User Manual for the IES 2 and the User Manual for the above equipment cart. / 46...
  • Page 18 4 • Installation / 46...

  • Page 19: Circuit Descriptions

    5 • Circuit Descriptions CHAPTER 5 Circuit Descriptions / 46...

  • Page 20: Block Diagram

    5 • Circuit Descriptions Block diagram Potential Transformer* equalization 100 / 230 V socket 120 / 230 V Power connetion Line filter Motor with fuses motor Motor control Power switch Processor board +24VDC Controller Power +12VDC supply Motor +5VDC Pressure sensor Temperature sensor...

  • Page 21: Description Of The Various Assemblies

    5 • Circuit Descriptions Description of the various assemblies Processor board Processor: MC68HC912BC32 Quartz: 16 MHz ADC: The AD converter inputs are filtered by an RC element Pressure sensor Manufacturer: SensorTechnics Type: SX01DD4 The pressure sensor records the back pressure and transmits this using the internal AD converter to the processor.

  • Page 22: Power Switch

    5 • Circuit Descriptions Function 3 The controller supervisor functions as a low-active reset output. This out- put leads to a defined input in the controller. The power-fail signal is emitted when a voltage of less than 1.25 V is de- tected at the PFI input.

  • Page 23: Power Connection With Fuses

    ECB interface (ECB = ERBE Communication Bus) The IES 2 can be controlled entirely via the electrically isolated ECB inter- face. All IES 2 functions can be availed of. The signal is generated by the ECB interface contained in the processor. Electrical isolation occurs using two optical couplers and another transformer winding.

  • Page 24: Led Display

    5 • Circuit Descriptions LED display For the display, a 7-segment display for 3 characters was chosen. In addi- tion, there are four other LEDs for lighting up the buttons and four for dis- playing the various statuses. Control of the LED cathodes is via the data bus of Port B and a driver, ULN2803.

  • Page 25: Settings And Service Functions

    6 • Settings and service functions CHAPTER 6 Settings and service functions General information This device has two operating modes for changing settings or to call up in- formation for the service technician: • Setting mode • Service mode Setting mode Overview Display Assembly...
  • Page 26 6 • Settings and service functions Display Assembly Setting Range P. 6 Filter Filter status display 0 – 99 %  99 % (=new) 3 % (=almost exhausted) (=exhausted) Calling up Setting mode IMPORTANT! The Setting mode can only be called up once the "Setting mode inhibit"...

  • Page 27: Service Mode

    6 • Settings and service functions Service mode Overview Display Assembly Setting Range Error Error list display last error last error but 2.x to Error log Error Delete error list 0 (=no) 1 (=yes) Parameter Basic setting 0 (=off) inhibit 1 (=on) Parameter Setting mode...
  • Page 28 6 • Settings and service functions Change settings 1. With the Higher / Lower buttons select the required setting ( . 1 to . 5). 2. Press the START Suction button.  The selected setting can now be changed with the Higher / Lower buttons.

  • Page 29: Remedying Malfunctions

    ATTENTION! Adjustments, technical tests, modifications, maintenance and repair work may only be performed by Erbe or persons trained by Erbe. If the work is not performed by trained persons, Erbe accepts no liability and warranty rights become void.
  • Page 30 7 • Remedying malfunctions Error Possible cause Action Display y.1 ECB fault Check IES 2 and VIO electrosurgi- cal unit software versions for compatibility. Display y.2 Excess temperature (> 60 °C) Switch off the unit and wait until the temperature in the interior of the unit has returned to normal.

  • Page 31: Maintenance And Servicing

    ATTENTION! Adjustments, tests, modifications, maintenance and repair work may only be performed by Erbe or persons trained by Erbe. If the work is not performed by trained persons, Erbe accepts no liability and warranty rights become void. It is recommended that the technical safety check also be performed by Erbe or persons trained by Erbe.

  • Page 32: Technical Safety Check - Step By Step

    Test equipment, measuring equipment, and auxiliary test equipment (cables, test boxes, etc.) are listed separately at the beginning of each test unit. Where Erbe article numbers are specified, only original Erbe test equipment, measuring equipment, and auxiliary test equipment may be used.

  • Page 33: User Manual And Visual Inspections

    8 • Maintenance and servicing User manual and visual inspections • Test specimen and accessories (where enclosed) undamaged exter- nally. • User manual present. • All labels on the test specimen (conformity declaration mark, rating plate, and all wording) present and readily legible. Electrical safety checks IMPORTANT! Electrical safety is verified in accordance with the national specifica-...

  • Page 34: Activation

    IES 2 one pedal footswitch Test setup • The test specimen is connected to the power supply via the power cord. • The single pedal footswitch IES 2 is connected. Test procedure Activation with footswitch 1. Set IES 2 to: –...

  • Page 35: Activation With Vio Electrosurgical Unit (Via The Ecb)

    • as with previous testing and also • The power cord connects a VIO D or VIO S to the mains power supply. • The IES 2 and the VIO are connected to one another via the ECB. • Both units are switched on.

  • Page 36: Operation Suction

    Operation suction Test setup • As for the previous test. Test procedure Operation suction without 1. Set IES 2 to: run-on time – Operation suction: 80% – Basic suction: 2% – Run-on time: 0 sec 2. Keep footswitch pedal pressed. The suction must remain activated as long as the pedal is kept pressed.

  • Page 37: Basic Suction

    26. Set the blocked suction time to 20 s for this test. 2. Exit the Setting mode. Switch unit off and back on for this purpose. 3. Keep footswitch pedal pressed. The suction must be activated. 4. Set IES 2 to: – Operation suction: 80% – Basic suction: 30% –...
  • Page 38 8 • Maintenance and servicing / 46...

  • Page 39: Replacing Components

    ATTENTION! Adjustments, technical tests, modifications, maintenance and repair work may only be performed by Erbe or persons trained by Erbe. If the work is not performed by trained persons, Erbe accepts no liability and warranty rights become void.
  • Page 40 9 • Replacing components / 46...

  • Page 41: Spare Parts

    10 • Spare parts CHAPTER 10 Spare parts 40322-049 (2) 51611-100 100 / 120 V~ (2) 40322-048 230 V~ (2) 40322-030 (1) 40322-029 (1) 40322-045 (1) 40322-044 (1) 40322-031 (1) 40322-043 (2) 40322-041 (3) 40322-002 (1) 40322-042 (3) 40322-036 (6) 40322-004 (4) 40322-008 (4) Fig.
  • Page 42 10 • Spare parts Fig. 10-2 / 46...
  • Page 43 10 • Spare parts 40322-010 (1) 40322-032 (1) 40322-054 (1) 40322-050 (1) only 100 / 120 V~ 40322-027 (1) 40322-036 (4) 40322-035 (4) 40322-011 (1) 40322-040 (1) 40322-005 (1) 40322-007 (1) 40322-034 (1) 40322-046 (4) 20321-000 (1) Fig. 10-3 / 46...
  • Page 44 10 • Spare parts 40000-329 (1) 40000-100 (1) 40000-285 (1) 30322-030 100 V~ 30322-032 120 V~ 30322-001 230 V~ 40000-311 (1) Fig. 10-4 / 46...
  • Page 45 10 • Spare parts 40322-009 (1) 40322-012 (1) 40322-059 (1) only 100 / 120 V~ 40322-038 (1) Fig. 10-5 / 46...
  • Page 46 10 • Spare parts 40322-025 (1) 40322-013 (1) 40322-024 (1) only 230 V~ Fig. 10-6 / 46...
