1. GENERAL

This practice provides installation and maintenance
procedures for the ADTRAN Series 5 Total Reach
DDS-DP All-Rate DDS Dataport. Figure 1 is an
illustration of the ADTRAN Series 5 Total Reach
DDS-DP (P/N 1433105L5).
Revision History
This is the initial release of this document. Future
revisions will be described in this subsection.
Features
• 2-wire deployment
• Repeaterless operation
• Bridged tap tolerant
• Span power for remote Total Reach DDS-R
termination unit
• Utilization in SLC Series 5 and Series 2000 channel
banks
61433105L2-5D
Trademarks: Any brand names and product names included in this document are trademarks,
All manuals and user guides at all-guides.com
Series 5 Total Reach DDS-DP
Total Reach All-Rate DDS Dataport
Installation and Maintenance
®
Section 61433105L2, Issue 4
registered trademarks, or trade names of their respective holders.
CLEI Code # 5SC531PF_ _
SW2

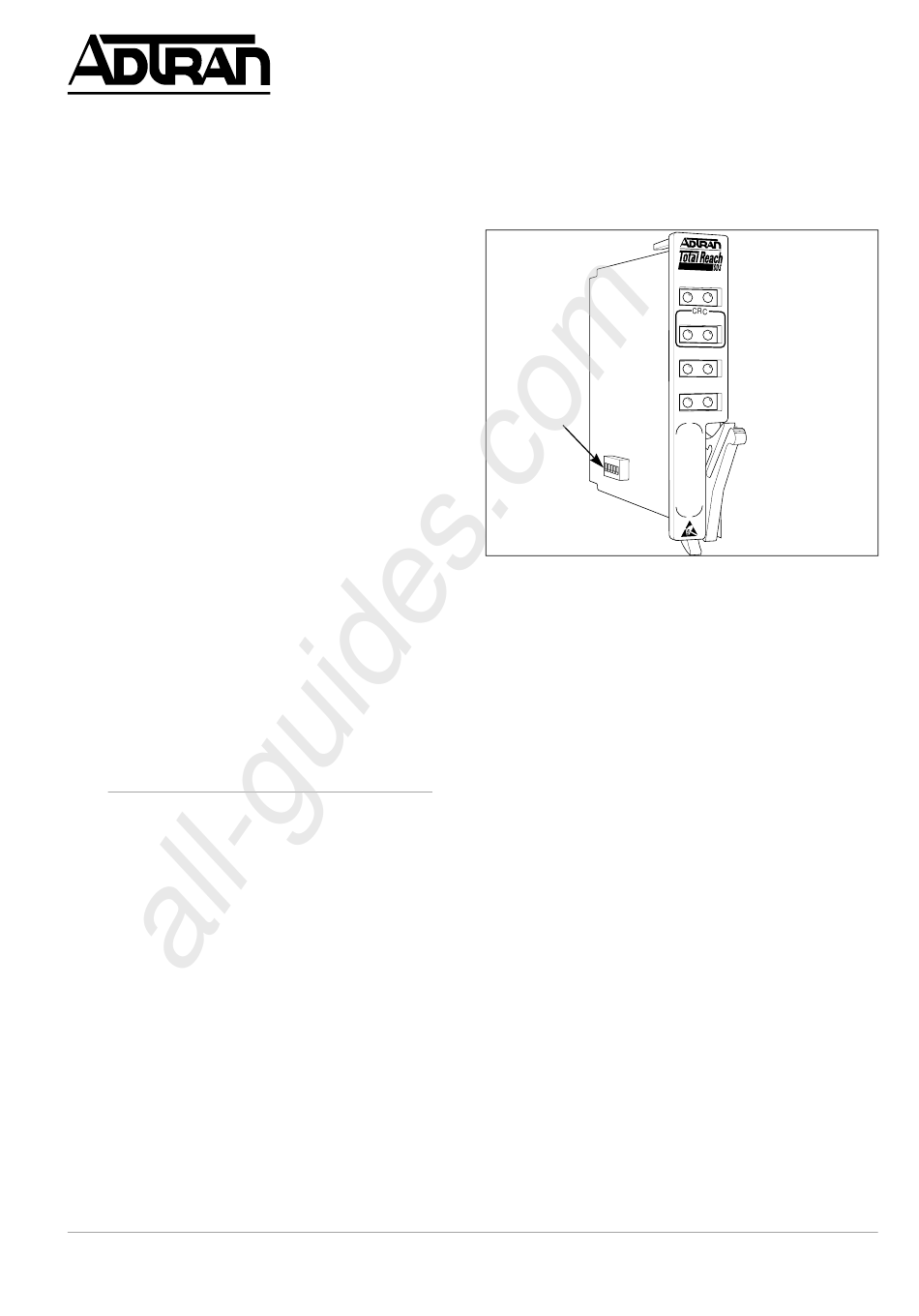

Figure 1. Series 5 Total Reach DDS-DP

• Loop Quality Monitor and A/B signaling options
• Bidirectional DS0 loopback capability
• Transmits Mux Out of Sync code upstream during
out of service loop condition.
• Embedded Digital System 6 capabilities for remote
provisioning, and performance monitoring.
Description
The ADTRAN Series 5 Total Reach DDS-DP is a
functional replacement for the SLC
CLEI 5SCU48, delivering data at rates up to 64 kbps
using a single copper pair. Used in combination with the
Total Reach DDS-R termination unit, the Series 5 Total
Reach DDS-DP can accommodate extended loop
lengths, eliminating the need for DDS repeaters. The
Series 5 Total Reach DDS-DP span powers the Total
Reach DDS-R located at the customer premises. The
Total Reach DDS-R converts the 2-wire signal to the
traditional 4-wire Alternate Mark Inversion (AMI) signal
for presentation to the customer.
The ADTRAN Series 5 Total Reach DDS-DP
occupies a single channel position in the AT&T
Series 5 and Series 2000 or Series 5 compatible
channel bank. It provides the interface between a DS0
timeslot of the T-carrier data stream and the 2-wire
metallic loop extending to the customer premises. The
Section 61433105L2-5D
Issue 4, June 2000
DDS -DP
14331 05
SX
SYN C
NE FE
QM DSU
LBK
MAN
®
Series 5 OCU DP,
®
SLC
1
