ADTRAN Total Reach DDS-R Installation And Maintenance Manual

CONTENTS
1. GENERAL ...................................................................... 1
2. OPTIONS ....................................................................... 2
3. INSTALLATION ........................................................... 2
4. TESTING ........................................................................ 5
5. DEPLOYMENT GUIDELINES .................................... 7
6. MAINTENANCE ........................................................... 7
7. WARRANTY AND CUSTOMER SERVICE ............... 8
FIGURES
Figure 1. Total Reach DDS-R Standalone ......................... 1
Figure 2. Total Reach DDS Circuit Diagram ..................... 2
Figure 3. Total Reach DDS-R Option Switch .................... 2
Figure 4. T400/T200 Housing with Cover Open ............... 3
Figure 5. T400/T200 Housing Rear Panel ......................... 3
Figure 6. Circuit Card Pin Assignments ............................ 3
Figure 7. Signal Loss Indication ........................................ 5
Figure 8. TROCU DP Bidirectional Loopback
Pass-Thru Mode .................................................. 6
Figure 9. TROCU DP Bidirectional Loopback
Normal Mode ...................................................... 6
TABLES
Table 1. Wiring Connections ............................................ 3
Table 2. Compliance Codes .............................................. 4
Table 3. Front Panel Indication ......................................... 4
Table 4. Latching Loopback Sequences ........................... 5
Table 5. Alternating Loopback Sequences ....................... 6
Table 6. Cable Type and Temperature Loss Data
@ 13.3 kHz ......................................................... 8
Table 7. Total Reach DDS Insertion Loss
Measurements ..................................................... 8

1. GENERAL

This practice provides installation and maintenance
procedures for the ADTRAN Total Reach
DDS Standalone Termination Unit. The ADTRAN
Total Reach DDS-R Standalone includes the
ADTRAN T400/T200 Single Mount Housing and the
ADTRAN Total Reach DDS-R. Figure 1 is an
illustration of the ADTRAN Total Reach DDS-R
Standalone (P/N 4291043SAALL).
Revision History
This document has been reissued to include modified
circuit card pinout assignments and upgrade selected
text.
64291043SAALL-5E
®
Total Reach DDS-R Standalone
All Rate DDS Termination Unit
Installation and Maintenance
® All Rate
Trademarks: Any brand names and product names included in this document are
Section 64291043SAALL-5, Issue 5
trademarks, registered trademarks, or trade names of their respective holders.
Section 64291043SAALL-5E
CLEI Code #NCM3ZCXB _ _

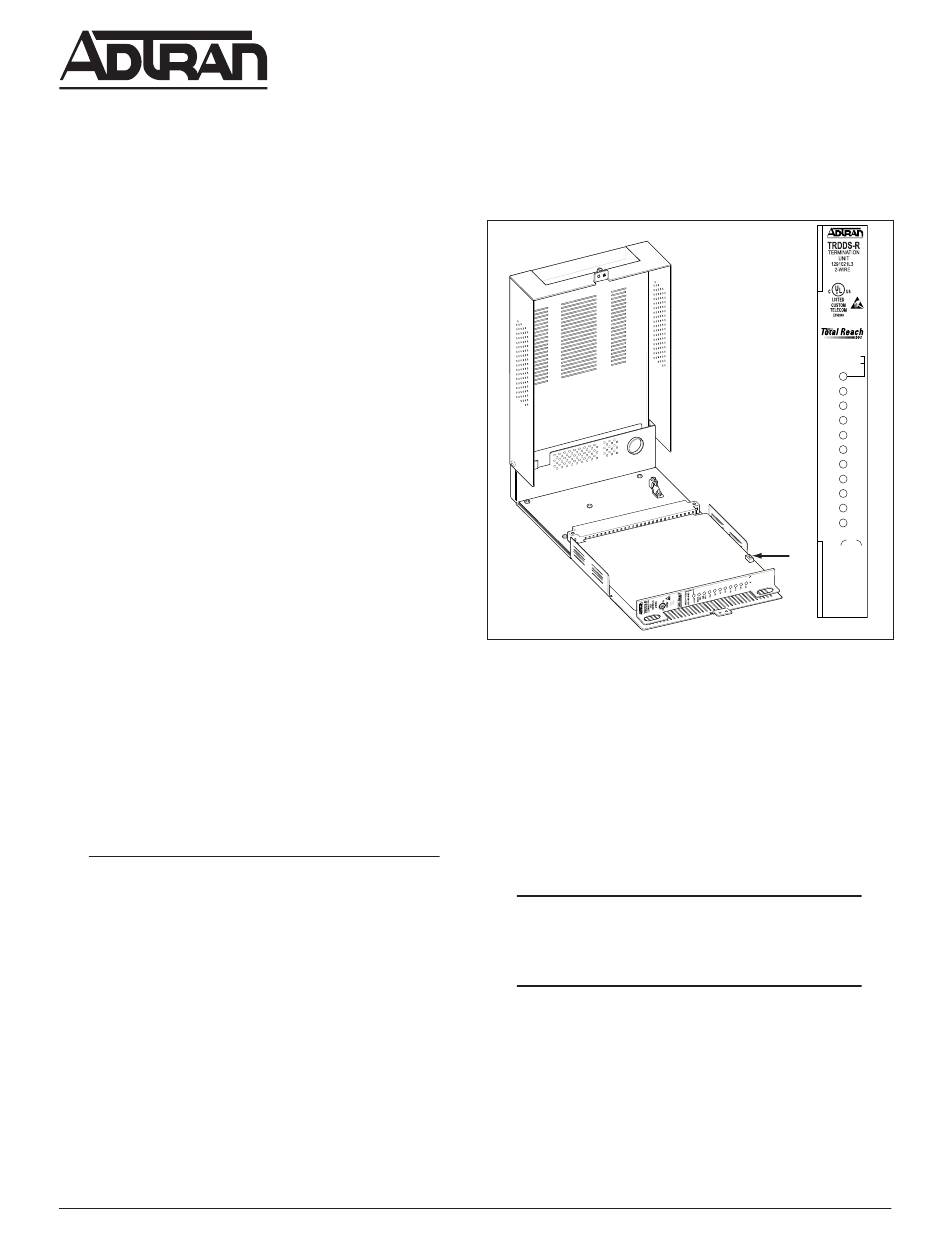

Figure 1. Total Reach DDS-R Standalone

Description
The ADTRAN Total Reach DDS-R is a span-powered
termination unit designed to deliver data rates up to 64
kbps and provide testing functionality at the customer
premises. Used in combination with the TROCU DP
unit, the Total Reach DDS-R converts the 2-wire Total
Reach signal to the traditional 4-wire DDS signal for
presentation to the customer.
NOTE
The Total Reach DDS-R unit must be used with
an appropriate Total Reach TROCU DP unit.
The Total Reach DDS-R is an auto-rate adaptive
digital network interface at the customer premises
point-of-demarcation. In addition to terminating the
2-wire extended range signal, the Total Reach DDS-R
functions as a regenerative loopback device supporting
Telco-generated testing. The Total Reach DDS-R is
available in the T200 mechanics and can be optioned
for 0 or -10 dB output toward the customer.
Issue 5, May 2001
GREEN = SYNC
RED = NO SYNC
SYNC
NEAR
CRC
FAR
CRC
LBK
SC
64
32
19.2
9.6
4.8
2.4
SW1
1
