TOTAL ACCESS 544R
Quick Start Guide

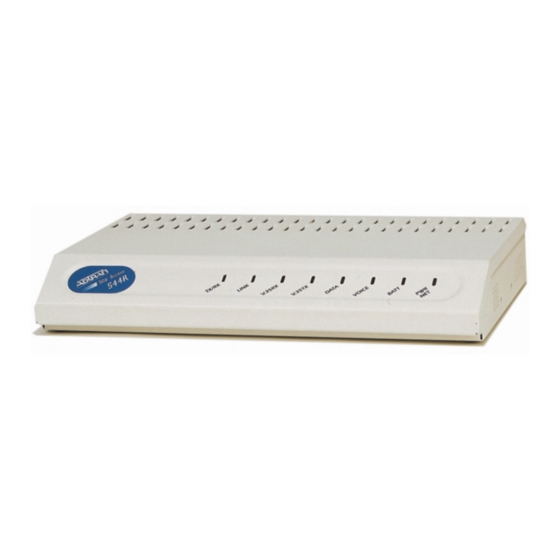

Reviewing the Front Panel
Connecting to the Total Access 544R
Connecting a VT100 terminal (or VT100 terminal emulator) to the C
interface (on the back panel of the unit) allows access to the terminal
menus and management features of the Total Access 544R.
Perform Steps Below in the Order Listed:
1. Configure a VT100 terminal (or terminal emulation software) with the
following settings:
Data Rate: 9600 baud
Data Bits: 8
Parity Bits: None
If the terminal has a parallel setting, disable it and use serial.
2. Connect one end of the 6" data cable (supplied) into the Total Access
544R C port. (This connection is RJ-45.) Make the connection to
RAFT
the VT100 terminal as appropriate for your connection. ADTRAN
supplies an RJ-45 to DB-9 adapter for connections to standard DB-9
Communications (COM) ports.
3. Initiate a terminal session and the L
to enter the menu. There is not a manufacturer's password by default.
(Passwords in the Total Access 544R are case sensitive.)
Quick Start Guide, 61200704L2-13A, April 2003
RAFT
Stop Bits: 1
Flow Control: None
screen displays. Press Enter
OGIN
Technical Support 1-888-4ADTRAN (1-888-423-8726)
For more detailed documentation, visit us online at
LAN LEDs WAN LEDs
LAN
Front Panel LEDs

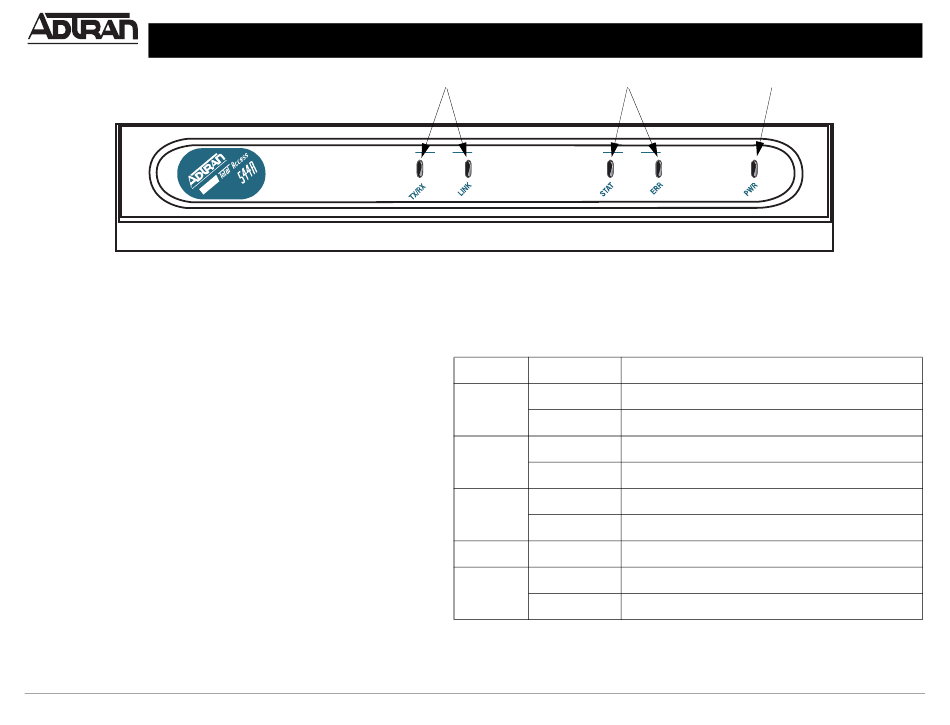

The front panel provides five status LEDs to monitor operation and activity. The
following table provides LED activity explanations.
LED COLOR
Off
LAN TX/RX
Green (blinking)
Off
LAN LINK
Green (solid)
Red (solid)
WAN STAT
Green (solid)
WAN ERR Off
Green (solid)
PWR
Off
P/N 4200704L8, L9, L10, L11
Power LED
WAN
DESCRIPTION
There is no data trafic on the LAN
There is data trafic on the LAN
The physical link is down; there is no Ethernet connection
There is link integrity on the LAN (physical link is up)
SHDSL is down
SHDSL is up
Not applicable
Power is supplied to the unit
Power is not supplied to the unit
