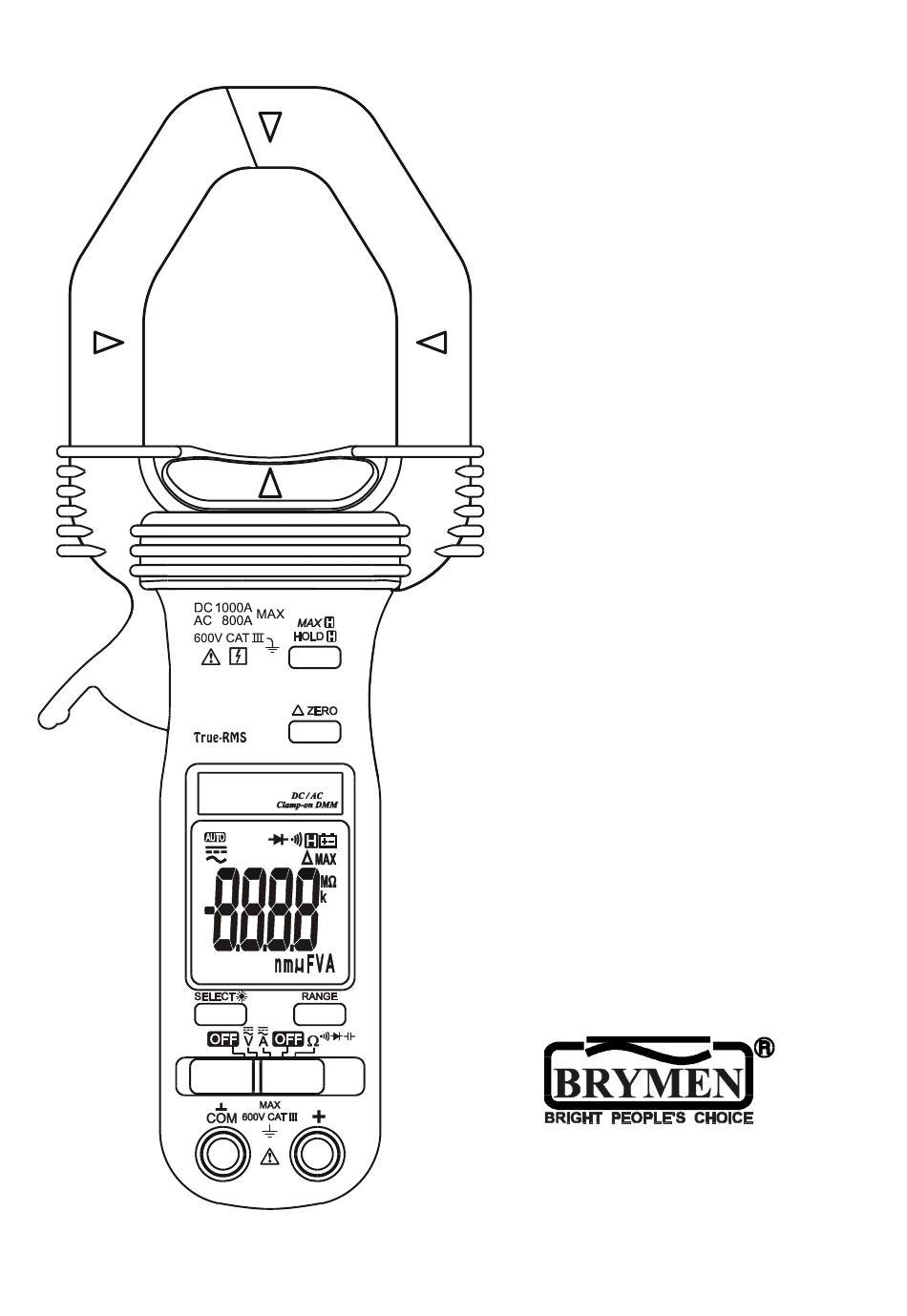

- Page 1 USER'S MANUAL BM161s BM162s Versatile AC/DC Clamp-on Multimeter Series...
-
Page 2: Terms In This Manual
1) SAFETY This manual contains information and warnings that must be followed for operating the instrument safely and maintaining the instrument in a safe operating condition. If the instrument is used in a manner not specified by the manufacturer, the protection provided by the instrument may be impaired. -
Page 3: International Electrical Symbols
WARNING To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. The meter is intended only for indoor use. To avoid electrical shock hazard, observe the proper safety precautions when working with voltages above 60 VDC or 30 VAC rms. These voltage levels pose a potential shock hazard to the user. -
Page 4: Product Description
3) PRODUCT DESCRIPTION This user's manual uses only representative model(s) for illustrations. Please refer specification details for function availability to each model. 1) Hall-effect Clamp Jaw for AC & DC current electric field pick 2) Hand/Finger Barrier to indicate the limits of safe access of the meter during measurement 3) Push-buttons for special... -
Page 5: Operation
4) OPERATION CAUTION: Before and after hazardous voltage measurements, test the voltage function on a known source such as line voltage to determine proper meter functioning. DC Voltage and AC Voltage functions Inputs are made through the test lead terminals. Note: DC 400.0mV range is designed with 1000M... - Page 6 ACA & DCA Current clamp-on function Inputs are made through the clamp jaws for non-invasive ACA & DCA current measurements. CAUTION (Application and removal of the Clamp-on meter) Press the jaw trigger and clamp the jaws around only one single conductor of a circuit for load current measurement.
- Page 7 CAUTION Do not measure above rated frequency (1kHz @ < 50A; 100Hz @ < 800A). In measuring above rated frequency, the magnetic circuits may reach to a hazardous temperature Resistance, and Continuity functions Inputs are made through the test leads terminals. Slide-switch on defaults at . Press SELECT button momentarily to select Continuity function which is convenient for checking wiring connections and operation of switches.
- Page 8 shorted diode (defective). An OL indicates an open diode (defective). Reverse the test leads connections (reverse biased) across the diode. The digital display shows OL if the diode is good. Any other readings indicate the diode is resistive or shorted (defective).
-
Page 9: Maintenance
button momentarily again to step through the ranges. Press and hold the button for 1 second or more to resume auto-ranging mode. Display Backlight (Model 162s only) Press the SELECT button for 1 second or more to toggle the display backlight on and off. - Page 10 Battery replacement The meter uses standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2. Loosen the 2 captive screws from the battery cover case. Lift the battery cover case. Replace the batteries.
-
Page 11: Specifications
6) SPECIFICATIONS General Specifications Display : 3-3/4 digits 4000 counts LCD display(s) Update Rate : 3 per second nominal Polarity : Automatic Low Battery : Below approx. 2.4V Operating Temperature : 0 C to 40 Relative Humidity : Maximum relative humidity 80% for temperature up to 31 decreasing linearly to 50% relative humidity at 40 Altitude : Operating below 2000m Storage Temperature : -20... - Page 12 Electrical Specifications Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23 C ± C & less than 75% R.H. True RMS Model 162s ACV & ACA clamp-on accuracies are specified from 5% to 100% of range or otherwise specified. Maximum Crest Factor are as specified below, and with frequency spectrums, besides fundamentals, fall within the meter specified AC bandwidth for non-sinusoidal waveforms.
- Page 13 Ohms RANGE Accuracy 0.8% + 6d 400.0 0.6% + 4d 4.000k, 40.00k, 400.0k 1.0% + 4d 4.000M 2.0% + 4d 40.00M Open Circuit Voltage : 0.4VDC typical Audible Continuity Tester Open Circuit Voltage: 0.4VDC typical Range: 400.0; Accuracy: 1.5% + 6d Audible threshold: between 10...
- Page 14 ACA Current (Clamp-on) RANGE Accuracy 1) 2) 400.0A 15Hz ~ 40Hz 2.0% + 5d 40Hz ~ 200Hz 1.5% + 5d 200Hz ~ 400Hz @ <50A 1.5% + 5d 400Hz ~ 1kHz @ <50A 2.0% + 5d 800A 15Hz ~ 40Hz @ 400A ~ 600A 2.0% + 5d 40Hz ~ 100Hz @ 400A ~ 600A...
- Page 15 -NOTE-...
-
Page 16: Limited Warranty
BRYMEN's warranty does not apply to accessories, fuses, fusible resistors, spark gaps, batteries or any product which, in BRYMEN's opinion, has been misused, altered, neglected, or damaged by accident or abnormal conditions of operation or handling.
