Brymen BM035 User Manual

Brymen BM035 User Manual

Clamp-on multimeter

Advertisement

Quick Links

uvádí:
BRYMEN BM037, BM035, BM033, BM031
Mìøící a dílenské pøístroje / Klešové multimetry
BRIGHT PEOPLE’S CHOICE
USER'S MANUAL
 Eshop:
www.emareg.cz
Email:
shop@emareg.cz

Advertisement

loading
Need help?

Need help?

Do you have a question about the BM035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Brymen BM035

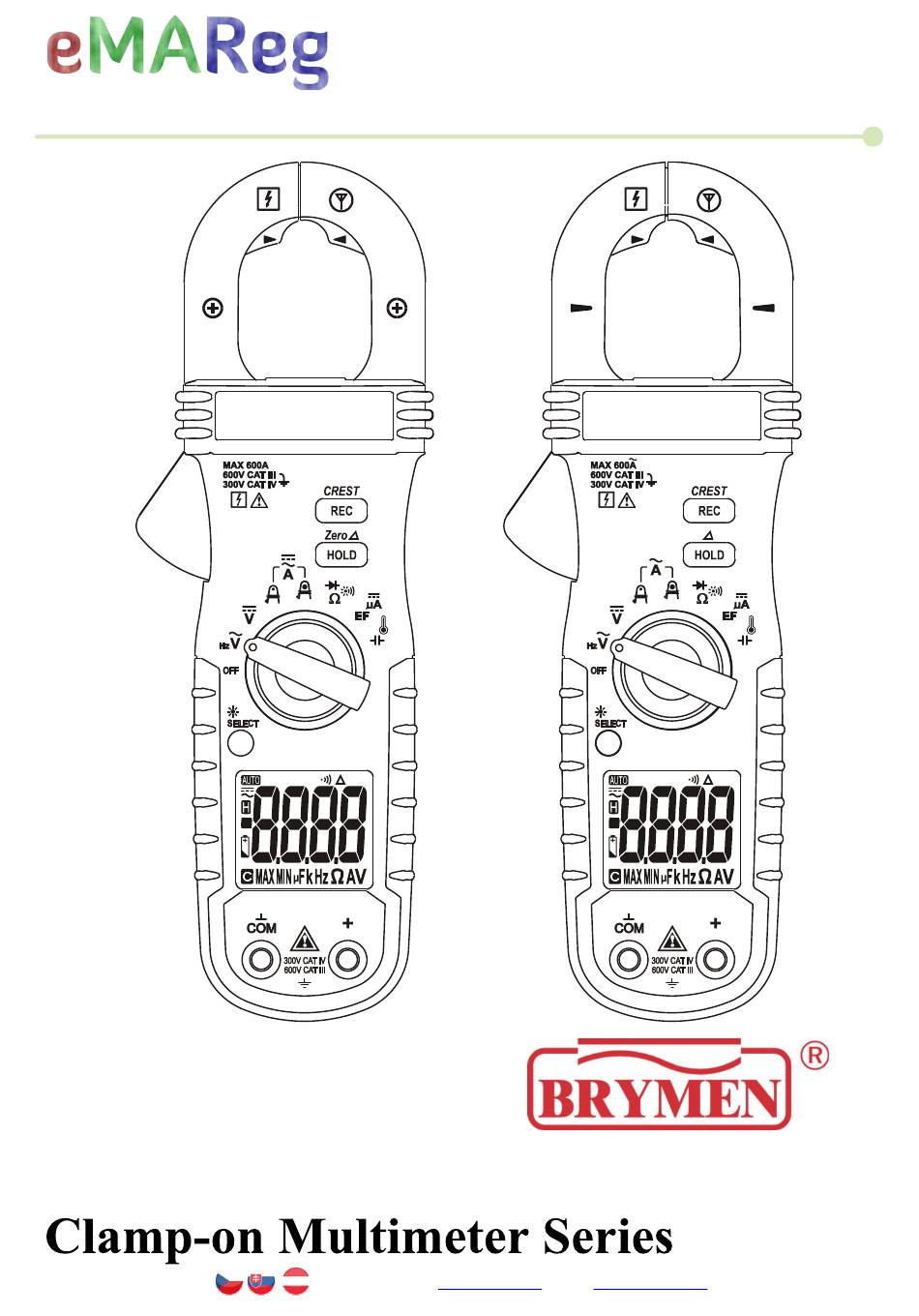

  • Page 1 BRYMEN BM037, BM035, BM033, BM031 Mìøící a dílenské pøístroje / Klešové multimetry BRIGHT PEOPLE’S CHOICE USER'S MANUAL  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 2 The meter meets UL/IEC/EN61010­1 Ed. 3.0, CAN/CSA C22.2 No. 61010 ­1 Ed. 3.0, UL/IEC/EN61010­2­032 Ed. 3.0,  UL/IEC/EN61010­2­033 Ed. 1.0 to  Measurement CAT­III 600V and CAT­IV 300V, AC & DC. The accompanied test probe assembly meets UL/IEC/EN61010 ­031 Ed. 2.0 to the same meter ratings or better. IEC 61010­031 requires exposed conductive test probe tips  to  be 4mm for CAT III & CAT IV ratings. Refer to the category markings on your probe assemblies as well as on the add ­on accessories (like detachable Caps or Alligator Clips), if any, for applicable rating changes. identifies conditions and actions that could result in serious injury or even death to the user. identifies conditions and actions that could cause damage or malfunction in the instrument. This manual contains information and warnings that must be follo wed for operating the meter safely and maintaining the meter in a safe operating condition. If the meter is used in a manner not specified by the manufacturer, the protection provided by the meter may be impaired.
  • Page 3 Marking  ofElectrical and Electronic Equipment (EEE). Do not dispose of this product as unsorted municipal waste. Contact a qualified recycler Caution! Refer to the explanation in this Manual Caution! Possibility of electric shock Earth (Ground) Meter protected throughout by Double Insulation or Reinforced insulation Fuse Direct  Current(DC) Alternating Current (AC) Three­phase Alternating Current Application around and removal from hazardous live conductors is permitted is applicable to test and measuring circuits connected at ­voltage  MAINS  installation.  Examples  are measurements on devices installed before the main fuse or circuit breaker in the building installation. is applicable to test and measuring circuits connected to ­voltage MAINS installation. Examples are measurements on distribution boards (including secondary meters), circuit ­breakers, cables,  bus­bars, junction boxes, swi tches,  socket­outlets, stationary motors in  the fixed installation, and equipment for industrial use.
  • Page 4 1) Antenna area for Non­Contact EF­ Detection 2) Jaw  center  indicator (with  DCA polarity for Models 037 & 035), at where best current accuracy is specified 3)  Push­buttons for special functions & features. 4) Rotary Selector  to  turn  the  power ON/OFF  andselect  a  function 5) 3­5/6 digits 6000  counts numeric LCD display 6) Input Jack for all functions EXCEPT non­invasive Current functions 7) Common ...
  • Page 5 Inputs  are made through the test lead terminals . Defaults  at Function. Press button  momentarilyto  select function. Note: functions are equipped with low ­pass filter, and are capable of dealing  with (Variable Frequency Drives) signals. It also improves reading stability in noisy electrical environments. Inputs are made through the test lead terminals Press the jaw trigger and clamp the jaws around conductor(s) of only one single pole of a circuit for load current measurement s. Make sure the jaws are completely closed, or else it will introduce measurement errors. Enclosi ng conductor(s)  of more  than  one pole of a circuit may result in differential current (like identifying leakage current) measurements. Align  the  conductor(s)  to  the  Jaws  center  indicators  (Regular  or  Eshop: www.emareg.cz Email:...
  • Page 6 AmpTip indicators where applicable) as much as possible to get the best measuring accuracy.  For  removal,  press  the jaw  trigger  and  remove  the  jaws  from  the conductor(s). Adjacent current ­carrying devices such as transformers, motors and conductor wires may  affect  measurement  accuracy.  Keep  the  jaws  away  from  them  as  much  as possible to minimize influence. This  Clamp­on meter series is designed to directly apply around or remove from uninsulated hazardous live conductors. But still, individual protective equipment must be used if hazardous live parts in the installation where measurement is to be carried out co uld be accessible. Do not use the meter to measure currents above the rated frequency (400Hz). C irculating currents may cause the magnetic circuits of the Jaws reach a hazardous temperature.
  • Page 7 Input is made via the clamp jaws where best accuracy is specified at the jaw CENTER area. Defaults at . Press button momentarily to select for Models 035 & 037. Inputs are made through the test lead terminals . Defaults  at Press button momentarily to select the subject functions in sequence. For Models 035 & 031, function  islocated in an independent rotary switch position This function  is having  improved convenience for checking wiring connections and operation of switches.
  • Page 8 zero reading indicates a shorted dio de (defective). An over ­range display indicates an open diode (defective). Reverse the test leads connections (reverse biased) across the diode. The digital display shows over ­range if the diode is good. Any other readings indicate the diode is resistive or shorted (defective). When the display reading drops across 0.850V, the meter alerts a short beep to signal a reasonable forward voltage drop of common diodes.  However,  if  the  reading  further  drops  below  0.100V,  the  meter  gives  a continuous  beep tone together with flashing display backlight to indicate a shorted diode or a complete wire. It is similar to that of function  but , instead, is based on voltage threshold to indicate a complete wire. Using function in a live circuit will produce false results and may damage the meter. In many cases , the suspected component(s) must  be  disconnected  from  the  circuit  to  obtain  an  accurate measurement reading.
  • Page 9 Defaults at high sensitivity If it is too sensitive for your applications, press button  momentarily to  select lower sensitivity . The detected Electric Field strength is indicated as a series of bar ­ graph segments on the display plus variable beep tones. An antenna is located along the top ­right end of the stationary clamp jaw , which detects electric field surrounds energized conductors. It is ideal for tracing live wiring connections, locating wiring breakage and to distin guish between live or earth connections. For more precise indication of live wires, such as distinguishing between Live and Ground connections, use one single probe to test via terminal for  direct  metal  Probe­Contact  EF­Detection to  achieve  the  most distinctive indication.
  • Page 10  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 11 Inputs are made through the test lead terminals / . Defaults  at function. Press button  momentarilytwo times to select function. function is designed especially for HVAC/R flame sensor applications. The 0.1 A resolution is useful for identifying the minute current changes in flame detector applications. Flame signal current check should indicate steady flame signal of at least 2 A for a rectification type, or 1.5 A for an ultraviolet type (8 A for self checking systems). If a flame signal current with inadequate strength or fluctuation beyond 10%, check the following to avoid the risk of unwanted flame relaydropout : For gas or oil flames (Minipeeper): Low supply voltage Detector location Defective detector wiring Dirty viewing windows Faulty Minipeeper For oil flames (Photocell):  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 12 Detector location & wiring Smoky flame or poorly adjusted air shutter Faulty Photocell Temperature  over  165 F  (74 C) at photocell For gas flames (Flame Rod): Ignition interference (A flame signal current difference with the ignition both on and off greater than 0.5 A indicates the presence of ignition interference) Insufficient ground (must be at least 4 times the detector area) Flame lifting off burner head (ground), or not continuously in contact with the flame  rod Temperature in excess of 600 F  (316 C) at the flame electrode insulator causing short to ground. Inputs are made through the test lead terminals / . Defaults at Press button  momentarily  to select (Celsius) and (Fahrenheit) in sequence ( selection can be left out as factory calibration default for countries that only accept metric units).
  • Page 13  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 14 feature freezes the display for later view. LCD turns on. Press the button  momentarily  totoggle the feature. mode allows the user to offset the meter consecutive measurements with  the main  display displaying reading as the reference value. LCD turns  on. Press  the ) button for one second or  moreto toggle mode. When functions ( Models 035 & 037 only), however, mode instead will be activated. mode (Models 035 & 037 only) is a feature to temporarily offset residue readings ...
  • Page 15 mode turns the meter off automatically to extend battery life after idling 32 minutes of no specified activities, where applicable, below: 1) Rotary switch or push button operations 2) Significant measuring readings of above8.5% of ranges 3) Non­over­range readings for Resistance, Continuity or Diode function 4) Non­zero readings for Hz function In other words, the meter will i ntelligently reset the mode when it is under normal measurements. To  wake  up  the  meter  from ,  press  the button momentarily and release, or turn the rotary switch OFF and then back on. Always turn the rotary switch to the OFF position when the meter is not in use. Press and hold the button while powering on the meter can disable ...
  • Page 16 If the instrument fails to operate, check batteries and test leads etc., and replace as Refer  to  the  LIMITED  WARRANTY  section  for  obtaining calibration,  repairing  or warranty service. Accuracy is specified for a period of one year after calibration. Periodic calibration at intervals of one year is recommended to maintain meter accuracy. Periodically wipe the meter and the test probe assembly with a damp cloth and mild detergent. Do not use abrasives or solvents. Allo w to dry completely before operating. If the meter is not to be used for periods of longer than 60 days, remove the batteries and  storethem separately The meter uses standard 1.5V AAA Size (IEC R03) battery X 2 Loosen the 2 captive screws from the bottom case. Lift the bottom case. Replace the batteries.  Replacethe bottom case. Re­fasten the screws.  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 17 3­5/6 digits 6000 counts Automatic 5 per second nominal 0 C  to40 C Maximum  relative  humidity  80%  for  temperature  up  to  31 C decreasing linearly to 50% relative humidity at 40 C ­20 C to 60 C, < 80% R.H. (with battery removed) Operating below 2000m nominal 0.1 x (specified accuracy)/ C @(0 C ­­ 18 C  or 28 C ­­ 40 C), or otherwise specified True RMS Certified per IEC / UL / CSA_C22.2_# / EN standards: 61010­1 Ed.
  • Page 18 202g for Models 037 & 035; 158g for Models 033 & 031 26mm max Test lead set, User's manual, Soft carrying pouch, Bkp60 banana plug thermocouple (Models 037 & 033 only), type­K BKB32 banana plug to type­K socket plug adaptor (Models 037 & 033 only) AmpTip low­current range; MAX/MIN Recording mode; MAX/MIN Crest  (Peak­Hold)  mode; Relative­Zero mode; Display  Hold; EF­Detection  (NCV); BeepLit Feature Accuracy is (% reading digits + number of digits) o r otherwise specified, at 23 C 5 C. Maximum Crest Factor < 2 : 1 at full scale & < 4 : 1 at half scale or otherwise specified, and ...
  • Page 19 RANGE Accuracy 600.0 , 6.000k (All models) 1.0% + 5d 60.00k , 600.0k , 6000k (Models 037 & 033 only) Open  Circuit  Voltage:1.0VDC typical RANGE Accuracy 2.0% + 4d 200.0 F, 2500 F Accuracies  withfilm capacitor or better RANGE Accuracy 3.000V 1.5%  +5d Test Current: 0.3mA typically Open Circuit Voltage: <3.5VDC typically Short Beep  Alert  Threshold:Drop across 0.850V : < 0.100V Audible Indication: Beep sound Visible Indication: LCD Backlight...
  • Page 20 RANGE Accuracy 1) 2) ­40.0 C ~ 99.9 1.0% + 1.0 C ~ 400 1.0% + 1 ­40.0 F  ~211.8 1.0% + 2.0 F ~752 1.0% + 2 Accuracies assume meter interior has the same temperature of the ambient (isothermal stage) for a correct junction voltage compensation. Allowthe  meter  and the type­K probe set to reach isothermal stage for a significant change of ambient temperature. It can take up to an hour for changes > 5°C. Type­K thermocouple range & accuracy not included RANGE Accuracy 50Hz  ~60Hz 60.00A 1.0% + 5d Induced error from adjacent current­carrying conductor: <0.01A/A for Models 037, 035 <0.06A/A for Models 033, 031...
  • Page 21 RANGE Accuracy 1) 2) 50Hz  ~100Hz 600.0A 1.5% + 5d 100Hz  ~400Hz 600.0A 2.0% + 5d Induced error from adjacent current­carrying conductor: <0.1A/A for Models 037, 035 <0.6A/A for Models 033, 031 For Models 033, 031, specified accuracy is for measurements made at the jaw center. When the conductor is not positioned at the jaw center,add  2%to  specified accuracy for position errors RANGE Accuracy 1) 2) 600.0A 2.0% + 5d Induced error from adjacent current­carrying conductor: <0.1A/A Specified with DC­Zero mode applied to offset the non­zero residual readings, if any Function Sensitivity (Sine RMS) Range...
  • Page 22 EF­H (Hi Sensitivity) EF­L (Lo Sensitivity) Bar­Graph Indication Typical Voltage (Tolerance) ­ 10V (2V ~ 20V) 40V (10V ~ 70V) ­ ­ 20V (4V ~ 40V) 80V (20V ~ 140V) ­ ­ ­ 40V (8V ~ 70V) 160V (40V ~ 280V) ­ ­ ­ ­ 80V (16V ~ 140V) 320V (80V ~ 560V) ­ ­ ­ ­ ­ 160V (>40V) 500V (>160V) Indication: Bar­graph segments & audible beep tones proportional to the field strength Detection Frequency: 50/60Hz Detection  Antenna:Inside the top side of the stationary jaw Probe­Contact EF­Detection: For more precise indication of live wires, such as distinguishing between live and ground connections, use one single probeto test  via terminal COM for directmetal Probe­Contact EF­Detection to achieve the most distinctive indication.
  • Page 23 NOTE  Eshop: www.emareg.cz Email: shop@emareg.cz...
  • Page 24 BRYMEN's  opinion,  has  been  misused,  altered,  neglected,  or damaged by accident or abnormal conditions of operation or handling. To obtain warranty service, contact your nearest BRYMEN authorized agent or send the  product, with proof of purchase and description of the difficulty, postage and insurance prepaid, to BRYMEN TECHNOLOGY CORPORATION. BRYMEN assumes no  risk  for  damage  in  transit.    BRYMEN  will,  at  its  option,  repair  or  replace  the defective product free of charge.  However, if BRYMEN determines that the failure was caused  by  misused,  altered,  neglected,  or  damaged  by  accident  or  abnormal conditions of operation or handling, you will be billed for the repair. THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ALL OTHE R WARRANTIES, EXPRESSED ...

This manual is also suitable for:

Bm031Bm037Bm033
